The TPS1065BU-20 is a SMC hose, belonging to the TPS series and made from flexible polyolefin resin. This SMC air hose for pneumatic tubing and automation components offers excellent flexibility and chemical resistance, making it suitable for conveying various media such as air, nitrogen, and water. It is widely used in industrial automation, laboratory equipment, and food processing applications.
Product Specifications
Dimensions:
Outer Diameter (O.D.): 10 mm
Inner Diameter (I.D.): 6.5 mm
Length: 20 meters
Working Pressure:
Maximum working pressure: 0.7 MPa at 20°C
Pressure rating decreases with increasing temperature (e.g., 0.33 MPa at 80°C)
Temperature Range:
Operating temperature: -20°C to +80°C (for water transfer: +5°C to +80°C)
Material and Compliance:
Material: Flexible polyolefin resin
Compliant with FDA standards for food-grade applications
Product Features
Flexibility:
With a minimum bend radius of 30 mm, this SMC hose for pneumatic tubing is designed for complex layouts.
Transparency:

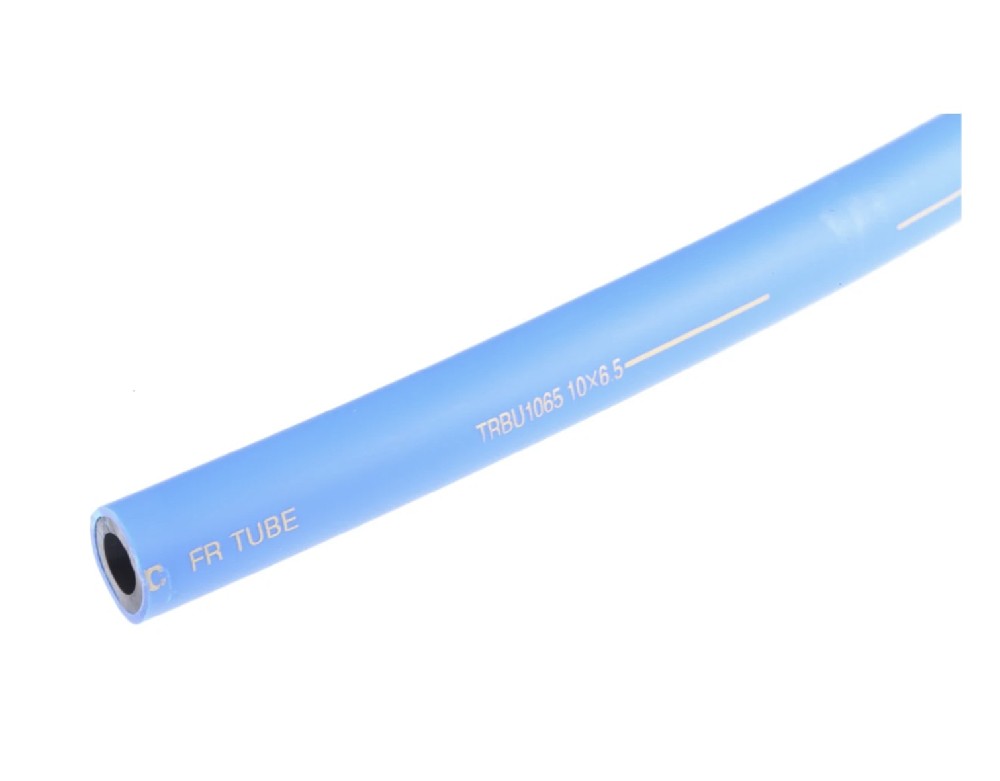

The SMC air hose is semi-transparent blue, allowing for easy observation of fluid conditions.
Chemical Resistance:
Suitable for conveying various media, including air, nitrogen, water, and deionized water.
Cleanliness:
The smooth inner surface meets high cleanliness requirements for applications.
Application Scenarios
The TPS1065BU-20 is suitable for the following fields:
Industrial Automation:
Ideal for conveying compressed air, nitrogen, and other gases.
Food Processing:
Compliant with FDA standards, it is suitable for transferring food-grade liquids.
Laboratory Equipment:
Suitable for conveying water, solvents, and other laboratory fluids.
Medical Equipment:
Ideal for applications requiring high levels of hygiene.
Installation and Maintenance Instructions
Installation Environment:
Choose a dust-free environment free of corrosive gases and avoid direct sunlight.
Minimum Bend Radius:
Ensure the SMC hose's bend radius is no less than 30 mm during installation.
Connection Method:
We recommend using specialized fittings to ensure secure connections.
Regular Inspection:
Check the SMC air hose for damage, cracks, or deformation and ensure connections are secure.
Cleaning and Maintenance:
Thoroughly blow out or clean the SMC hose before use to prevent internal contamination.
Avoid Over-Pressurization:
Do not use the SMC hose beyond its rated pressure or temperature limits.
Precautions
Temperature and Pressure Limits:
Strictly adhere to temperature and pressure limits to prevent hose damage due to overpressure or overheating.
Media Compatibility:
Ensure the conveyed media are compatible with the hose material to avoid chemical reactions.
Safe Operation:
Ensure the SMC hose is depressurized during installation and maintenance.
Frequently Asked Questions and Answers
How is the chemical resistance of TPS1065BU-20?
Made from flexible polyolefin resin, the TPS1065BU-20 offers excellent chemical resistance, suitable for conveying air, nitrogen, water, and deionized water. It is compatible with most common media but is not suitable for mineral oil-based media. Conduct a compatibility assessment based on the specific media before use.
What is the maximum operating temperature?
The maximum operating temperature of TPS1065BU-20 is +80°C. The maximum working pressure decreases with increasing temperature (e.g., 0.33 MPa at 80°C). Select the appropriate temperature and pressure range based on the specific application conditions.
How to choose the right fittings for TPS1065BU-20?
We recommend using specialized fittings for TPS1065BU-20 to ensure secure connections. When selecting fittings, choose materials compatible with the conveyed media to prevent leaks. Ensure connections are tight and regularly inspect connection points.
What is the minimum bend radius of TPS1065BU-20?
The minimum bend radius of TPS1065BU-20 is 30 mm. Ensure the SMC hose's bend radius is no less than this value during installation to prevent deformation or damage.
Is it suitable for the food processing industry?
Yes, TPS1065BU-20 is FDA-compliant and suitable for transferring liquids in the food processing industry. Its material and design meet food-grade application requirements. Ensure the SMC hose is clean and hygienic to prevent contamination.
How to clean TPS1065BU-20 hoses?
Before installation, blow out the SMC hose with compressed air to remove internal impurities. For liquid transfer hoses, rinse with clean water or a specialized cleaner. Ensure the hose is dry after cleaning to prevent microbial growth from residual liquids.
What is the lifespan of TPS1065BU-20?
The lifespan of TPS1065BU-20 depends on its operating environment and maintenance. Under normal conditions, its flexibility and chemical resistance allow for long-term stable operation. Regular inspections and maintenance can extend the pneumatic tubing and automation components' service life.
Is it suitable for conveying compressed air?
Yes, TPS1065BU-20 is suitable for conveying compressed air. Its maximum working pressure is 0.7 MPa at 20°C, meeting the requirements of most compressed air systems. Ensure connections are secure and avoid damage from pressure fluctuations.
How transparent is TPS1065BU-20?
TPS1065BU-20 is semi-transparent blue, allowing for easy observation of fluid conditions within the hose. When selecting a hose, choose between transparent or opaque materials based on your specific needs.
What is the price?
The price of TPS1065BU-20 varies depending on the supplier and purchase quantity. For example, one supplier quotes 9,740 yen per roll, while another quotes 77.68 euros per roll. We recommend contacting your local supplier for the latest pricing information.
