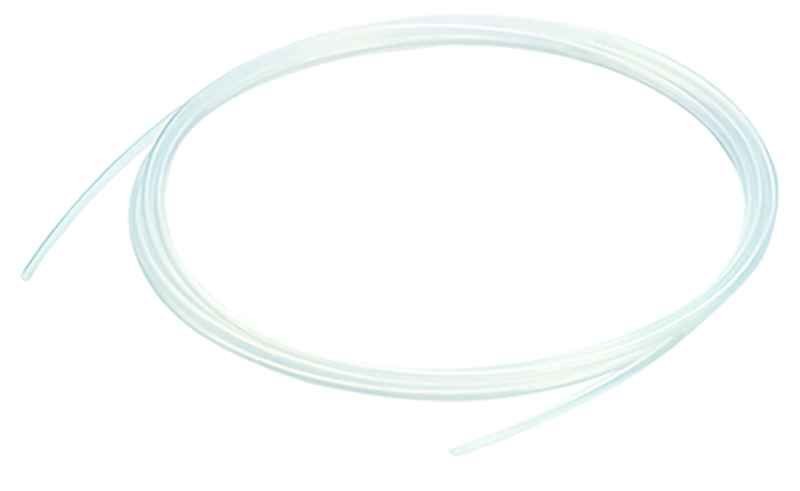

The TH0425N-20 is a fluorinated ethylene propylene (FEP) SMC pneumatic hose, also a pneumatics, part of the TH/TIH series. This product features a semi-transparent, colored material with excellent chemical resistance, high-temperature performance, and good flexibility. It is widely used in industries such as food, medical, semiconductor, automotive, and general pneumatic systems.
Product Specifications
Outer Diameter: 4 mm
Inner Diameter: 2.5 mm
Length: 20 meters per reel
Minimum Bend Radius: 20 mm
Maximum Operating Pressure: 1.7 MPa (at 20°C)
Operating Temperature Range:
Air, Inert Gases: -20°C to 200°C
Water: 0°C to 100°C (non-freezing)
Material: FEP (Fluorinated Ethylene Propylene)
Color: Semi-transparent
Product Features
High-Temperature and Chemical Resistance: Capable of operating at up to 200°C, making it suitable for various chemical environments.
Food Hygiene Compliance: Meets FDA §177-1550 solubility requirements, suitable for food and medical applications.
High Flexibility: With a minimum bend radius of 20 mm, it is easy to install and route.
High Transparency: The semi-transparent material allows easy observation of fluid status.
Application Scenarios
Food Industry: For conveying food-grade liquids or gases.
Medical Equipment: Suitable for pneumatic and hydraulic systems in medical devices.
Semiconductor Manufacturing: For conveying high-purity gases.
Automotive Manufacturing: Used for pneumatic tubing and fittings on automotive production lines.
General Pneumatic Systems: Suitable for various industrial automation equipment.
Installation and Usage Instructions
Installation Environment
Ensure the installation environment is free of corrosive gases, and avoid high temperatures, high humidity, or strong electromagnetic interference.
Do not install in areas where the tubing may vibrate or shake.
Installation and Wiring
Ensure the SMC pneumatic hose's bend radius is greater than the minimum bend radius (20 mm) to avoid kinking.
Use appropriate pneumatic tubing and fittings, such as FEP tube fittings or push-in fittings.
Maintenance and Inspection
Regularly inspect the tubing for signs of wear or aging, especially when used at high temperatures or over long periods.
Replace the tubing immediately if any leaks or damage are detected.
Precautions
Pressure and Temperature Limits
Do not exceed the maximum operating pressure and temperature. In high-temperature conditions, reduce the operating pressure to ensure safety.
For liquid media, avoid tube rupture due to pressure fluctuations.
Media Compatibility
Ensure the SMC pneumatic hose is compatible with the conveyed media; avoid using highly corrosive chemicals.
Regular Maintenance
Regularly inspect connection points and tighten or replace them as necessary.
Frequently Asked Questions (FAQ)
1、What is the maximum operating temperature?
The maximum operating temperature is 200°C for air or inert gases, and 0°C to 100°C for water.
In high-temperature conditions, reduce the operating pressure to ensure safety.
Long-term high-temperature use may cause material aging; regular inspection and replacement are recommended.
2、Is TH0425N-20 compliant with food hygiene standards?
Yes, the product meets food hygiene regulations and has passed FDA §177-1550 solubility tests, making it suitable for food and medical applications.
Ensure the conveyed media meet food-grade requirements.
3、How flexible is TH0425N-20?
The minimum bend radius is 20 mm, indicating good flexibility.
Ensure the bend radius is greater than the minimum during installation to avoid kinking.
4、What is the lifespan?
Lifespan depends on the operating environment and media. High temperature or pressure may accelerate material aging.
Regularly inspect for wear and replace the tubing if any abnormalities are detected.
5、Is it suitable for the semiconductor industry?
Yes, it is suitable for conveying high-purity gases in semiconductor manufacturing due to its excellent chemical resistance and transparency.
Ensure compatibility with the conveyed media and avoid contamination.
6、How to choose the right fittings for TH0425N-20?
Use FEP tube fittings or push-in fittings to ensure reliable connections and sealing.
For high-temperature or high-pressure conditions, select fittings that meet pressure and temperature requirements.
7、Are there other color options for TH0425N-20?
The product is semi-transparent, and no other color options are currently available.
8、How to prevent tubing leakage?
Regularly inspect connection points to ensure they are secure.
Avoid using the SMC pneumatic hose in areas subject to vibration.
Replace the tubing immediately if any leakage is detected.
9、Is it suitable for water conveyance?
Yes, it is suitable for water conveyance within the temperature range of 0°C to 100°C (non-freezing).
Be cautious of pressure fluctuations that may cause tube rupture.
10、What is the price?
Prices vary depending on the supplier and purchase quantity. For example, it is priced at $63.63 per reel on the Misumi website and around 5054 JPY per reel in the Japanese market.
