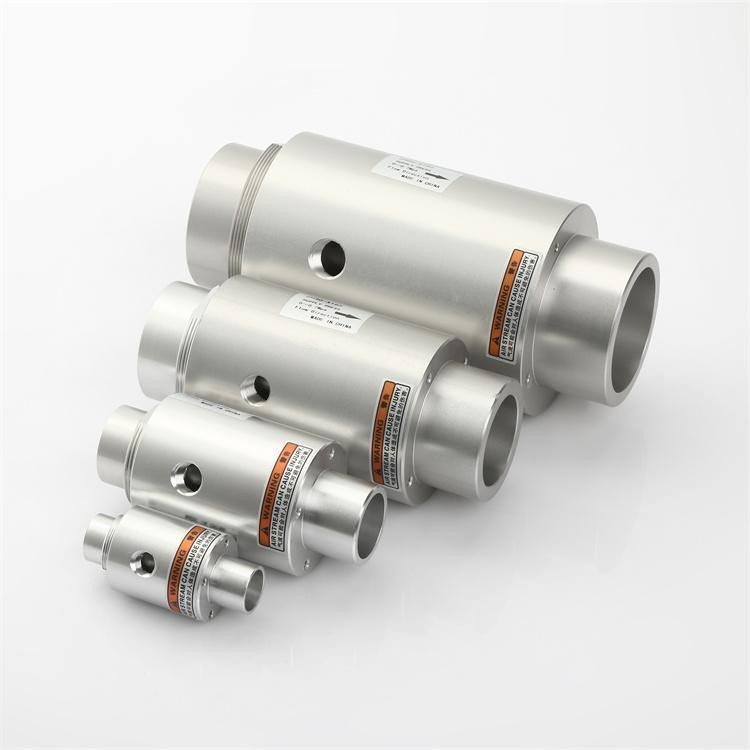

The SMC ZH10-B-X185 is a high-flow smc pneumatic vacuum generator valve from the ZH series. By supplying compressed air, it can achieve both high-flow blowing and vacuum suction, making it widely applicable in industrial automation and material handling scenarios.The SMC vacuum generator valve ZH10-B-X185 is designed for high-efficiency applications, offering both powerful blowing and suction capabilities.As a pneumatic vacuum generator, the ZH10-B-X185 is ideal for various industrial processes requiring reliable vacuum and blowing functions.
Product Specifications
Model: ZH10-B-X185
Series: ZH Series
Passage Diameter: 13 mm
Body Material: Aluminum alloy
Bracket: With bracket
Dust Bag: No dust bag
Maximum Vacuum: Up to -88 kPa
Blowing Flow Rate: Up to 4 times the supply air flow
Vacuum Flow Rate: Up to 3 times the supply air flow
Operating Pressure Range: 0.01~0.8 MPa
Usage Pressure: 0~0.7 MPa
Sealing Material: NBR
Product Features
High-Flow Design: The blowing flow rate can reach 4 times the supply air flow, while the vacuum flow rate can reach 3 times.
Large Passage Diameter: The large diameter allows the intake of chips, dust, and other impurities.
Maintenance-Free Design: No regular maintenance required, reducing operating costs.
Flexible Installation: Equipped with a bracket for easy integration into automation systems.
Diverse Applications: Suitable for both blowing and vacuum suction applications.
Application Scenarios
The ZH10-B-X185 is primarily used in the following fields:
Blowing Function:
Removing water droplets and blowing away chips.
Suitable for chip removal in machining processes.
Vacuum Suction Function:
Smoke extraction in welding systems.
Handling of granular and powdered materials.
Powder recovery in resin part marking devices.
Industrial Automation:
Robot handling and material transfer.
Packaging and logistics sorting.
Instructions for Use
Installation:
Ensure the installation environment is free from vibration and shock, and avoid direct sunlight.
Use appropriate tools to ensure a secure connection.
The bracket facilitates easy installation and maintenance.
Commissioning and Operation:
Adjust the supply air pressure according to actual needs to achieve optimal blowing or vacuum performance.
Regularly inspect the exhaust port to prevent clogging by impurities.
Maintenance and Care:
Regularly clean the device surface to prevent dust and oil buildup.
Check the exhaust port to ensure no foreign objects are blocking it.
Precautions
Environmental Requirements:
Avoid using in environments filled with corrosive gases, chemicals, or water vapor.
Do not direct the exhaust port towards people or components.
Safety Operation:
Disconnect the air supply before performing maintenance or disassembly.
Follow the safety guidelines in the official SMC product manual.
Frequently Asked Questions and Answers
What is the maximum vacuum flow rate of the ZH10-B-X185?
The vacuum flow rate can reach up to 3 times the supply air flow. This high performance meets the needs of most industrial applications.
What is the blowing flow rate of the ZH10-B-X185?
The blowing flow rate can reach up to 4 times the supply air flow. This design allows for rapid removal of water droplets, chips, and other impurities, making it suitable for various blowing applications.
Is the ZH10-B-X185 maintenance-free?
The ZH10-B-X185 is designed to be maintenance-free. However, it is recommended to regularly inspect the exhaust port to prevent clogging by impurities.
What is the operating pressure range?
The operating pressure range is 0.01~0.8 MPa, with a usage pressure of 0~0.7 MPa. Adjust the supply pressure according to actual application needs.
Does the ZH10-B-X185 come with a bracket?
Yes, the ZH10-B-X185 is equipped with a bracket for easy integration into automation systems.
What is the body material?
The body material is aluminum alloy, which provides good durability and corrosion resistance.
What are the applications ?
It is widely used in blowing and vacuum suction scenarios, such as removing water droplets, blowing away chips, smoke extraction in welding systems, and handling granular and powdered materials.
What is the maximum vacuum level?
The maximum vacuum level can reach -88 kPa, meeting the vacuum needs of most industrial applications.
What is the passage diameter?
The passage diameter is 13 mm. This large diameter allows the intake of chips and dust.
Does the ZH10-B-X185 come with a dust bag?
No, the ZH10-B-X185 does not come with a dust bag. However, its design effectively prevents dust and impurities from entering the smc pneumatic vacuum generator valve.
