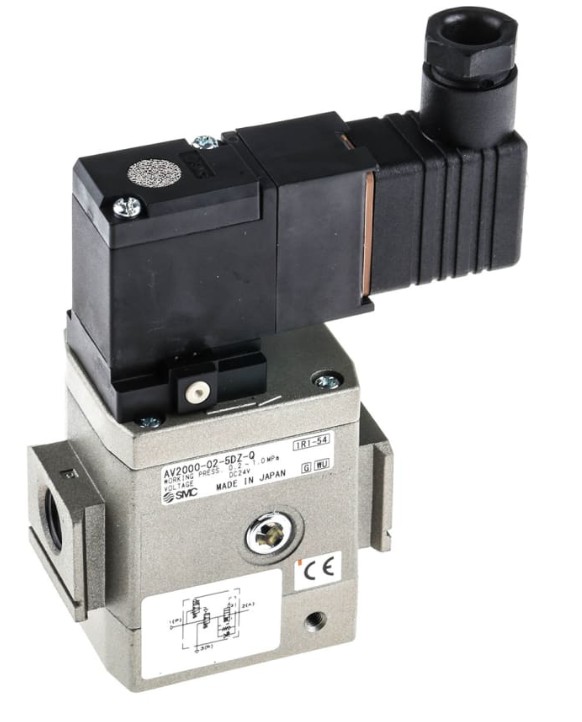

SMC Pneumatic AV2000-02-5DZ-Q is a pneumatic air valve designed for smooth startup and precise control in automated machinery, medical equipment, and laboratory devices. As an air actuated solenoid valve, it offers low-speed air supply and rapid exhaust, reducing energy consumption and optimizing the startup process while minimizing system shock. The smcpneumatic technology behind this valve ensures a reliable and efficient pneumatic control system.
Product Specifications
Maximum operating pressure: 1 MPa (operating pressure), 1.5 MPa (proof pressure).
Operating pressure range: 0.2 to 1 MPa.
Port size: G 1/4 inch female inlet.
Coil rated voltage: DC 24V.
Flow characteristics: High flow design for efficient air supply.
Operating temperature range: 0 to 60°C.
Response time: Less than 50 milliseconds.
Maximum operating frequency: 20 cycles per minute.
Product Features
Soft-start function: Provides low-speed air supply to reduce system shock during startup.
Rapid exhaust: Ensures quick exhaust when air supply is cut off, improving system efficiency.
Built-in silencer: Reduces noise and saves installation space.
Overvoltage protection: Equipped with an overvoltage protection circuit to enhance system safety.
High flow design: Increases system air supply efficiency.
Applications
The pneumatic air valve is ideal for the following applications:
Automated machinery: Provides smooth pneumatic control and reduces shock during equipment startup.
Medical equipment: Offers precise pressure control to ensure stable and safe operation.
Laboratory equipment: Provides reliable pneumatic support in environments requiring quiet and precise control.
Pneumatic control systems: Suitable for systems requiring rapid exhaust and efficient air supply.
Installation and Maintenance
Installation Environment:
Choose a dust-free, non-corrosive gas environment with minimal electromagnetic interference to ensure proper heat dissipation.
Wiring Requirements:
Follow the product manual for wiring to ensure correct connections of power and signal lines.
Grounding Protection:
Ensure proper grounding of the device in accordance with relevant electrical safety standards.
Maintenance:
Regularly inspect the pneumatic air valve for damage and clean dust from fans and heat sinks. Perform functional and leakage tests after installation and maintenance.
Safety Operations:
Avoid contact with live parts during operation and disconnect power before maintenance.
Precautions
Environmental Conditions: Avoid using in high-temperature, high-humidity, or strong electromagnetic interference environments.
Low-frequency Use: To prevent operational issues, perform a switching action at least once every 30 days.
Pressure Maintenance: Due to slight internal leakage, this air actuated solenoid valve is not suitable for long-term pressure holding applications.
Safety Measures: Ensure the device is fully powered off and residual pressure is released before maintenance.
Common Questions and Answers (FAQ)
How to maintain the SMC AV2000-02-5DZ-Q?
Regular maintenance of this smcpneumatic device includes inspecting the exterior, cleaning heat sinks and fans, and testing device functionality. It is important to follow the maintenance schedule outlined in the product manual to ensure long-term performance.
What is the maximum operating frequency of AV2000-02-5DZ-Q?
The maximum operating frequency for the smcpneumatic valve is 20 cycles per minute. To prevent operational issues, it is recommended to perform a switching action at least once every 30 days to keep the valve functioning properly.
Is AV2000-02-5DZ-Q suitable for medical equipment?
Yes, this pneumatic air valve is suitable for medical equipment that requires precise pressure control. It provides stable pneumatic support with built-in overvoltage protection and a silencer for safety and quiet operation.
What is the operating temperature range of the valve?
The operating temperature range of this pneumatic air valve is 0 to 60°C. It is recommended to avoid using the valve in environments with high temperatures, high humidity, or corrosive gases, as these could negatively affect its performance.
What is the response time of the valve?
The response time of the air actuated solenoid valve is less than 50 milliseconds, making it suitable for high-precision automated systems and rapid operation in pneumatic control systems.
Is the valve suitable for long-term pressure holding?
No, due to slight internal leakage, this smcpneumatic valve is not suitable for long-term pressure holding applications. It is best suited for short cycles and intermittent pressure control.
What are the installation considerations for the valve?
When installing the pneumatic air valve, it is essential to choose a dust-free, non-corrosive gas environment with minimal electromagnetic interference to ensure proper heat dissipation and reliable operation.
How does the overvoltage protection function work?
The valve has an integrated overvoltage protection circuit, designed to prevent damage to the system caused by voltage fluctuations. This feature is part of the advanced smcpneumatic technology that enhances system reliability.
What are the environmental conditions to avoid while using the valve?
This pneumatic air valve should not be used in high-temperature, high-humidity, or environments with strong electromagnetic interference. These conditions can affect the valve’s performance and durability.
Why is low-frequency use recommended for this valve?
To avoid operational issues, it is advised to perform a switching action at least once every 30 days. This practice helps to keep the air actuated solenoid valve in optimal working condition, reducing wear and tear over time.
