The SY5000-27-1F-Q is a high-performance pilot-operated pneumatic solenoid valve parts base plate component introduced by SMC make solenoid valve, belonging to the SY5000 series. Designed for pneumatic systems with medium to high flow requirements, this product features low power consumption, high reliability, and a compact design, making it widely used in industrial automation applications as pneumatic fittings.

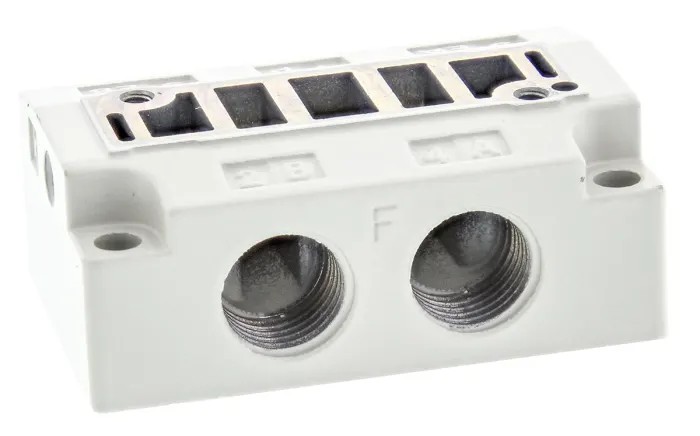

SY5000-27-1F-Q SMC Make Pneumatic Solenoid Valve Parts And Fittings

Product Specifications

Model: SY5000-27-1F-Q

Series: SY5000

Function: Base plate component for connecting and integrating pneumatic solenoid valve parts.

Material: Die-cast aluminum, with strong durability.

Power Consumption: 0.1W (with energy-saving circuit), 0.35W (standard).

Operating Pressure Range: 0.15~0.7 MPa.

Operating Temperature Range: 0~50°C.

Interface Type: G1/4 thread.

Installation Method: Plug-in board installation, compatible with multiple base plate models.

Dimensions: 60 x 35 x 25 mm.

Product Features

High Flow and Energy-saving Design: The SY5000 series pneumatic solenoid valve parts,also as pneumatic fittings, achieve energy and space optimization by improving flow design while reducing valve size.

Long Service Life: Metal seal version can last up to 200 million cycles, while elastomer seal version can reach 70 million cycles.

Strong Compatibility: Supports multiple plug-in board models (e.g., SS5Y3, SS5Y5, SS5Y7) for easy integration and expansion.

Protection Rating: Supports IP40 (metal base plate) and IP67 (plug-in base plate) for harsh environments.

Flexible Installation: Top or bottom port connections are available to reduce installation space.

Application Scenarios

The SY5000-27-1F-Q as pneumatic fittings is suitable for a variety of industrial automation scenarios, including but not limited to:

Robotics: Controlling the pneumatic systems of robotic arms.

Conveying Systems: Achieving efficient pneumatic control in logistics and production lines.

Cleanroom Environments: Suitable for applications requiring high sealing performance in cleanrooms.

Pressure Control: Providing stable pneumatic support in systems that require precise pressure control.

Usage Instructions

Installation:

Ensure the installation environment is free of vibrations and impacts, and avoid direct sunlight.

Use appropriate tools to install the base plate, ensuring secure connections.

Select the base plate model and installation method according to system requirements.

Commissioning and Operation:

After installation, perform manual operation tests to ensure the solenoid valve responds normally.

Adjust the operating parameters of the solenoid valve according to application requirements.

Maintenance and Care:

Regularly check the tightness and sealing of the base plate connections.

Clean the surface of the solenoid valve to prevent dust and oil buildup.

Periodically check the response time and operating frequency of the solenoid valve to ensure it meets performance requirements.

Precautions

Environmental Requirements:

Avoid using in environments filled with corrosive gases, chemicals, or water vapor.

Do not use in environments with flammable or explosive gases.

Electrical Safety:

Ensure proper grounding of the SMC make solenoid valve to prevent electrical faults.

Disconnect power before performing maintenance or disassembly.

Maintenance and Inspection:

Regularly check the sealing and response time of the SMC make solenoid valve. Implement cooling measures when operating continuously or installed in control cabinets.

Frequently Asked Questions (FAQ)

What is the power consumption of the SY5000-27-1F-Q?

The power consumption is 0.1W (with energy-saving circuit) or 0.35W (standard). The low power design helps save energy.

What is the service life?

The metal seal version can last up to 200 million cycles, while the elastomer seal version can reach 70 million cycles.

Does the SY5000-27-1F-Q support multiple installation methods?

Yes, it supports top or bottom port connections to reduce installation space.

What is the operating temperature range?

The operating temperature range is 0~50°C.

What type of interface does the SY5000-27-1F-Q support?

It supports G1/4 thread interface.

Does the SY5000-27-1F-Q support high protection ratings?

Yes, it supports IP40 (metal base plate) and IP67 (plug-in base plate) for harsh environments.

What are the dimensions?

The dimensions are 60 x 35 x 25 mm.

Does the SY5000-27-1F-Q support manual operation?

Yes, it supports non-locking push-to-operate manual function for easy commissioning and maintenance.

What is the operating pressure range?

The operating pressure range is 0.15~0.7 MPa.

What are the main application scenarios?

It is suitable for robotics, conveying systems, cleanroom environments, and pressure control applications.
