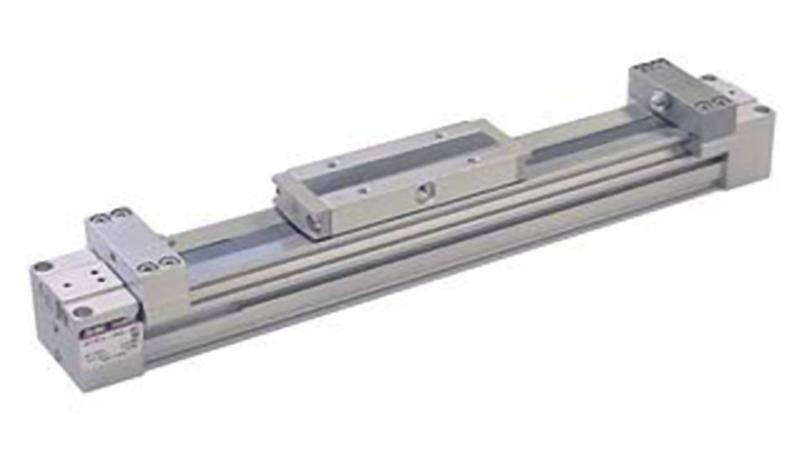

The MY1B32TFG-600Z is a double-acting rodless cylinder produced by SMC, belonging to the MY1B-Z series. This product features a mechanically jointed rodless cylinder, equipped with air cushioning and a magnetic piston, offering a simple, compact, and reliable motion control solution. It is widely used in the field of industrial automation, such as assembly automation, packaging lines, and electronics manufacturing, providing high-precision positioning and material transfer.
Product Specifications:
Type of Motion: Double-acting
Bore Diameter: 32mm
Stroke: 600mm
Maximum Operating Pressure: 0.8MPa
Absolute Maximum Pressure: 1.2MPa
Force at 7bar: 563N
Cushion Type: Air cushion
Port Connection: Rc 1/8
Dimensions: 880×64×68mm
Weight: 2.7kg
Product Features:
Compact Design: Compared to previous models, the weight of this rodless cylinder is reduced by up to 17%, making installation more flexible.
Versatile Mounting and Connection: Supports automatic switch installation at any position, and pipes can be connected from four directions.
Easy Adjustment: The cushion needle can be easily adjusted using a hex wrench, and the side support design prevents cylinder tube deflection during long strokes.
New Dustproof Sealing: Fixed by magnetic force, enhancing sealing performance and service life.
Floating Bracket Connection: Facilitates easy installation and maintenance.
Applications:
The MY1B32TFG-600Z rodless actuator is suitable for a variety of industrial automation scenarios, including but not limited to:
Assembly Automation: For part positioning and transfer.
Packaging Lines: Achieving rapid material handling and packaging.
Electronics Manufacturing: Providing high-precision positioning in the assembly and inspection of electronic components.
Medical Device Assembly: Meeting high-precision and repeatability requirements.
Installation Instructions:
Installation Environment: When install the smc double acting cylinder, ensure a dust-free, corrosion-free environment, and avoid strong electromagnetic interference. The cylinder should be installed vertically or horizontally, depending on the application.
Piping and Connection: Use appropriate piping methods to ensure a stable air supply. Follow the manual of the mechanically jointed rodless cylinder for port connections, paying attention to sealing.
Parameter Settings: Adjust cushion pressure and stroke according to application requirements. Regularly check the rodless cylinder's sealing and cushion needle adjustment.
Maintenance and Inspection: Periodically clean the cylinder surface and cushion needle to remove impurities. Check the floating bracket connection for firmness and adjust if necessary.
Precautions:
Environmental Requirements: Avoid using the rodless cylinder in high-temperature, high-humidity, or strong electromagnetic interference environments.
Pressure Control: Ensure operating pressure does not exceed the maximum allowable value (0.8MPa) to prevent cylinder damage.
Safe Operation: Avoid contact with moving parts during operation to ensure operator safety.
Frequently Asked Questions and Answers:
What is the maximum load capacity of the MY1B32TFG-600Z?
The maximum load capacity depends on the working pressure and stroke. At a working pressure of 0.8MPa, the maximum load capacity of the smc double acting cylinder is 563N.
In practical applications, select the appropriate working pressure based on specific load requirements to ensure stable cylinder operation.
Exceeding the maximum load capacity may cause cylinder damage or unstable operation.
How to adjust the cushion needle of the double acting cylinder?
The cushion needle of rodless cylinder is adjusted using a hex wrench. Ensure the cylinder is stationary before adjustment.
The purpose of adjusting the cushion needle is to optimize the cylinder's movement speed and cushioning effect, avoiding shocks and vibrations.
After adjustment, perform a test run to ensure the cushioning meets application requirements.
What are the installation orientation requirements for the MY1B32TFG-600Z?
This double acting cylinder supports multiple installation orientations, including horizontal or vertical.
The choice of installation orientation should be optimized based on the application and equipment layout.
During installation, ensure the floating bracket connection is secure to enhance stability and reliability.
How to extend the service life of the mechanically jointed rodless cylinder?
Regular maintenance is key to extending service life. Periodically clean the cylinder surface and cushion needle to prevent dust and impurities from accumulating.
Use high-quality seals and lubricants to ensure cylinder sealing and lubrication.
Avoid using the cylinder in extreme environments, such as high temperatures, high humidity, or strong corrosive conditions.
What is the maximum stroke of the MY1B32TFG-600Z?
The maximum stroke is 600mm.
In long-stroke applications, pay attention to cylinder stability, and use side supports if necessary.
For applications requiring longer strokes, consider customized solutions.
What connection methods are available for the mechanically jointed rodless cylinder?
This rodless cylinder supports Rc 1/8 port connections.
Pipes can be connected from four directions, providing flexible installation options.
Ensure good sealing during connection to prevent air leaks.
What is the weight of the MY1B32TFG-600Z?
The weight is 2.7kg.
Compared to previous models, this model is 17% lighter, making it more suitable for lightweight applications.
The lightweight design not only reduces installation difficulty but also improves overall equipment efficiency.
What is the maximum working pressure of the double acting rodless cylinder?
The maximum working pressure is 0.8MPa.
The absolute maximum pressure is 1.2MPa, but it is recommended not to exceed the maximum working pressure during normal operation.
Exceeding the maximum working pressure may damage the cylinder, so air supply pressure must be strictly controlled.
What are the dimensions of the MY1B32TFG-600Z?
The dimensions are 880×64×68mm.
The compact design makes it suitable for space-limited industrial environments.
Ensure sufficient space around the rodless cylinder during installation for maintenance and heat dissipation.
Does the rodless cylinder support stroke adjustment?
This model does not support stroke adjustment.
If stroke adjustment is required, consider other models that offer this feature.
Confirm that the stroke meets application requirements before installation to avoid issues due to insufficient or excessive stroke.
