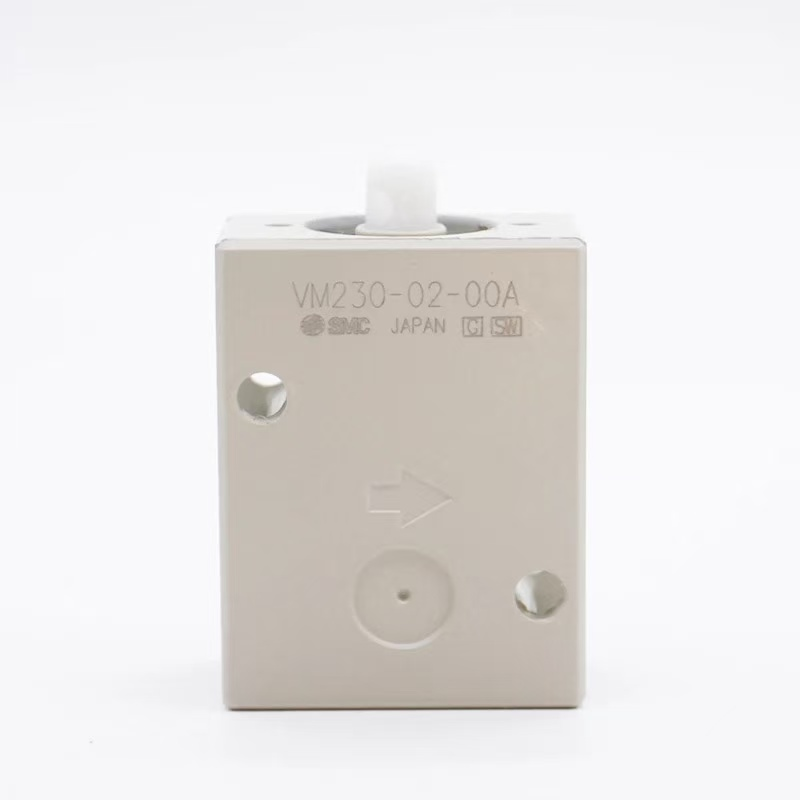

The VM230-02-00A is a 2/3-way pneumatic machine-controlled valve produced by SMC Corporation, belonging to the VM200 series. This pneumatic fitting is characterized by its high flow rate, multiple installation options, and a variety of actuator types, making it suitable for various pneumatic systems. Its main specifications include the use of air or inert gas as the working fluid, a pressure range of 0-1MPa, an environmental and fluid temperature range of -5 to 60 degrees Celsius (non-freezing), an effective cross-sectional area of 19 square millimeters, a pipe connection size of 1/4 inch, three ports, a connection size of RC1/4, a basic driver type, and it is made in Japan.
Product Specifications
Working Fluid: Air/Inert Gas
Pressure Range: 0-1MPa
Temperature Range: -5 to 60 degrees Celsius (non-freezing)
Effective Cross-sectional Area: 19 square millimeters
Pipe Connection Size: 1/4 inch
Number of Ports: 3-way
Connection Size: RC1/4
Driver Type: Basic
Place of Origin: Japan
Weight: 0.2kg
Dimensions: 32mm
Product Features
High Flow Rate: Offers high flow capacity, suitable for various pneumatic control systems.
Multiple Installation Options: Supports side mounting, bottom mounting (with screws), or installation using a special bracket.
Various Actuator Types: Provides a variety of actuator types for users to choose from based on specific applications.
Lightweight Design: The VM200 series valve body is more lightweight and compact, facilitating installation and maintenance.
Wide Application Range: Suitable for pneumatic control panels and for confirming the position of workpieces using pneumatic signals.
Micro Display Light: Allows for the confirmation of air presence, making operation and maintenance more convenient.
Application Scenarios
Pneumatic Control Systems: Suitable as a stop valve and speed control valve for actuating elements, enabling intermediate stop and jogging control.
Pneumatic-Hydraulic Circuit Control: In pneumatic-hydraulic circuits, this pneumatic fitting can be used to control the start/stop and speed regulation of the circuit.
Industrial Automation: Widely used in pneumatic control systems across various fields such as geology, transportation, printing and packaging, and textile leather industries.
Usage Instructions
Installation and Wiring
Installation Environment: Choose a dust-free, non-corrosive gas, and low electromagnetic interference environment, ensuring good heat dissipation for the equipment.
Installation Methods: Supports side mounting, bottom mounting (with screws), or installation using a special bracket. Ensure the installation is secure to avoid vibration impacts on the equipment.
Wiring Requirements: Follow the wiring diagram in the product manual strictly, ensuring the correct connection of power lines, signal lines, and air pipes.
Parameter Settings
Basic Parameter Settings: Set parameters such as usage pressure and environmental temperature according to actual application requirements.
Advanced Function Configuration: If necessary, configure additional protection functions and operation modes to achieve more complex control functions.
Maintenance and Inspection
Regular Inspection: Check the pneumatic control valve body for damage, dust accumulation, and ensure air pipe connections are secure and leak-free.
Parameter Calibration: Regularly calibrate the valve body's parameters to ensure they align with actual application requirements.
Fault Diagnosis: When a fault occurs, promptly check the fault code and refer to the troubleshooting guide in the manual for diagnosis and resolution.
Precautions
Environmental Conditions: Avoid using the product in high-temperature, high-humidity, or strong electromagnetic interference environments to prevent performance and lifespan issues.
Power Requirements: Ensure stable air source pressure to avoid damage to the pneumatic fitting body. After the equipment is disconnected from the air supply, wait for a certain period before re-supplying air to prevent equipment damage.
Safe Operation: Avoid contact with electrified parts during operation to ensure the safety of operators. When performing maintenance and inspection, disconnect the air supply and wait for the air pressure to fully release.
FAQ
How to install the VM230-02-00A?
Installation Method Selection: The VM230-02-00A pneumatic control valve supports multiple installation methods, including side mounting, bottom mounting (with screws), or using a special bracket. Users can choose the appropriate method based on the specific application scenario and installation space.
Installation Steps: First, ensure the installation environment is dust-free, free of corrosive gases, and has low electromagnetic interference, with good heat dissipation. Then, according to the chosen installation method, secure the valve body in the appropriate position. For side mounting, use screws to fix the valve body on the side; for bottom mounting, use screws to fix the valve body on the bottom; for special bracket installation, ensure the bracket is securely installed.
Post-Installation Check: After installation, check if the valve body is securely fixed, if the air pipe connections are correct, and ensure there are no leaks. Also, check if the electrical connections are secure, ensuring normal signal transmission.
What is the flow rate of the VM230-02-00A?
Flow Characteristics: The VM230-02-00A has a high flow rate, capable of meeting the demands of various pneumatic systems. Its effective cross-sectional area of 19 square millimeters ensures high flow capacity.
Flow Testing: In practical applications, the valve body's flow can be tested using a flow meter to ensure it meets design requirements. If the flow does not meet expectations, check the air source pressure, air pipe connections, and valve opening for normalcy.
Flow Regulation: If flow regulation is necessary, adjust the valve opening or use a flow control valve to achieve the desired flow. Ensure the adjusted flow meets application requirements and conduct necessary tests and validations.
What is the maintenance cycle for the VM230-02-00A?
Importance of Regular Maintenance: Regular maintenance ensures the long-term stable operation of the VM230-02-00A and extends the equipment's lifespan. It is recommended to perform regular maintenance every 3-6 months.
Maintenance Content: Regularly inspect the valve body for damage, dust accumulation, and ensure air pipe connections are secure and leak-free. Also, check if the electrical connections are secure, ensuring normal signal transmission. Address any abnormalities promptly.
Post-Maintenance Testing: After maintenance, conduct necessary tests to ensure the valve body's performance meets requirements. Testing includes flow testing, pressure testing, and electrical signal testing, among others.
What is the applicable temperature range for the VM230-02-00A?
Temperature Range: The VM230-02-00A has an environmental and fluid temperature range of -5 to 60 degrees Celsius (non-freezing). Within this temperature range, the valve body can operate normally.
High-Temperature Environment: If use in a high-temperature environment is necessary, consider additional cooling measures such as adding heat sinks or using cooling devices to keep the valve body's temperature within allowable limits.
Low-Temperature Environment: When using in low-temperature conditions, ensure the fluid does not freeze to prevent valve body damage. For extreme low-temperature use, consider using antifreeze or insulation measures.
What is the pressure range for the VM230-02-00A?
Pressure Range: The VM230-02-00A has a usage pressure range of 0-1MPa. Within this pressure range, the valve body can operate normally.
Pressure Testing: During installation and use, regularly conduct pressure tests to ensure the valve body's sealing and pressure resistance. If pressure anomalies are detected, promptly check the air source pressure, air pipe connections, and valve sealing conditions.
Pressure Regulation: If pressure regulation is necessary, adjust the air source pressure or use a pressure control valve to achieve the desired pressure. Ensure the adjusted pressure meets application requirements and conduct necessary tests and validations.
What types of actuators are available for the VM230-02-00A?
Actuator Types: The VM230-02-00A offers various actuator types, including basic and micro display light types. Users can select the appropriate actuator type based on specific applications.
Actuator Selection: The basic type is suitable for general pneumatic control systems, while the micro display light type conveniently confirms the presence of air, suitable for applications requiring visual confirmation.
Actuator Installation: When installing the actuator, ensure it is securely connected to the valve body and that the electrical connections are correct. If an actuator needs to be replaced, follow the steps in the manual.
What are the installation methods for the VM230-02-00A?
Installation Methods: The VM230-02-00A pneumatic control valve supports multiple installation methods, including side mounting, bottom mounting (with screws), or using a special bracket. Users can choose the appropriate method based on the specific application scenario and installation space.
Installation Steps: For side mounting, use screws to fix the valve body on the side; for bottom mounting, use screws to fix the valve body on the bottom; for special bracket installation, ensure the bracket is securely installed.
Post-Installation Check: After installation, check if the valve body is securely fixed, if the air pipe connections are correct, and ensure there are no leaks. Also, check if the electrical connections are secure, ensuring normal signal transmission.
How to troubleshoot faults with the VM230-02-00A?
Fault Codes: When a fault occurs, the valve body will display a fault code. Users can refer to the troubleshooting guide in the manual based on the fault code to diagnose and resolve the issue.
Common Faults: Common faults include air pipe leaks, loose electrical connections, and valve body blockages. Air pipe leaks can be resolved by checking air pipe connections and replacing seals; loose electrical connections can be fixed by reconnecting and tightening screws; valve body blockages can be addressed by cleaning the valve body and replacing filters.
Fault Resolution: When resolving faults, ensure the equipment is in a safe state, disconnecting the air and power sources. Follow the steps in the troubleshooting guide to ensure the equipment returns to normal operation after fault resolution.
What are the weight and dimensions of the VM230-02-00A?
Weight: The VM230-02-00A pneumatic control valve weighs 0.2kg, making it easy to install and transport.
Dimensions: The VM230-02-00A pneumatic control valve has an outer dimension of 32mm, suitable for various compact installation spaces.
Installation Space: When installing, ensure there is sufficient space for the valve body's installation and maintenance. Also, consider the valve body's heat dissipation requirements, ensuring the installation location has good ventilation.
What are the application ranges for the VM230-02-00A?
Application Ranges: The VM230-02-00A pneumatic fitting is suitable for various pneumatic control systems, such as stop valves and speed control valves for actuating elements, enabling intermediate stop and jogging control.
Industry Applications: It is widely used in pneumatic control systems across various fields such as geology, transportation, printing and packaging, and textile leather industries. In these fields, the VM230-02-00A can achieve high-precision pneumatic control, enhancing the stability and reliability of the system.
Special Applications: In pneumatic-hydraulic circuits, the VM230-02-00A pneumatic fitting can be used to control the start/stop and speed regulation of the circuit, suitable for applications requiring precise control.
