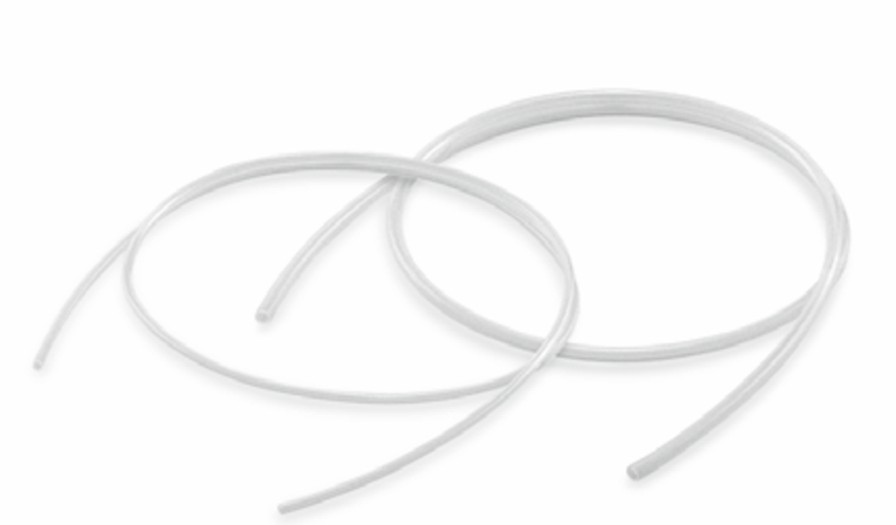

The TD0806-10 is a smc ptfe tubing of SMC brand for basic pneumatics and is part of the TD series. Constructed from modified polytetrafluoroethylene (PTFE), it boasts superior resistance to high temperatures, chemical corrosion, and exceptional flexibility. This makes it a versatile choice for applications across multiple sectors, such as food processing, medical equipment, semiconductor manufacturing, automotive systems, and general pneumatic system.
Product Specifications
Outer Diameter: 8 mm
Inner Diameter: 6 mm
Length: 10 meters per roll
Material: Modified PTFE
Color: Semi-transparent
Maximum Operating Pressure:
At 20°C: 1.6 MPa
At 100°C: 0.5 MPa
At 200°C: 0.25 MPa
At 260°C: 0.15 MPa
Maximum Operating Temperature: 260°C
Minimum Bend Radius:
Recommended: 45 mm
Minimum: 31 mm
Product Features
High-Temperature and Chemical Resistance: With a maximum operating temperature of 260°C, it is suitable for a variety of chemical environments.
High Flexibility: The modified PTFE material enhances flexibility, making it ideal for installation in tight spaces.
Food Hygiene Compliance: Meets Japanese food hygiene laws and FDA standards.
Fire Resistance: Complies with UL94-V0 self-extinguishing fire standards.
Application Scenarios
Food Industry: Ideal for conveying food-grade liquids or gases.
Medical Equipment: Suitable for pneumatic systems and hydraulic systems in medical devices.
Semiconductor Manufacturing: Perfect for high-purity gas conveyance.
Automotive Manufacturing: Suitable for pneumatic systems in automotive production lines.
General Pneumatic Systems: Suitable for various industrial automation equipment.
Installation Instructions
Installation Environment:
Ensure the installation environment is free from corrosive gases and avoid high temperatures, high humidity, or strong electromagnetic interference.
Avoid using in areas where the ptfe tubing may vibrate or shake.
Installation and Wiring:
Ensure the SMC basic pneumatics tubing’s bend radius is greater than the minimum recommended value (45 mm) to prevent damage.
Use appropriate pneumatic fittings, such as fluororesin or push-in fittings, for secure connections.
Maintenance and Inspection:
Regularly inspect the ptfe tubing of SMC brand for signs of wear or aging, especially in high-temperature or long-term use scenarios.
Replace the basic pneumatics tubing of SMC brand immediately if any leakage or damage is detected.
Precautions
Pressure and Temperature Limits:
Do not exceed the maximum operating pressure and temperature, especially under high-temperature conditions where pressure should be reduced accordingly.
When using liquid media, be cautious of tube rupture due to pressure fluctuations.
Media Compatibility:
Ensure the ptfe tubing is compatible with the conveyed media and avoid using highly corrosive chemicals.
Regular Maintenance:
Regularly inspect the connections and tighten or replace them as necessary.
Product Pricing
The price of TD0806-10 varies depending on the supplier and purchase quantity. For example:
On the RS Components website, the price is £67.53 per roll.
On the Misumi website, the price is €71.16 per roll.
On the West Domain website, the specific price is determined based on membership level and purchase volume.
Frequently Asked Questions and Answers
What is the maximum operating temperature of TD0806-10?
The maximum operating temperature of TD0806-10 is 260°C. Under high-temperature conditions, working pressure should be reduced to ensure safety.
Is it compliant with food hygiene standards?
Yes, it meets Japanese food hygiene laws and FDA standards, making it suitable for the food and medical industries.
How flexible is TD0806-10?
TD0806-10 is highly flexible, thanks to its modified PTFE material, making it ideal for installation in tight spaces.
What is the lifespan?
The lifespan depends on the operating environment and media. Material aging may accelerate under high-temperature or high-pressure conditions.
Is it suitable for the semiconductor industry?
Yes, it is suitable for high-purity gas conveyance in semiconductor manufacturing.
How to choose the right fittings for TD0806-10?
We recommend using fluororesin or push-in pneumatic fittings to ensure reliable connections and sealing.
Are there other color options for TD0806-10?
The product is semi-transparent and currently available only in this color.
How to prevent tube leakage?
Regularly inspect the connections to ensure they are secure. Avoid using in areas where the ptfe tubing may vibrate to reduce mechanical stress.
Is it suitable for water conveyance?
Yes, it is suitable for water conveyance, but be cautious of tube rupture due to pressure fluctuations.
What is the price?
The price varies depending on the supplier and purchase quantity. For specific pricing, please consult the supplier or refer to e-commerce platforms.
