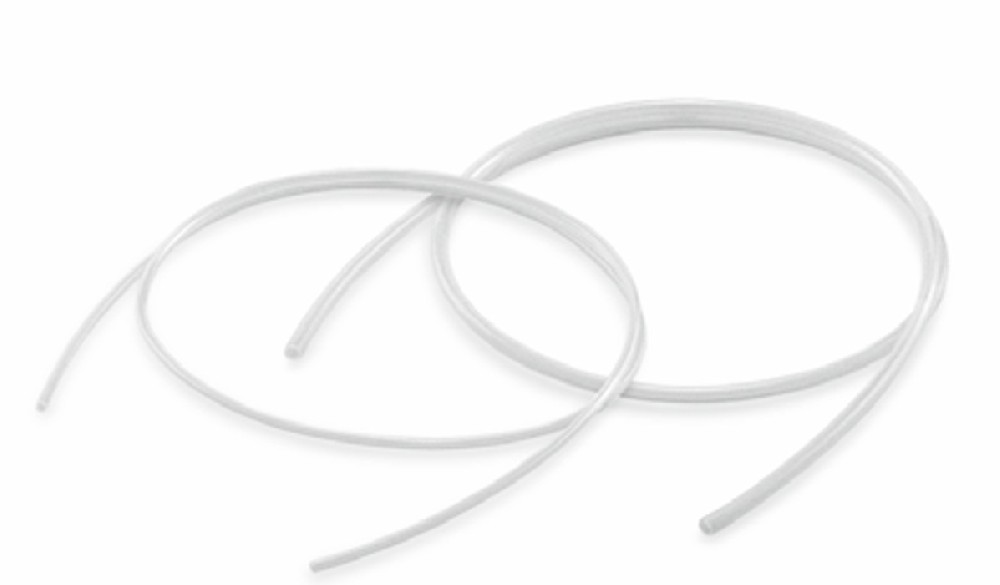

The TID01-16 is a flexible fluororesin SMC hose manufactured by SMC and belongs to the TD/TID series. Made from modified polytetrafluoroethylene (PTFE) resin, this SMC pneumatic hose offers exceptional chemical resistance, high-temperature tolerance, and flexibility. It is widely used in various industries, including food, medical, semiconductor, automotive, and general pneumatic systems.
Product Specifications
Outer Diameter: 3.18 mm (1/8 inch)
Inner Diameter: 2.18 mm
Length: 16 meters
Minimum Bend Radius: 15 mm
Maximum Working Pressure:
At 20°C: 1.4 MPa
At 100°C: 0.7 MPa
At 200°C: 0.35 MPa
At 260°C: 0.2 MPa
Operating Temperature Range: -65°C to +260°C
Material: Modified PTFE
Color: Semi-transparent
Compliance: Meets FDA, RoHS, and UL94-V0 self-extinguishing fire standards
Product Features
High Flexibility: The use of modified PTFE enhances flexibility by about 20%, making it ideal for installation in tight spaces.
High-Temperature and Chemical Resistance: The maximum operating temperature reaches 260°C, suitable for a variety of chemical environments.
Food Hygiene Standards: Compliant with Japanese food hygiene laws and FDA standards, making it suitable for the food and medical industries.
Fire Resistance: Meets UL94-V0 self-extinguishing fire standards.
Application Scenarios
Food Industry: Suitable for conveying food-grade liquids or gases.
Medical Equipment: Ideal for pneumatic and hydraulic systems in medical devices.
Semiconductor Manufacturing: Suitable for conveying high-purity gases.
Automotive Manufacturing: Ideal for pneumatic systems in automotive production lines.
General Pneumatic Systems: Suitable for various industrial automation equipment.
Installation Instructions
Installation Environment:
Ensure the installation environment is free from corrosive gases and avoid high temperatures, high humidity, or strong electromagnetic interference.
Avoid using in areas where the SMC hose may vibrate or shake.
Installation and Wiring:
Ensure the SMC pneumatic hose's bend radius is greater than the minimum bend radius (15 mm) to prevent kinking.
Use appropriate pneumatic fittings and automation components, such as fluororesin or push-in fittings, for secure connections.
Maintenance and Inspection:
Regularly inspect the SMC hose for signs of wear or aging, especially in high-temperature or long-term use scenarios.
Replace the SMC pneumatic hose immediately if any leakage or damage is detected.
Precautions
Pressure and Temperature Limits:
Do not exceed the maximum working pressure and temperature, especially under high-temperature conditions where pressure should be reduced accordingly.
When using liquid media, be cautious of tube rupture due to pressure fluctuations.
Media Compatibility:
Ensure the SMC hose is compatible with the conveyed media and avoid using highly corrosive chemicals..
Regular Maintenance:
Regularly inspect the connections and tighten or replace them as necessary.
Frequently Asked Questions and Answers
What is the maximum operating temperature of TID01-16?
The maximum operating temperature of TID01-16 is 260°C. Under high-temperature conditions, working pressure should be reduced to ensure safety.
Is it compliant with food hygiene standards?
Yes, it meets Japanese food hygiene laws and FDA standards, making it suitable for the food and medical industries.
How flexible is TID01-16?
TID01-16, made from modified PTFE, offers approximately 20% higher flexibility, making it ideal for installation in tight spaces.
What is the lifespan?
The lifespan depends on the operating environment and media. Material aging may accelerate under high-temperature or high-pressure conditions.
Is it suitable for the semiconductor industry?
Yes, it is suitable for high-purity gas conveyance in semiconductor manufacturing, offering excellent chemical resistance and transparency.
How to choose the right fittings for TID01-16?
We recommend using fluororesin or push-in pneumatic fittings and automation components to ensure reliable connections and sealing.
Are there other color options for TID01-16?
The product is semi-transparent and currently available only in this color.
How to prevent tube leakage?
Regularly inspect the connections to ensure they are secure. Avoid using in areas where the SMC hose may vibrate to reduce mechanical stress.
Is it suitable for water conveyance?
Yes, it is suitable for water conveyance, but be cautious of tube rupture due to pressure fluctuations.
What is the price?
The price varies depending on the supplier and purchase quantity. For example, it is priced at €71.16 per roll on the Misumi website and £67.53 per roll on the RS Components website.
