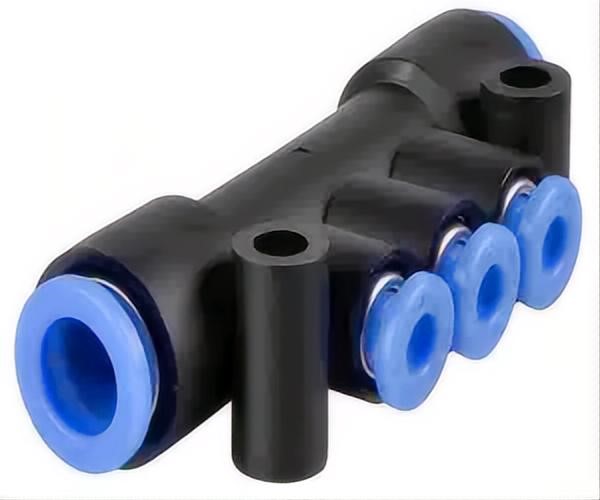

The KM13-04-08-3 is a KM series smc tube fittings as pneumatic actuator for smc pneumatics produced by SMC Corporation. This product features a compact piping design, enabling centralized piping and quick, convenient installation.
It is widely used in various smc pneumatic systems, suitable for applications where rapid connection and disconnection of air circuits are required, such as automated equipment and robotic arms.
Product Details Product Specifications
1.Interface Type: Quick Connector
2.Interface A Tube Diameter: Φ4mm
3.Interface B Tube Diameter: Φ8mm
4.Number of Ports: 3
5.Body Material: Standard (PBT)
6.Seal Material: Standard (NBR)
7.Working Pressure: -100 kPa...1 MPa
8.Working Temperature: Air -5...+60 °C, Water 0...+40 °C
Product Features
1.Compact Design: Piping can be lightweight, saving space.
2.Centralized Piping: Allows for small-scale centralized piping, facilitating management and maintenance.
3.Quick Disassembly and Assembly: Connection and disconnection can be completed with one hand, improving work efficiency.
4.Wide Application: Suitable for compressed air and water.
Application Scenarios
1.Automated Equipment: In automated production lines, used for quick connection and disconnection of pneumatic actuators, such as cylinders,smc pneumatics and pneumatic motors.
2.Robotic Arms: At the joints of robotic arms, for quick replacement of tools or pneumatic actuators, enhancing flexibility and production efficiency.
3.Medical Equipment: In medical devices that require quick connection and disconnection of air circuits, such as ventilators and anesthesia machines.
4.Food Processing Equipment: In food processing production lines, used for quick connection and disconnection of pneumatic valves, pneumatic pumps ,smc pneumatics and other equipment.
Usage Instructions Installation and Wiring
1.Installation Environment: Choose an environment free of dust, corrosive gases, and strong electromagnetic interference, and ensure good heat dissipation of the equipment.
2.Wiring Requirements: Strictly follow the wiring diagram in the product manual to ensure the correct connection of Interface A and Interface B.
3.Ground Protection: Ensure good grounding of the equipment, in compliance with national and local electrical safety standards.
Parameter Settings
1.Basic Parameter Settings: Set parameters such as the tube diameter of Interface A and Interface B according to actual application needs.
2.Advanced Function Configuration: If necessary, configure additional connection options to achieve more complex air circuit control.
Maintenance and Inspection
1.Regular Inspection: Check the appearance of the tube fittings for damage and whether the seal is aging. Regularly clean the dust on the tube fittings to ensure reliable connection.
2.Parameter Verification: Regularly verify the connection parameters of the tube fittings to ensure they match the actual application needs.
3.Fault Diagnosis: When the equipment fails, promptly check the fault code and troubleshoot according to the fault diagnosis guide in the manual.
Precautions
1.Environmental Conditions: Avoid using the product in environments with high temperature, high humidity, and strong electromagnetic interference to prevent affecting its performance and lifespan.
2.Power Requirements: Ensure stable air source pressure to avoid damage to the tube fittings caused by pressure fluctuations.
3.Safe Operation: During equipment operation, avoid contact with live parts to ensure the safety of operators. When performing maintenance and inspection, make sure to cut off the air source and wait for the pressure to be fully released.
FAQ
How to perform quick connection and disconnection?
Connection Method: Insert the air pipe into Interface A or Interface B until you hear a "click", indicating a successful connection.
Disconnection Method: Press the release button of the tube fittings with your finger, and gently pull out the air pipe at the same time.
Precautions: During the connection and disconnection process, ensure that the outer diameter of the air pipe matches the tube diameter of the tube fittings, and avoid forcing insertion or removal.
What is the working pressure range of KM13-04-08-3?
Working Pressure: The working pressure range of this tube fittings is -100 kPa to 1 MPa.
Applicable Range: Suitable for compressed air and water.
Precautions: During use, ensure that the air source pressure is within this range to avoid overpressure use, which may damage the tube fittings.
How to choose the appropriate tube diameter?
Interface A: Tube diameter is Φ4mm.
Interface B: Tube diameter is Φ8mm.
Selection Suggestions: Choose the appropriate interface according to the outer diameter of the air pipe in actual applications to ensure reliable connection and sealing.
What is the working temperature range ?
Working Temperature: Air -5...+60 °C, Water 0...+40 °C.
Applicable Range: Suitable for various smc pneumatics’ systems under different environmental conditions.
Precautions: When using under extreme temperature conditions, ensure that the material and seal of the tube fittings can withstand the corresponding temperature.
How to avoid air circuit leakage ?
Installation Check: During installation, ensure that the air pipe is inserted in place, and the "click" sound indicates a successful connection.
Regular Inspection: Regularly check whether the seal of the tube fittings is aging or damaged, and replace it in time if there is a problem.
Maintenance and Care: Regularly clean the dust and impurities on the tube fittings to ensure reliable connection.
What is the maintenance cycle of KM13-04-08-3?
Maintenance Cycle: It is recommended to carry out regular inspection and maintenance every 3 months.
Inspection Content: Check the appearance of the tube fittings, the seal, the connected air pipe, etc., to ensure no damage and leakage.
Maintenance Measures: Clean the dust on the tube fittings, check whether the seal is aging, and replace it in time if there is a problem.
How to choose the installation location of KM13-04-08-3?
Installation Environment: Choose an environment free of dust, corrosive gases, and strong electromagnetic interference.
Installation Location: Ensure that there is enough space around the tube fittings for operation and maintenance.
Installation Method: Install vertically to facilitate the flow of air circuits and heat dissipation.
What are the connection methods of KM13-04-08-3?
Connection Method: This tube fittings adopts a push-in connection, which is simple and quick to operate.
Connection Steps: Insert the air pipe into Interface A or Interface B until you hear a "click", indicating a successful connection.
Disconnection Steps: Press the release button of the tube fittings with your finger, and gently pull out the air pipe at the same time.
How to ensure the connection reliability ?
Connection Check: During the connection process, ensure that the air pipe is inserted in place, and the "click" sound indicates a successful connection.
Regular Inspection: Regularly check whether the connection of the tube fittings is firm and whether the seal is aging or damaged.
Maintenance and Care: Regularly clean the dust and impurities on the tube fittings to ensure reliable connection.
What is the applicable range ?
Applicable Range: Suitable for compressed air and water.
Application Scenarios: Widely used in automated equipment, robotic arms, medical equipment, food processing equipment, etc.
Precautions: During use, ensure that the air source pressure and temperature are within the specified range to avoid overpressure and overheating use.
