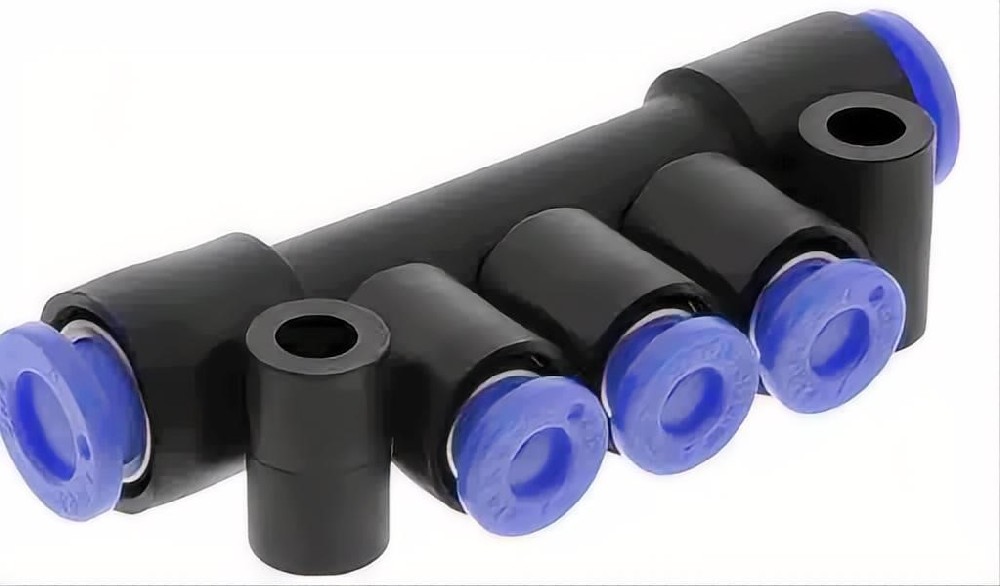

The SMC KM13-04-06-3 is a quick-change connector with smc miniature fittings and smc tubing belonging to the KM series, featuring a compact design.
This product allows for small-scale centralized piping, making it suitable for various industrial automation scenarios and effectively improving the efficiency and tidiness of piping. Its port A has a pipe diameter of Φ4mm,
Product Details
Product Specifications
1. Type: 13, both port A and port B are quick-change smc connectors with smc miniature fittings and smc tubing.
2. Pipe Diameter: Port A is Φ4mm, and port B is Φ6mm.
3. Number of Ports: 3.
4. Body Material: PBT・SUS304.
5. Sealing Material: NBR.
6. Color: Black, with a blue release sleeve.
7. Hose Diameter: Port A fits Φ4mm hoses, and port B fits Φ6mm hoses.
8. Working Pressure: 1 MPa.
9. Working Temperature Range: Minimum -5°C, maximum +60°C.
Product Features
1. Compact Piping: Enables small-scale centralized piping for a neater layout.
2. Quick Installation and Removal: The quick-change design allows for easy installation and removal, enhancing work efficiency.
3. Centralized Piping: Serves as a branch for centralized piping in various devices, suitable for air supply piping connections in the drive sections of automatic machines.
Application Scenarios
1. Industrial Automation Equipment: Used in various industrial automation devices to connect pneumatic components, enabling quick switching and centralized management of air circuits.
2. Robotic Arms: Provides a stable air supply connection for the pneumatic systems of robotic arms, ensuring precise movements.
3. Conveyor Systems: Used in conveyor belt systems and other material handling systems to control actuators like cylinders, achieving precise material transportation.
Usage Instructions
1. Installation: Ensure the installation environment is clean and dust-free. Avoid installing in high-temperature, high-humidity, or strong electromagnetic interference areas. Follow the wiring diagram in the product manual to ensure a secure connection.
2. Parameter Settings: Reasonably set relevant parameters according to actual application needs, such as working pressure and temperature.
3. Maintenance: Regularly inspect the connection of the smc connectors with smc miniature fittings and smc tubing to ensure no leakage. Clean the surface of the fittings to remove dust and debris, maintaining cleanliness.
Precautions
1.Environmental Conditions: Avoid using in extreme temperatures, humidity, or corrosive environments to prevent affecting product performance and lifespan.
2.Connection Check: Before use, ensure the connection of the fittings is secure to guarantee the sealing of the air circuit.
3.Operational Safety: When performing installation, removal, or maintenance operations, ensure the equipment is powered off to prevent accidents.
Frequently Asked Questions (FAQ)
How to Ensure the Seal of the smc connectors with smc miniature fittings and smc tubing?
The key to ensuring a seal lies in correct installation and connection. During installation, ensure the fittings are securely connected to the hoses to prevent loosening. Regularly inspect the seals of the fittings; if any damage or aging is detected, replace them promptly. Additionally, using the appropriate lubricant can enhance sealing effectiveness, but it is crucial to select a lubricant compatible with the seal material.
2.What is the Maintenance Cycle for the smc connectors with smc miniature fittings and smc tubing?
The maintenance cycle depends on the usage environment and frequency. It is generally recommended to conduct a routine inspection every three months, including checking the connection of the fittings, the wear of the seals, and any leakage. If the usage environment is harsh or the frequency is high, the maintenance cycle should be shortened accordingly. Regular maintenance can effectively extend the lifespan of the fittings and ensure the stable operation of the equipment.
3.How to Choose the Right Hose to Pair with the smc connectors with smc miniature fittings and smc tubing?
When selecting a hose, consider its outer diameter, material, and pressure resistance. The KM13-04-06-3 smc connectors with smc miniature fittings and smc tubing' port A fits Φ4mm hoses, and port B fits Φ6mm hoses. The hose material should be compatible with the seal material of the fittings, such as NBR seals which are suitable for most common rubber and plastic hoses. Additionally, the hose's pressure resistance should be equal to or greater than the working pressure of the fittings to ensure system safety.
4.Does the smc connectors with smc miniature fittings and smc tubing Support Customization?
The SMC KM13-04-06-3 connectors with smc miniature fittings and smc tubing are standard products and typically do not support customization. If users have special requirements, they can contact SMC's technical support department to inquire if there are other models or solutions that can meet their needs. In some cases, SMC may offer customization services, but this will depend on the specific requirements and production plans.
5.How to Handle Leakage Issues with the smc connectors with smc miniature fittings and smc tubing?
If leakage is detected, first check if the connection of the fittings is secure to ensure there is no loosening between the hose and the fittings. If the connection is not the issue, the seal may be damaged or aged and needs to be replaced. When replacing the seal, ensure it is of the same material and specification as the original. If the leakage persists, it is advisable to contact SMC's technical support department for further assistance and guidance.
6.Are There Any Special Requirements for the Installation Direction of the smc connectors with smc miniature fittings and smc tubing?
The installation direction should be determined based on the specific piping layout and equipment requirements. Generally, the fittings should be installed in a location that is convenient for operation and maintenance, ensuring easy connection and disconnection. If the equipment has specific installation direction requirements, follow the equipment manual strictly. During installation, avoid applying excessive torque to the fittings to prevent damage to the fittings or seals.
7.How to Extend the Lifespan of the smc connectors with smc miniature fittings and smc tubing?
The key to extending the lifespan of the fittings lies in correct usage and maintenance. First, ensure the fittings are used under suitable environmental conditions, avoiding high temperatures, high humidity, strong electromagnetic interference, and corrosive gases. Secondly, conduct regular maintenance and inspections, promptly replace damaged seals, and clean the surface of the fittings to remove dust and debris. Additionally, using the appropriate lubricant can reduce friction and extend the lifespan of the fittings.
8. Are the smc connectors with smc miniature fittings and smc tubing suitable for High-Pressure Systems?
The KM13-04-06-3 smc connectors with smc miniature fittings and smc tubing have a working pressure of 1 MPa, making them suitable for pneumatic systems in general industrial automation equipment. If the system pressure exceeds 1 MPa, it is recommended to select fittings with a higher pressure rating. When using high-pressure systems, ensure the fittings are securely connected and regularly check the sealing and pressure resistance of the fittings.
9.How to Choose a Replacement for the smc connectors with smc miniature fittings and smc tubing?
When selecting a replacement, consider the fitting's port size, working pressure, working temperature, and seal material. Ensure the replacement has the same port sizes as the original, i.e., port A is Φ4mm and port B is Φ6mm. Additionally, the replacement's working pressure and temperature range should cover the original fitting's usage range. The seal material should also be compatible with the original fitting to ensure sealing effectiveness.
10. What is the Special Significance of the Release Sleeve Color of the smc connectors with smc miniature fittings and smc tubing?
The release sleeve color is primarily used to distinguish different specifications and types of fittings. In the case of the KM13-04-06-3 smc connectors with smc miniature fittings and smc tubing, the release sleeve is blue. This color coding helps quickly identify the specifications and types of fittings in complex piping systems, improving the efficiency of maintenance and replacement.
