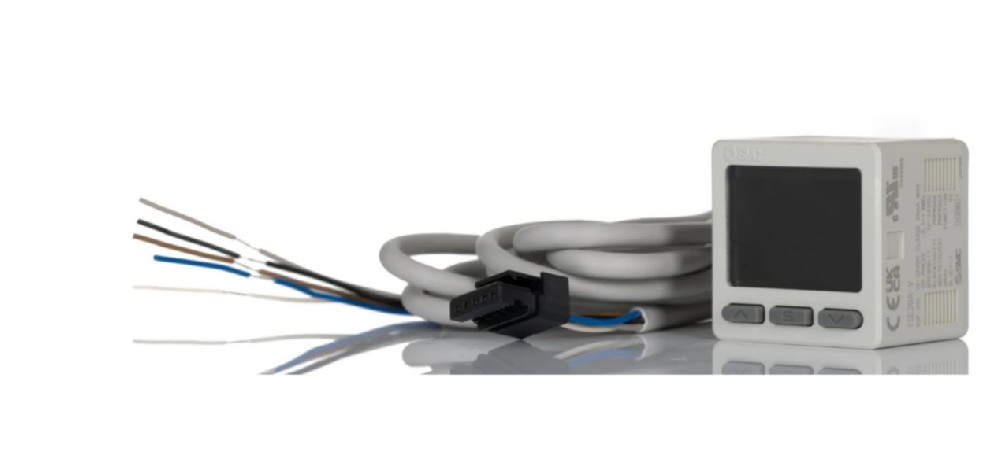

The SMC pneumatics sensor, equipped with a 3-screen LCD display, is designed for high precision regulator and pneumatic valve applications. This sensor provides precise pressure measurement and control capabilities for air, non-corrosive gases, and non-flammable gases. It features a variety of display units (such as MPa, kPa, kgf/cm², bar, psi, etc.) and supports multiple output modes, including analog and switch outputs.
The sensor is equipped with a 3-screen LCD display. The main screen shows the pressure value, while the sub-screens can display set values or other relevant information. With a display accuracy of ±2% F.S. and a repeatability of ±0.2% F.S.,it meets the high-precision requirements for SMC pneumatics systems, pneumatic valve control, and precision regulator operations in industrial automation.. The ISE20A series is widely used in industrial automation, machinery manufacturing, robotics, and other fields, especially in applications requiring precise pressure control, such as pneumatic systems, vacuum equipment, and automated production lines. It is also suitable for integration with solenoid valves and other components in complex automation setups.
Product Specifications
Pressure Range:
Rated pressure range: -0.100 MPa to 1.000 MPa
Display and setting range: -0.105 MPa to 1.050 MPa
Minimum setting increment: 0.001 MPa
Power Supply Specifications:
Voltage: 12 to 24 VDC ±10%
Ripple: No more than 10%
Maximum current consumption: 35 mA
Output Types:
Supports NPN or PNP open-collector output
Maximum load current: 80 mA
Maximum external voltage (NPN only): 28 V
Analog Output:
Provides 1 to 5 V and 4 to 20 mA analog outputs
Load impedance range: 50 to 600 Ω
Display Accuracy:
Display accuracy: ±2% F.S. ±1 digit
Repeatability: ±0.2% F.S. ±1 digit
Environmental Adaptability:
Operating temperature range: -5°C to 50°C
Storage temperature range: -10°C to 60°C
Humidity range: 35% to 85% RH (non-condensing)
Product Features
High-Precision Measurement:
The ISE20A series uses high-precision pressure sensors, achieving a display accuracy of ±2% F.S. and a repeatability of ±0.2% F.S., ensuring reliable pressure measurement in complex industrial environments.
Multiple Output Modes:
Supports switch output (hysteresis mode, upper and lower limit comparison mode) and analog output (voltage or current), meeting the needs of various application scenarios, including those involving SMC pneumatics.
3-Screen Display:
The main screen displays the pressure value, while the sub-screens can show set values or other relevant information. It also supports switching between multiple units, making it convenient for users to choose according to their needs.
Digital Filtering Function:
Built-in digital filter allows adjustable delay time (0 to 5000 ms), effectively suppressing pressure fluctuations and interference.
Protection Rating:
The product meets the IP40 protection rating, suitable for industrial environments with dust and non-direct contact with liquids.
Applications
The ISE20A-Y-01-JA2Y is widely used in the following fields:
Industrial Automation: For pressure monitoring and control in SMC pneumatics systems, including pneumatic valve and precision regulator applications, ensuring stable and safe operation of equipment.
Machinery Manufacturing: In robotics, for monitoring cylinder pressure to achieve precise motion control.
Vacuum Equipment: Suitable for pressure monitoring in vacuum pumps and vacuum systems, ensuring stable vacuum levels.
Automated Production Lines: For monitoring and controlling pneumatic components on production lines, improving production efficiency and product quality.
Installation and Wiring
Installation Environment:
Choose a dust-free, non-corrosive gas, and low electromagnetic interference environment, ensuring optimal performance for SMC pneumatics, pneumatic valve, and precision regulator setups.
Wiring Requirements:
Follow the wiring diagram in the product manual strictly, ensuring correct connections for power, signal, and sensor lines.
Grounding Protection:
Ensure proper grounding of the device, in compliance with national and local electrical safety standards.
Parameter Settings
Basic Parameter Settings:
Include pressure range, display units, output modes, etc., set according to actual application needs.
Advanced Function Configuration:
Such as hysteresis mode and upper/lower limit comparison mode, configure according to specific application scenarios to achieve more complex control functions.
Maintenance and Inspection
Regular Inspection:
Check the sensor's appearance for damage, ensure secure connections, and clean surface dust to ensure normal operation.
Parameter Verification:
Regularly verify the sensor's parameter settings to ensure they match the actual application needs.
Fault Diagnosis:
When a fault occurs, promptly check the fault code and troubleshoot according to the guide in the manual.
Precautions
Environmental Conditions:
Avoid using the product in high-temperature, high-humidity, or strong electromagnetic interference environments to prevent performance degradation and reduced lifespan.
Power Requirements:
Ensure stable power voltage to avoid damage to the sensor from voltage fluctuations. Wait for a certain period before re-powering the device after shutdown.
Safe Operation:
Avoid contact with live parts during operation to ensure operator safety. Disconnect power and wait for capacitor discharge before maintenance or inspection.
Frequently Asked Questions (FAQ)
What is the display accuracy of the ISE20A-Y-01-JA2Y?
The display accuracy is ±2% F.S. ±1 digit, with a repeatability of ±0.2% F.S. ±1 digit. This means that at an ambient temperature of 25°C, the sensor provides high-precision pressure measurement, meeting the needs of most industrial applications. The accuracy range ensures that the deviation between the sensor's measurement and the actual pressure value remains within an acceptable range, suitable for high-precision applications. Users can further improve measurement accuracy by using the digital filter function to reduce the impact of pressure fluctuations on the results.
What output modes does the ISE20A-Y-01-JA2Y support?
The sensor supports multiple output modes, including NPN or PNP open-collector output, as well as 1 to 5 V and 4 to 20 mA analog output. Switch output modes include hysteresis mode and upper/lower limit comparison mode. Users can choose the appropriate mode based on their application needs, especially when integrating with linear actuators. Analog output is suitable for continuous pressure monitoring, while switch output is ideal for pressure control and alarm functions.
How is the environmental performance ?
The sensor operates within a temperature range of -5°C to 50°C, a storage temperature range of -10°C to 60°C, and a humidity range of 35% to 85% RH (non-condensing), making it suitable for most industrial environments. The product meets the IP40 protection rating, effectively preventing dust and non-direct contact with liquids, ensuring long-term stable operation. Avoid exposing the sensor to extreme conditions during installation and use to extend its lifespan.
How to use the digital filter function of the ISE20A-Y-01-JA2Y?
The digital filter allows adjustable delay time (0 to 5000 ms) to effectively suppress pressure fluctuations and interference. Users can adjust the delay time based on the frequency and amplitude of pressure changes in their application to optimize measurement accuracy. For fast-changing pressure conditions, a shorter delay time is recommended; for smoother measurement values, a longer delay time can be set.
What are the power voltage requirements for the ISE20A-Y-01-JA2Y?
The sensor requires a power voltage of 12 to 24 VDC ±10%, with ripple not exceeding 10%, and a maximum current consumption of 35 mA. Ensure stable power voltage within the specified range to avoid damage to the sensor. Wait for a certain period before re-powering the device after shutdown to prevent damage.
What should be considered when installing the ISE20A-Y-01-JA2Y?
Install the sensor in a dust-free, non-corrosive gas, and low electromagnetic interference environment, avoiding high-temperature, high-humidity, or strong electromagnetic interference conditions. Ensure vertical installation for proper heat dissipation. Use appropriate fixing methods to avoid vibration effects. When connecting power, ensure the power cable meets specifications and pay attention to correct polarity. Proper grounding is also essential.
How to switch display units on the ISE20A-Y-01-JA2Y?
The sensor supports multiple display units, including MPa, kPa, kgf/cm², bar, psi, etc. Users can switch units via the buttons on the sensor panel or through external devices. When switching units, ensure the displayed value matches the actual pressure value to avoid measurement errors due to incorrect unit selection, especially when used with linear actuators.
What is the maintenance cycle?
It is recommended to perform a visual inspection and electrical connection check quarterly to ensure normal operation. Clean the sensor surface and internal dust every six months and check the cooling system. Conduct a comprehensive parameter verification and functional test annually to ensure measurement accuracy and control functions meet requirements.
How to calibrate the output signal of the ISE20A-Y-01-JA2Y?
Output signal calibration can be performed through the sensor panel menu. Adjust the output signal range and proportion according to actual needs. During calibration, ensure the input pressure is stable and known to accurately adjust the output signal. After calibration, conduct multiple tests to ensure the relationship between the output signal and actual pressure value meets expectations.
How to interpret fault codes on the ISE20A-Y-01-JA2Y?
When a fault occurs, the sensor displays a corresponding fault code. Users can refer to the fault code table in the manual for interpretation. Common fault codes include abnormal power voltage, sensor overheating, output short circuit, etc. Based on the fault code prompt, users can quickly locate and fix the problem. If unable to resolve the issue independently, contact technical support for further diagnosis and repair.
The above content covers the product specifications, features, applications, usage instructions, and precautions of the ISE20A-Y-01-JA2Y high-precision digital pressure sensor, as well as detailed answers to common questions, helping users better understand and utilize the product, especially in applications involving SMC pneumatics, pneumatic valve, and precision regulator.
