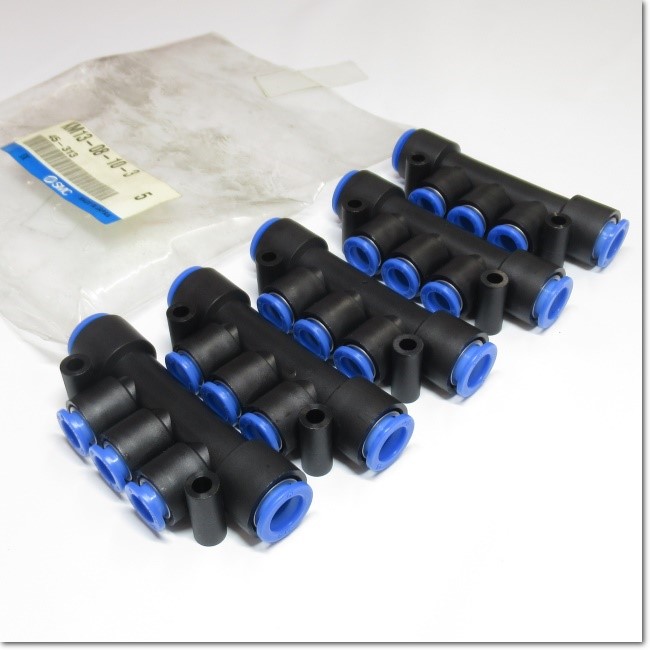

The KM13-08-10-3 are compact smc dot fittings from SMC's KM series. It features an 8mm port diameter for interface A and a 10mm port diameter for interface B, with three ports in total.
This product allows for compact centralized piping, reducing the total length of the smc air cylinder by 64% and the volume by 70% compared to the CU series. Made from PBT material, it's suitable for compressed smc air and liquid water applications, with a working temperature range of -5℃ to 60℃
Product Specifications:
Type: 13, both interfaces A and B are smc dot fittings.
Port Diameter: Interface A is 8mm, and interface B is 10mm.
Number of Ports: 3.
Material: PBT body, POM release button, NBR sealing ring.
Working Temperature: -5℃ to 60℃.
Maximum Working Pressure: 10 bar.
Product Features:
Compact Design: The KM13-08-10-3 are smc dot fittings allows for small-scale centralized piping,better air cylinder saving space.
Quick Installation: Designed with smc dot fittings for easy installation.
Wide Applicability: Suitable for various pneumatic systems, including compressed smc air and liquid water applications.
High-Quality Material: The PBT material is durable, and the POM release button and NBR sealing ring ensure good sealing and operability.
Application Scenarios: The KM13-08-10-3 is a smc dot fittings suitable for pneumatic systems that require compact piping and quick installation, such as pneumatic control circuits in industries like automated production lines, mechanical manufacturing, and food processing. Its compact design and quick installation features make it particularly suitable for space-limited situations.
Usage Instructions: Installation:
Installation Environment: Choose a dust-free, non-corrosive gas, and low electromagnetic interference environment, ensuring good heat dissipation of the equipment(such as smc dot fittings).
Wiring Requirements: Strictly follow the wiring diagram in the product manual to ensure the correct connection of power, signal, and motor wires.
Grounding Protection: Ensure good grounding of the equipment, in compliance with national and local electrical safety standards.
Parameter Settings:
Basic Parameter Settings: Including motor parameters, control methods, air cylinder, frequency ranges, etc., set reasonably according to actual application needs.
Advanced Function Configuration: Such as PID control, multi-speed control, etc., configure according to specific application scenarios to achieve more complex control functions.
Maintenance and Inspection:
Regular Inspection: Check the appearance of the inverter for damage, dust on the heat sink, and normal operation of the fan. Regularly clean the dust on the heat sink and fan to ensure the smooth operation of the heat dissipation system.
Parameter Verification: Regularly verify the parameter settings of the inverter to ensure they remain consistent with actual application needs.
Fault Diagnosis: When the equipment fails, promptly check the fault code and troubleshoot according to the fault diagnosis guide in the manual.
Precautions:
Environmental Conditions: Avoid using the product in high-temperature, high-humidity, or strong electromagnetic interference environments to prevent affecting smc dot fittings performance and lifespan.
Power Requirements: Ensure stable power voltage to avoid damage to the inverter from voltage fluctuations. After the equipment is powered off, wait for a certain period before powering on again to prevent damage to the equipment.
Safe Operation: Avoid contact with live parts during equipment operation to ensure the safety of operators. When performing maintenance and inspection, the power must be cut off, and the capacitor must be fully discharged.
Frequently Asked Questions (FAQ):
How does the inverter perform motor self-tuning?
Importance of Motor Self-Tuning: Motor self-tuning is an essential step to ensure the compatibility between the inverter and the motor, improving control accuracy and system stability. When performing self-tuning, first set the motor's nameplate parameters, including motor power, rated voltage, and rated current.
Precautions During Self-Tuning: During the self-tuning process, the inverter injects current into the motor. Therefore, it is necessary to ensure that the motor and inverter are correctly connected and that the inverter is in a ready state. Also, ensure that the motor is stationary to avoid damage during self-tuning.
Effects After Self-Tuning: After completing self-tuning, the inverter will automatically adjust the control parameters based on the actual motor parameters to achieve the best operating effect. This helps improve the system's response speed and control accuracy, meeting the requirements of high-precision control applications.
How to configure the communication interface of the FR-D740-022SC-EC inverter?
Communication Interface Type: The FR-D740-022SC-EC inverter is equipped with the Modbus-RTU protocol and supports the RS485 communication interface. Users can choose the appropriate communication interface according to actual needs.
Communication Line Connection: When configuring the communication interface, ensure the correct connection of the communication lines. Use shielded cables for connection and ensure that the shielding layer of the cable is well grounded to reduce electromagnetic interference.
Communication Parameter Settings: According to the requirements of the communication protocol, set the communication address, baud rate, data bits, stop bits, etc., of the inverter. Also, ensure that the communication parameters are consistent with those of the upper computer to achieve a reliable communication connection.
How to select the power range of the inverter?
Select Based on Load Demand: When selecting the power range of the inverter, determine it based on the actual load condition of the motor. If the load is light, choose an inverter that matches the rated power of the motor; if the load is heavy or there is a large starting torque requirement, choose an inverter with a slightly higher power.
Consider Safety Factor: When selecting the power range, also consider the safety factor of the system. It is usually recommended to choose an inverter with a slightly higher power than the rated power of the motor to cope with load fluctuations and emergencies.
Overload Capacity: The FR-D740-022SC-EC inverter has a certain overload capacity and can withstand a load exceeding the rated power for a short time. However, long-term overload can affect the lifespan and performance of the inverter, so try to avoid long-term overload operation when selecting the power range.
What is the cooling method of the inverter?
Cooling Method: The FR-D740-022SC-EC inverter uses forced smc air cooling, with an built-in cooling fan for heat dissipation.
Installation Requirements: When installing the inverter, ensure that there is enough space around it for smc air circulation. Avoid installing the inverter in a closed or poorly ventilated environment to prevent affecting the cooling effect.
Maintenance and Care: Regularly clean the dust on the fan and heat sink to effectively prevent equipment overheating due to poor cooling. Also, check the operation of the fan to ensure its normal function.
How to avoid electromagnetic interference of the inverter?
Built-in Filter: The inverter is equipped with an EMC filter, which complies with relevant electromagnetic compatibility standards and can effectively suppress electromagnetic interference.
Wiring Precautions: When wiring, try to avoid placing signal lines close to power lines to reduce electromagnetic interference. Also, use shielded cables for signal line connections and ensure that the shielding layer is well grounded.
Grounding Measures: Good grounding is an important means to reduce electromagnetic interference. Ensure that the equipment is well grounded and complies with national and local electrical safety standards.
What are the protection functions of the inverter?
Overload Protection: When the motor load exceeds the rated value, the inverter will automatically reduce the frequency or stop running to protect the motor and inverter.
Overheat Protection: The inverter is equipped with a temperature sensor inside. When the temperature exceeds the set value, it will automatically shut down to prevent damage caused by overheating.
Overvoltage and Undervoltage Protection: When the power voltage is too high or too low, the inverter will automatically shut down to protect the equipment. In addition, it also has short-circuit protection and phase-loss protection functions to ensure the safe operation of the system.
How to perform regular maintenance on the inverter?
Appearance Inspection: Regularly check the appearance of the inverter for damage or abnormalities, such as cracks in the shell or loose screws.
Cooling System Maintenance: Clean the dust on the fan and heat sink to ensure the normal operation of the cooling system. Check the operation of the fan, and replace it in time if there are any abnormalities.
Electrical Connection Inspection: Check whether the connections of the power and signal lines are firm to ensure good contact. At the same time, check the operating state of the motor to promptly discover and handle any abnormal conditions.
What should be noted when installing the inverter?
Installation Location: Choose an environment with good ventilation, dust-free, and free of corrosive gases for installation. Avoid installing the inverter in high-temperature, high-humidity, or strong electromagnetic interference environments.
Installation Method: Ensure that the inverter is installed vertically to facilitate heat dissipation. Use the appropriate fixing method during installation to prevent the equipment from being affected by vibration.
Power Connection: When connecting the power, ensure that the specifications of the power line meet the requirements and pay attention to the correctness of the phase sequence. At the same time, ensure that the equipment is well grounded.
How to select the control mode of the FR-D740-022SC-EC inverter?
Select Based on Application Needs: For applications that require high-precision speed control, choose the sensorless vector control mode; for general constant-speed control applications, choose the V/F control mode.
Control Mode Features: The sensorless vector control mode can achieve high-precision speed and torque control and is suitable for applications with high control accuracy requirements. The V/F control mode is simple and easy to use and is suitable for general constant-speed control.
Parameter Settings: After selecting the control mode, set the corresponding parameters according to the specific application needs to achieve the best control effect.
How to set the frequency setting channel of the inverter?
Frequency Setting Method: The frequency can be set through the inverter panel, external analog signals, or digital signals. Users can choose the appropriate frequency setting method according to actual application needs.
Signal Source Requirements: When setting the frequency setting channel, ensure the stability and accuracy of the signal source. For example, when using external analog signals for frequency setting, ensure the stability and anti-interference ability of the signal.
Parameter Configuration: According to the selected frequency setting method, perform the corresponding parameter configuration. For example, for external analog signal setting, set the input range of the signal and the corresponding frequency range.
