Knowing About the Pneumatic Actuator: SMC VR1210F-04 Shuttle Valve

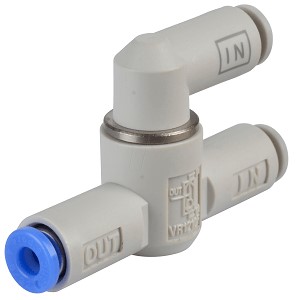

The VR1210F-04 is a shuttle valve with a quick-change fitting produced by SMC Corporation. It belongs to the category of pneumatic logic element function fittings.This product is suitable for air relay elements in various pneumatic systems, featuring an OR logic functio···

  • Contact Us Contact On WhatsApp
  • 010-64225983

    +8613811814778

    info@zhongpingtech.com

    Building 26, Liyuan Community, Chaoyang District, Beijing, China

The VR1210F-04 is a shuttle valve with a quick-change fitting produced by SMC Corporation. It belongs to the category of pneumatic logic element function fittings.

This product is suitable for air relay elements in various pneumatic systems, featuring an OR logic function. It is designed for tubes with an outer diameter of 4mm, with a maximum flow rate of 210L/min and a working pressure range of 0.05 to 1MPa.

Knowing About the Pneumatic Actuator: SMC VR1210F-04 Shuttle Valve

Product Specifications

Body Size: 1/8 scale

Valve Type: Shuttle Valve

Quick-Change Fitting: Included

Suitable Tube Outer Diameter: Φ4mm

Operating Temperature Range: -5℃ to 60℃

Operating Pressure Range: 0.05MPa to 1MPa

Maximum Flow Rate: 210L/min

Material: Resin

Installation Type: Quick Connect

Product Features

Quick-Change Fitting: Facilitates rapid connection and disconnection of air hoses, enhancing installation and maintenance efficiency.

High Reliability: Compact design and robust construction make it suitable for various industrial environments.

Multiple Sizes Available: Offers fittings with different outer diameters to meet the needs of various application scenarios.

Wide Temperature Range: Capable of stable operation in environments ranging from -5℃ to 60℃, adapting to various harsh conditions.

Applications

Automated Production Lines: Used to control pneumatic smc actuator, enabling the transmission and control of pneumatic signals in automated production.

Mechanical Manufacturing: Employed in the relay control of pneumatic systems during mechanical manufacturing, improving system response speed and stability.

Food Processing: Utilized in food processing equipment to control pneumatic valves and smc actuator, ensuring hygiene and efficiency in production processes.

Packaging Industry: Used in packaging equipment to control pneumatic components, achieving fast and accurate packaging actions.

Instructions for Use

Installation and Wiring

Installation Environment: Choose a dust-free, non-corrosive gas, and low electromagnetic interference environment, ensuring good heat dissipation for the device.

Wiring Requirements: Follow the wiring diagram in the product manual strictly to ensure correct connection of air hoses and prevent leaks.

Grounding Protection: Ensure proper grounding of the device, complying with national and local electrical safety regulations.

Parameter Settings

Basic Parameter Settings: Set working pressure and flow parameters according to actual application requirements.

Advanced Function Configuration: Configure logical functions based on specific application scenarios to achieve more complex control functions.

Maintenance and Inspection

Regular Inspection: Check for damage to the valve body, air leaks in hoses, and loose quick-change fittings. Regularly clean dust from the valve body and fittings to ensure smooth airflow.

Parameter Verification: Regularly verify the parameter settings of the valve body to ensure they align with actual application requirements.

Fault Diagnosis: When a fault occurs, promptly check the fault code and follow the troubleshooting guide in the manual to identify and resolve issues.

Precautions

Environmental Conditions: Avoid using the product in high-temperature, high-humidity, or strong electromagnetic interference environments to prevent performance degradation and reduced lifespan.

Pressure Requirements: Ensure working pressure is between 0.05MPa and 1MPa to prevent damage to the valve body from excessive or insufficient pressure.

Safe Operation: Avoid contact with live parts during operation to ensure operator safety. When performing maintenance and inspection, disconnect the air source and ensure all pressure in the hoses is released.



FAQ

How to Install VR1210F-04?

Preparation Before Installation: Ensure the installation environment is dust-free, free of corrosive gases, and free of strong electromagnetic interference, with good ventilation. Prepare the appropriate tools and air hoses.

Installation Steps: Insert the quick-change fitting of the VR1210F-04 into the air hose, ensuring a secure connection. Use the appropriate method to fix the valve body to the equipment, ensuring it is installed vertically for proper heat dissipation.

Inspection and Testing: After installation, check the air hose connections for security and the quick-change fitting for looseness. Conduct an air tightness test to ensure there are no leaks.

What is the Working Principle ?

Basic Principle: The VR1210F-04 is a shuttle valve that controls the flow of air to achieve logical functions. When either of the two input ports receives an airflow, the output port will also have an airflow.

Application Scenarios: This valve is commonly used in situations where multiple air sources are input and one output is selected, such as in automated production lines to control the start and stop of pneumatics actuator.

Advantages: It features quick response, high reliability, and easy installation, making it suitable for various industrial environments.

How to Choose the Working Pressure for it?

Pressure Range: The working pressure range of the VR1210F-04 is 0.05MPa to 1MPa. Choose the working pressure based on actual application requirements and equipment specifications.

Safety Factor: When selecting the working pressure, consider the safety factor of the system to avoid long-term operation at high pressure, which can extend the lifespan of the equipment.

Pressure Regulation: If pressure adjustment is necessary, use a pressure regulator to ensure the pressure remains within a safe range.

What is the Cooling Method of it?

Cooling Method: The VR1210F-04 uses natural cooling through the valve body surface.

Installation Requirements: Ensure there is sufficient space around the valve body for air circulation during installation. Avoid installing the valve in enclosed or poorly ventilated areas to prevent reduced cooling efficiency.

Maintenance and Care: Regularly clean dust from the valve body surface to effectively prevent overheating due to poor cooling.

How to Avoid Electromagnetic Interference with it?

Built-in Filter: Although the VR1210F-04 is smc pneumatics component, to reduce electromagnetic interference, ensure the installation environment is free of strong electromagnetic interference.

Wiring Precautions: When wiring, avoid placing air hoses close to electrical circuits to reduce electromagnetic interference. Use shielded air hoses for connections and ensure the shielding layer is properly grounded.

Grounding Measures: Proper grounding is an important means of reducing electromagnetic interference. Ensure the device is properly grounded and complies with national and local electrical safety regulations.

What Protective Functions Does VR1210F-04 Have?

Overpressure Protection: The valve body will automatically close when the working pressure exceeds 1MPa to protect the equipment.

Undervoltage Protection: The valve body will not function properly when the working pressure is below 0.05MPa, preventing equipment damage due to insufficient pressure.

Air Tightness Protection: The valve body is designed with good air tightness to prevent air leaks and ensure the normal operation of the system.

How to Perform Regular Maintenance ?

Appearance Inspection: Regularly check the valve body for damage or abnormalities, such as cracks in the housing or loose screws.

Airway Inspection: Check the air hose connections for security and the quick-change fitting for looseness, ensuring smooth airflow.

Performance Testing: Regularly conduct performance tests to ensure the valve body's response speed and logical functions are normal. If any abnormalities are found, repair or replace the valve promptly.

What Precautions Should Be Taken When Installing ?

Installation Location: Choose an environment with good ventilation, free of dust and corrosive gases for installation. Avoid installing the valve body in high-temperature, high-humidity, or strong electromagnetic interference areas.

Installation Method: Ensure the valve body is installed vertically for proper heat dissipation. Use the appropriate fixing method during installation to prevent vibration from affecting the equipment.

Air Source Connection: When connecting the air source, ensure the air hose specifications meet the requirements and pay attention to the cleanliness and dryness of the air source. Also, ensure the device is properly grounded.

How to Choose the Control Mode ?

Logical Function: The VR1210F-04 has an OR logical function, suitable for scenarios where multiple air sources are input and one output is selected.

Application Scenarios: In automated production lines, it is used to control the start and stop of smc pneumatics actuator, improving system response speed and stability.

Parameter Settings: Set parameters according to specific application requirements to achieve the best control effect.

How to Set the Frequency Setting Channel ?

Frequency Setting Method: As a pneumatic component, VR1210F-04 does not involve the setting of frequency setting channels. Its main function is to control the on-off of the airflow and achieve logical functions.

Signal source requirements: Ensure the stability and cleanliness of the air source to avoid impurities in the air source affecting the performance of the valve body.

Parameter configuration: According to specific application requirements, make corresponding parameter settings to ensure the normal operation of the valve body.
