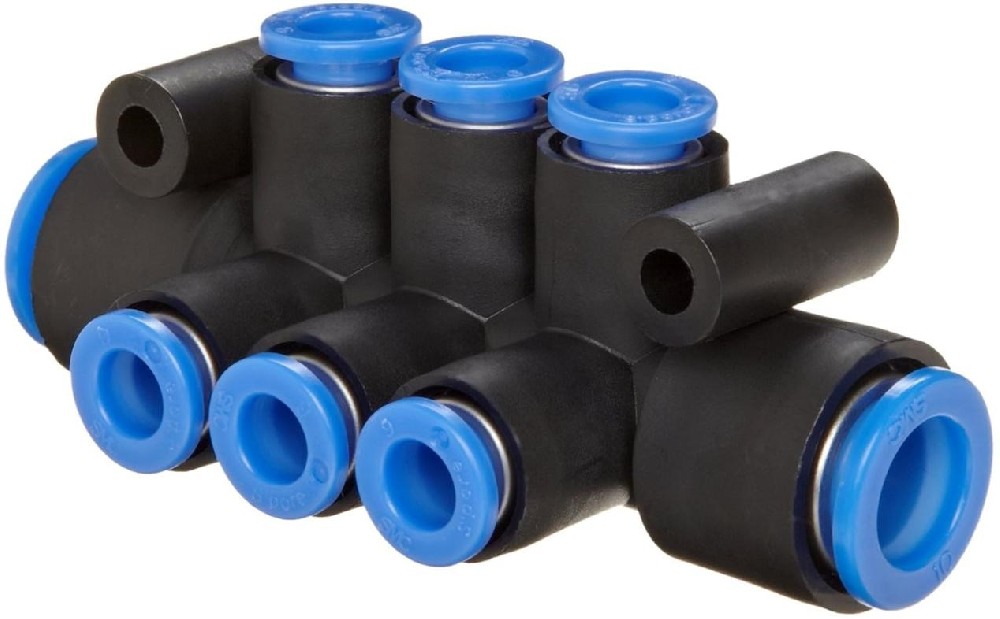

The KM11-06-10-6 is a compact quick-change smc push in fittings with pilot check valve and air hoses from the KM series produced by SMC Corporation.
This product offers a compact centralized piping capability, enabling rapid assembly and disassembly, making it suitable for a variety of pneumatic systems. Its main parameters are as follows: the pipe diameter for Interface A is Φ6mm, the pipe diameter for Interface B is Φ10mm, and it has 6 ports. The body material is PBT・SUS304, the sealing material is NBR, the color is black, and the release sleeve color is blue.
Product Details
Product Parameters
Pipe diameter for Interface A: Φ6mm
Pipe diameter for Interface B: Φ10mm
Number of ports: 6
Body material: PBT・SUS304
Sealing material: NBR
Color: Black
Release sleeve color: Blue
Maximum operating temperature: +60°C
Minimum operating temperature: -5°C
Maximum operating pressure: 1MPa
Product Features
Compact centralized piping: Achieves compact centralized piping, saving space.
One-touch installation: Simple operation, high installation efficiency.
Rich series: Offers a variety of models to meet different user needs.
High material strength: Uses high-strength materials, suitable for various models.
Safety device: Equipped with a safety device using a hydraulic check valve to ensure safe use.
Applications The KM11-06-10-6 quick-change smc push in fittings with pilot check valve and air hoses are widely used in various pneumatic systems, such as:
Industrial automation equipment: Used for pneumatic control in robots and automated production lines.
Pneumatic tools: Provides a quick connection and disconnection interface for pneumatic tools.
Pneumatic testing equipment: Used in pneumatic testing systems for quick switching and connection of air circuits.
Usage Instructions
Installation environment: Choose a dust-free, non-corrosive gas, and non-strong electromagnetic interference environment, and ensure good heat dissipation of the equipment.
Wiring requirements: Strictly follow the wiring diagram in the product manual to ensure the correct connection of power, signal, and motor wires.
Grounding protection: Ensure good grounding of the equipment, in compliance with national and local electrical safety standards.
Maintenance and Inspection
Regular inspection: Check the appearance of the fitting for damage and the aging of the sealing ring. Regularly clean the dust on the fitting to ensure reliable connection.
Parameter verification: Regularly verify the connection parameters of the fitting to ensure consistency with actual application requirements.
Fault diagnosis: When the equipment fails, promptly check the fault code and troubleshoot according to the guide in the manual.
Precautions
Environmental conditions: Avoid using the product in high-temperature, high-humidity, or strong electromagnetic interference environments to prevent affecting its performance and lifespan.
Power requirements: Ensure stable power voltage to prevent damage to the equipment from voltage fluctuations.
Safe operation: Avoid contact with live parts during equipment operation to ensure the safety of operators.
Frequently Asked Questions (FAQ)
How to connect and disconnect the quick-change fitting?
Connection process: Insert the air hoses into Interface A or B, ensuring it is fully inserted. A "click" sound indicates a successful connection.
Disconnection process: Press the release sleeve and gently pull out the air hoses to disconnect.
Precautions: Ensure the air hoses is clean during connection and disconnection to prevent dust and impurities from entering the fitting, affecting the sealing performance.
What are the material features of the quick-change fitting?
Material selection: The body material is PBT・SUS304, known for its high strength and corrosion resistance.
Sealing material: The sealing material is NBR, offering good sealing performance and oil resistance.
Color design: The black body and blue release sleeve facilitate identification and operation.
What is the maximum operating pressure of the quick-change fitting?
Maximum operating pressure: 1MPa.
Precautions: Ensure the system pressure does not exceed the maximum operating pressure during use to prevent damage to the fitting.
What is the temperature range of the quick-change fitting?
Temperature range: The minimum operating temperature is -5°C, and the maximum operating temperature is +60°C.
Precautions: When using in extreme temperature environments, ensure the material and sealing performance of the fitting are not affected.
What are the installation precautions for the quick-change fitting?
Installation environment: Choose a dust-free, non-corrosive gas, and non-strong electromagnetic interference environment.
Wiring requirements: Strictly follow the manual for wiring to ensure a secure connection.
Grounding protection: Ensure good grounding of the equipment, in compliance with safety standards.
What are the maintenance and inspection requirements for the quick-change fitting?
Regular inspection: Check the appearance and sealing ring of the fitting, and clean the dust.
Parameter verification: Regularly verify the connection parameters to ensure consistency with application requirements.
Fault diagnosis: Check the fault code and troubleshoot according to the guide.
What safety devices does the quick-change smc push in fittings with pilot check valve and air hoses have?
Hydraulic pilot check valve: Equipped with a safety device using a hydraulic pilot check valve to ensure safe use.
Release sleeve design: The release sleeve has an elliptical design, making disassembly more effortless and convenient.
What are the applicable air hoses outer diameters for the quick-change fitting?
Interface A: Applicable air hoses outer diameter is Φ6mm.
Interface B: Applicable air hoses outer diameter is Φ10mm.
What is the connection type of the quick-change fitting?
Connection type: Tube-to-tube.
Connection method: Push-in style.
What are the dimensions and weight of the quick-change smc push in fittings with pilot check valve and air hoses?
Dimensions: Length is 76mm.
Weight: 1.00kg.
