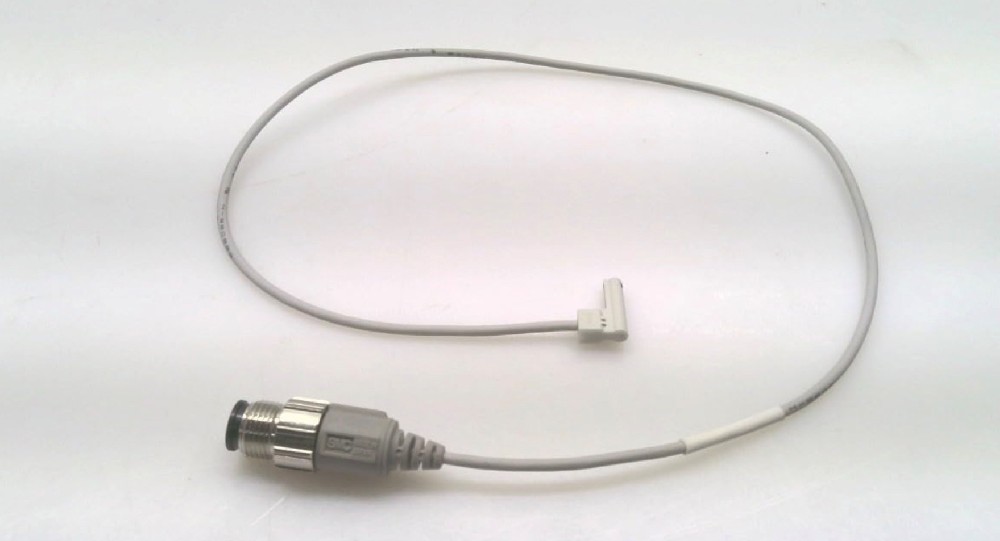

  • SMC D-M9BSAPC: Contactless Magnetic Switch For Pneumatic Cylinder

SMC D-M9BSAPC: Contactless Magnetic Switch For Pneumatic Cylinder

The SMC D-M9BSAPC is a versatile Contactless Magnetic Switch designed specifically for industrial automation and pneumatic control systems. As a high-quality SMC Magnetic Switch, it features advanced Contactless Magnetic Switch technology, which reduces mechanical wear ···

  • Contact Us Contact On WhatsApp
  • 010-64225983

    +8613811814778

    info@zhongpingtech.com

    Building 26, Liyuan Community, Chaoyang District, Beijing, China

The SMC D-M9BSAPC is a versatile Contactless Magnetic Switch designed specifically for industrial automation and pneumatic control systems. As a high-quality SMC Magnetic Switch, it features advanced Contactless Magnetic Switch technology, which reduces mechanical wear and tear, ensuring high reliability and low maintenance costs. The switch supports a two-wire connection, comes with an M8-3 pin front connector and a 0.5-meter lateral lead wire, and is suitable for DC 10~28V power environments.

SMC D-M9BSAPC: Contactless Magnetic Switch For Pneumatic Cylinder

Its compact design and flexible installation options make it widely used in applications such as cylinder position detection, automated machinery, and robotic technology. The Contactless Magnetic Switch design not only enhances the durability of the SMC Magnetic Switch but also provides precise and stable switch signals, making it ideal for high-precision control applications.

Product Specifications

Model: D-M9BSAPC

Connection Type: Two-wire, lateral lead

Wire Specifications: 0.5 meters, with M8-3 pin front connector

Operating Voltage: DC 24V (DC 10~28V)

Load Voltage: DC 24V

Load Current: Up to 40mA maximum

Indicator Light: Status indicator light included

Certifications: CE certified

Product Features

Contactless Design: Reduces mechanical wear and extends service life.

Easy Installation: Simplifies the installation process and enhances maintenance convenience.

High Reliability: CE certified to ensure safety and environmental compliance.

Flexible Wiring: 0.5-meter lateral lead wire adapts to various installation environments.

Applications

The SMC D-M9BSAPC is suitable for a variety of industrial automation scenarios, including but not limited to:

Pneumatic Systems: For position detection and control of cylinders and pneumatic motors using the Contactless Magnetic Switch.

Automated Machinery: Achieves precise position control and status monitoring with the SMC Magnetic Switch.

Robotic Technology: Used for motion control of robotic arms, leveraging the precision of the Contactless Magnetic Switch.

Cleanroom Equipment: Suitable for environments with high hygiene requirements.

Instructions for Use

Installation and Wiring

Installation Environment: Choose a dust-free, low electromagnetic interference environment to ensure stable operation.

Wiring Requirements: Follow the product manual strictly to ensure secure connections.

Grounding Protection: Ensure proper grounding to comply with electrical safety standards.

Parameter Settings

Load Matching: Select appropriate supply voltage and load current based on actual load requirements.

Indicator Light Function: Use the indicator light status to determine the switch's working condition and operating range.

Maintenance and Inspection

Regular Checks: Inspect wire connections for firmness and ensure the indicator light is functioning properly.

Cleaning and Maintenance: Regularly clean the device surface to ensure good heat dissipation.

Precautions

Environmental Conditions: Avoid using in high-temperature, high-humidity, or strong electromagnetic interference environments.

Power Requirements: Ensure stable supply voltage to prevent voltage fluctuations.

Safe Operation: Avoid contact with live parts during operation and disconnect power during maintenance.


Frequently Asked Questions (FAQ)

1   What is the load current range of the SMC D-M9BSAPC Contactless Magnetic Switch?

The load current range of the SMC D-M9BSAPC Contactless Magnetic Switch is 2.5~40mA. This range meets the needs of most industrial automation scenarios. Users should select appropriate current parameters based on specific load characteristics to ensure the stability and reliability of the switch. Exceeding the specified range may cause overheating or damage.

2   How to properly install the D-M9BSAPC Contactless Magnetic Switch?

To install the D-M9BSAPC Contactless Magnetic Switch, insert it into the actuator's mounting slot and secure it with the included M2.5×4L screw, with a tightening torque of 0.05~0.1 N·m. Choose a dust-free, low electromagnetic interference environment and ensure proper alignment with the cylinder to accurately detect the magnetic piston's position.

3    What is the operating voltage range of this SMC Magnetic Switch?

This SMC Magnetic Switch operates within a DC 24V (DC 10~28V) power environment. This wide voltage range allows it to adapt to different power conditions and effectively handle voltage fluctuations, ensuring reliability and stability. Users must ensure the supply voltage falls within this range to prevent device damage.


4   What wiring methods does this Contactless Magnetic Switch support?

The Contactless Magnetic Switch features a two-wire connection with a lateral lead design and a 0.5-meter M8-3 pin front connector. This wiring method is simple and easy to install and maintain, suitable for various industrial environments. For longer wire requirements, users can contact suppliers for customization.


5   How to determine the working status of the Contactless Magnetic Switch?

The status of the switch can be intuitively determined by the color and state of the indicator light. For example, a red light indicates the operating range, while a green light indicates the appropriate operating range. Users can quickly assess whether the switch is working normally and identify potential issues. The indicator light also aids in troubleshooting during commissioning.


6   Is this Contactless Magnetic Switch suitable for high-precision control?

With its contactless design, this Magnetic Switch provides high-precision switch signals, making it ideal for pneumatic systems requiring precise control. The contactless design not only reduces mechanical wear but also enhances signal stability and response speed, ensuring reliability and repeatability in high-precision applications such as automated production lines and robotic technology.


7   Is the maintenance cost of this Magnetic Switch high?

Thanks to its contactless design, which reduces mechanical wear, this Magnetic Switch has relatively low maintenance costs. Users only need to regularly check the indicator light status and wire connections to ensure long-term stable operation. This low-maintenance feature makes it more cost-effective in industrial automation applications, especially for users with limited maintenance resources.


8   Is the wire length of this Magnetic Switch customizable?

The standard model of this Magnetic Switch comes with a 0.5-meter wire suitable for most common applications. For longer wire requirements, users can contact suppliers for customization, considering the impact of wire resistance and voltage drop on switch performance.


9  How to choose the right Magnetic Switch model?

When selecting a Magnetic Switch, users should base their decision on specific application scenarios and requirements. For example, the D-M9BSAPC model is an ideal choice for general-purpose direct installation with high precision needs. Users should also consider factors such as supply voltage, load current, installation method, and environmental conditions (e.g., temperature, humidity, electromagnetic interference) to ensure the switch matches the system perfectly.



10  Is this Magnetic Switch internationally certified?

This Magnetic Switch is CE certified, complying with international safety and environmental standards. This means it has undergone strict regulations in design, production, and testing to ensure safety and reliability in various industrial environments. CE-certified products enjoy high market recognition worldwide, giving users confidence in their usage.
