V100-74-1 Smc Solenoid Valve As Pneumatic Assembly And Fittings

The V100-74-1 is a baseboard piping component for the V100 series three-way direct-acting SMC solenoid valve from SMC Corporation. This product is designed for a wide range of industrial automation applications, featuring high reliability, low power consumption, and fas···

  • Contact Us Contact On WhatsApp
  • 010-64225983

    +8613811814778

    info@zhongpingtech.com

    Building 26, Liyuan Community, Chaoyang District, Beijing, China

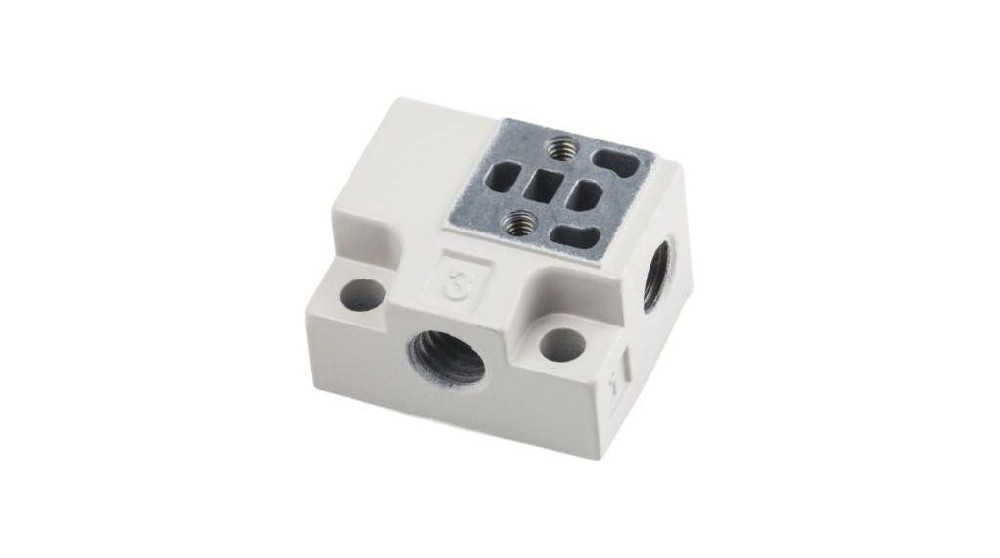

The V100-74-1 is a baseboard piping component for the V100 series three-way direct-acting SMC solenoid valve from SMC Corporation. This product is designed for a wide range of industrial automation applications, featuring high reliability, low power consumption, and fast response times. It is widely used in pneumatic valve assembly systems as SMC fittings.

V100-74-1 Smc Solenoid Valve As Pneumatic Assembly And Fittings

Product Specifications

Function Type: Baseboard piping component for the V100 series three-way direct-acting SMC solenoid valve as SMC fittings.

Application Scope: Suitable for pneumatic valve assembly systems with standard pipe diameters, supporting quick installation and integration.

Ambient Temperature: -10°C to +50°C, adaptable to various industrial environments.

Response Time: Less than 5ms for ON, and less than 4ms for OFF, ensuring rapid control.

Maximum Operating Frequency: 20Hz, suitable for high-frequency operations.

Installation Method: Free installation, supporting various mounting orientations.

Protection Structure: Dust-proof design to ensure reliability in harsh environments.

Application Scenarios

The V100-74-1 is primarily used in pneumatic valve assembly systems that require fast response and high-precision control, such as:

Pneumatic robotic arms and robots in automated production lines.

Pneumatic control units in medical equipment.

Pneumatic slides and precision instruments in cleanroom environments.

Any pneumatic valve assembly system that requires rapid switching and high reliability.

Instructions for Use

Installation and Connection:

Ensure the installation environment is free from vibration and shock, and avoid direct sunlight.

Use appropriate tools and methods to install the baseboard, ensuring a secure connection.

Electrical connections must meet specification requirements to prevent voltage fluctuations.

Commissioning and Operation:

After installation, perform a manual operation test to ensure the SMC solenoid valve responds normally.

Adjust the working parameters of the SMC solenoid valve as SMC fittings according to the specific application requirements.

Maintenance and Care:

Regularly inspect the baseboard connection for tightness and sealing.

Clean the surface of the SMC solenoid valve to prevent dust and oil buildup.

Periodically check the response time and operating frequency of the SMC solenoid valve to ensure it meets performance requirements.

Precautions

Environmental Requirements:

Avoid using in environments filled with corrosive gases, chemicals, or water vapor.

Do not use in environments with flammable or explosive gases to prevent fires or explosions.

Electrical Safety:

Ensure the SMC solenoid valve is properly grounded to prevent electrical faults.

Disconnect power before performing maintenance or disassembly.

Maintenance and Inspection:

Regularly inspect the solenoid valve for sealing and response time.

Implement cooling measures if the valve is used continuously or installed inside a control cabinet.

Frequently Asked Questions and Answers

What is the response time?

The response time of the V100-74-1 is extremely fast, with ON less than 5ms and OFF less than 4ms. This rapid response capability makes it suitable for applications requiring high-precision control. In practice, this fast response time can significantly enhance system efficiency and reliability.

Does the V100-74-1 support high-frequency operation?

Yes, the V100-74-1 has a maximum operating frequency of 20Hz, which allows it to meet the needs of high-frequency operations, such as rapid switching in automated production lines. When designing a system, it is recommended to select an appropriate operating frequency based on actual requirements.

What are the installation environment requirements for the V100-74-1?

The V100-74-1 should be installed in an environment free from vibration and shock. It should also avoid direct sunlight and high-temperature environments. If installed inside a control cabinet or used continuously, cooling measures are necessary.

Does the V100-74-1 require regular maintenance?

Yes, regular maintenance is key to ensuring the long-term stable operation of the solenoid valve. It is recommended to periodically inspect the baseboard connection for tightness and sealing. Cleaning the surface of the solenoid valve to prevent dust and oil buildup can extend its service life.

What is the operating temperature range?

The operating temperature range of the V100-74-1 is -10°C to +50°C, making it adaptable to a variety of industrial environments. In extreme temperature conditions, additional protective measures are recommended.

Does the V100-74-1 support multiple installation orientations?

Yes, the V100-74-1 supports free installation orientations, providing greater flexibility for system design. However, it is still important to avoid vibration and shock during installation.

What is the protection structure?

The V100-74-1 features a dust-proof protection structure to maintain the performance of the solenoid valve in harsh environments. For higher protection levels, products with IP65 or IP67 ratings are recommended.

Does the V100-74-1 support manual operation?

Yes, the V100-74-1 supports non-locking push-to-operate manual control, which is convenient for manual control during commissioning and maintenance. When operating manually, ensure that the operator has the necessary knowledge and experience.

What is the electrical connection method?

The V100-74-1 uses an M-type plug-in electrical connection. This method is simple and reliable, facilitating easy installation and maintenance. When connecting, ensure that the wire specifications meet the requirements.

What is the maximum working pressure?

The maximum working pressure of the V100-74-1 is 0.7MPa, which meets the requirements of most pneumatic valve assembly systems. When designing a system, ensure that the working pressure does not exceed the rated value.
