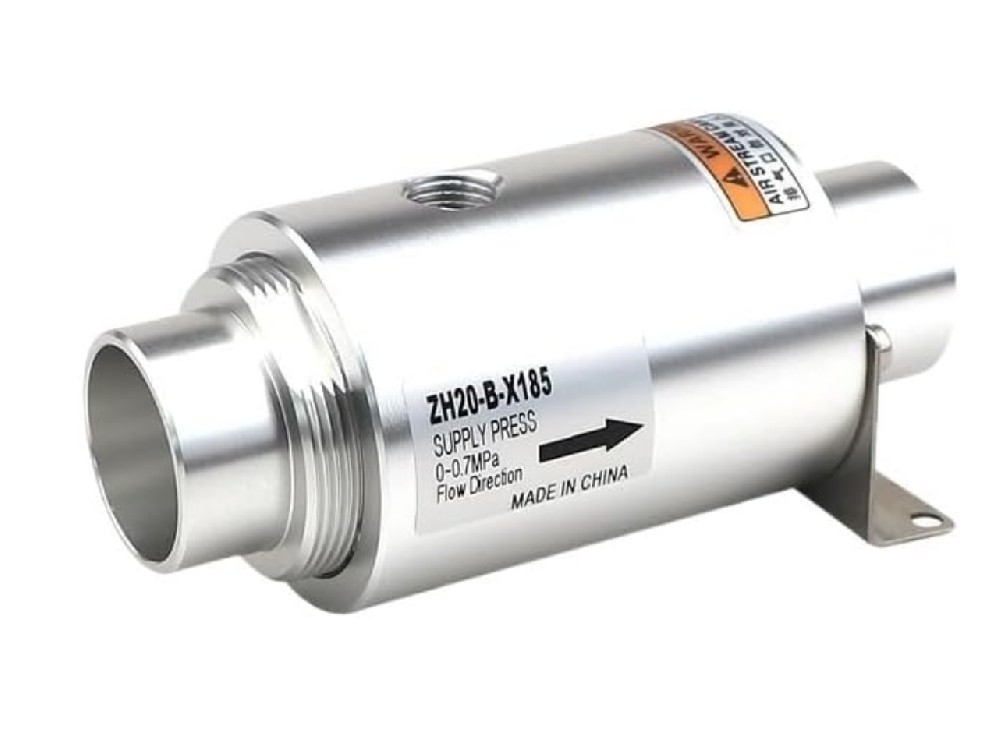

The SMC vacuum ejector ZH20-B-X185 is a high-performance air vacuum generator that achieves high-flow blowing and vacuum suction through the supply of compressed air. Widely used in industrial automation, material handling, and welding fume extraction, this vacuum generator is favored by users for its efficiency, energy-saving capabilities, and easy maintenance.
Product Specifications
Model: ZH20-B-X185
Passage Diameter: ø21.6 mm
Main Body Material: Aluminum alloy
Fluid: Oil-free compressed air
Operating Pressure Range: 0~0.7 MPa
Vacuum Flow: Up to 3 times the supply air flow
Blowing Flow: Up to 4 times the supply air flow
Maximum Passage Diameter: ø21.6 mm
Weight: Approximately 430 g
Product Features
High Efficiency and Energy-saving: The blowing flow can reach up to 4 times the supply air flow, while the vacuum flow can reach up to 3 times the supply air flow, significantly reducing energy consumption.
Large Passage Diameter: ø21.6 mm, capable of handling chips, dust, and other impurities.
Easy Maintenance: No regular maintenance required, offering an advantage over electric blowers.
Flexible Installation: Equipped with a mounting bracket for easy integration into existing systems.
Safety and Reliability: No moving parts and no electrical interference, making it suitable for explosion-proof and dust-proof environments.
Application Scenarios
Blowing Applications: Removing water droplets, blowing away chips, cooling molds, and castings.
Vacuum Applications: Welding fume extraction, handling small spherical and powdery materials.
Material Handling: Conveying granules, powders, and other materials.
Industrial Automation: Such as robotic handling systems and automated assembly lines.
Usage Instructions
Installation
Installation Location: Choose a dust-free environment without corrosive gases, avoiding high temperatures, high humidity, or strong electromagnetic interference.
Installation Method: Can be mounted with a bracket to ensure the device is securely fixed.
Piping Connection: Ensure the air supply pipe is leak-free, and avoid directing the exhaust outlet towards personnel or sensitive components.
Operation
Startup: Start the air vacuum generator by supplying compressed air, and adjust the supply pressure to achieve the desired vacuum or blowing flow.
Flow Adjustment: Control the blowing or vacuum flow by adjusting the nozzle position.
Shutdown: Stop the SMC vacuum ejector by cutting off the compressed air supply.
Precautions
Environmental Requirements: Avoid using in environments with corrosive gases, chemicals, seawater, or water vapor.
Exhaust Safety: The exhaust outlet may expel dust and impurities, so avoid directing it towards personnel or equipment.
Maintenance and Care: Regularly inspect the air supply pipe and filter to ensure no blockages or leaks.
Frequently Asked Questions (FAQ)
What is the vacuum flow of the ZH20-B-X185?
The vacuum flow of the ZH20-B-X185 can reach up to 3 times the supply air flow, making it highly efficient for vacuum suction tasks. This high-flow feature performs exceptionally well in handling granules, powders, and other materials. Users can adjust the supply pressure according to their needs to optimize vacuum flow.
Does the ZH20-B-X185 require regular maintenance?
The ZH20-B-X185 requires no regular maintenance, offering an advantage over electric blowers. With no moving parts, the air vacuum generator reduces the risk of failure and lowers maintenance costs. Users only need to regularly inspect the air supply pipe and filter to ensure no blockages or leaks.
What are the application scenarios for the ZH20-B-X185?
This device is widely used in blowing and vacuum tasks, such as removing water droplets, blowing away chips, and welding fume extraction. It is suitable for industrial automation, robotic handling systems, material handling, and other fields. Its large flow rate and passage diameter enable it to handle chips, dust, and other impurities.
How to adjust the blowing and vacuum flow?
Users can control the blowing or vacuum flow by adjusting the nozzle position. Turning the nozzle counterclockwise increases the flow (vacuum pressure increases), while turning it clockwise decreases the flow (vacuum pressure decreases). Adjust according to the actual application needs.
What are the installation options for the device?
The ZH20-B-X185 is equipped with a mounting bracket for easy integration into existing systems. Users can choose the installation location based on the equipment layout to ensure the vacuum generator is securely fixed.
What should be noted about the exhaust port of the device?
The exhaust port may expel dust and impurities, so it should not be directed towards personnel or sensitive components. When designing the system, ensure the safety of the exhaust port to avoid hazards to operators.
Is the device suitable for high-humidity environments?
The ZH20-B-X185 can operate in environments with temperatures ranging from -5°C to 80°C (non-freezing). However, in high-humidity environments, precautions should be taken to prevent condensation of water vapor, which may affect vacuum generator performance.
What is the energy consumption of the device?
The ZH20-B-X185 uses an efficient air amplification principle to increase the blowing flow to up to 4 times the supply air flow. This design significantly reduces compressed air consumption and saves energy. Users can further optimize energy consumption by adjusting the supply pressure according to their needs.
What is the noise level of the device?
The ZH20-B-X185 operates at low noise levels, making it suitable for noise-sensitive environments. Its design without moving parts further reduces operational noise. Users can choose an appropriate installation location to minimize the impact of noise on the working environment.
Does the device support dust-proof functionality?
The ZH20-B-X185 can be equipped with a dust-proof bag assembly (e.g., ZH-DB1-20-A) to prevent dust from entering the SMC vacuum ejector. When handling large amounts of dust or impurities, it is recommended to add a larger filter. Dust-proof measures help extend the device's lifespan and ensure stable performance.
