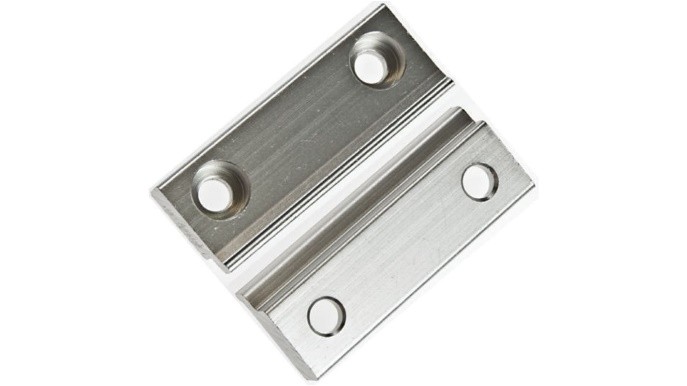

The SMC MY-S25A is a single-sided support specifically designed for the MY1B series rodless cylinders, enhancing the stability and load capacity of the air cylinder. It is one of the SMC pneumatic fittings and suitable for linear actuators. With a length of 50mm, it is ideal for long-stroke operations, effectively extending the cylinder's service life and improving operational precision.
Product Specifications:
Series Compatibility: MY1B series rodless cylinders.
Length: 50mm.
Packaging: Typically sold in pairs (two pieces per set).
Material: High-strength aluminum alloy with excellent corrosion resistance.
Product Features:
High Stability: The MY-S25A provides additional lateral support, reducing vibration and misalignment during cylinder operation to ensure stable performance of the air cylinder.
Easy Installation: As one of the classic pneumatic fittings of SMC, it has compact design and simple installation process—no specialized tools are required.
Strong Compatibility: Fully compatible with other MY1B series components from SMC, allowing seamless integration into existing systems of linear actuators.
Applications:
Automated Production Lines: Used in robotic arms and conveyor systems to enhance production efficiency and equipment stability.
Material Handling: Ensures stable air cylinder operation under high loads in logistics and warehousing equipment.
Industrial Robotics: Provides reliable support for robotic joints, ensuring precise motion.
Installation and Usage Instructions:
1. Installation Steps:
Ensure the air cylinder surface is clean and dust-free.
Attach the MY-S25A support to the side of the cylinder and secure it with screws.
Check the stability of pneumatic fittings after installation to ensure there is no looseness.
2. Maintenance Recommendations:
Regularly inspect the tightness of the support and retighten screws if necessary.
Clean the surface of the support to remove dust and debris, extending its service life.
Precautions:
Load Limitations: Ensure the load on the support is within the designed capacity to avoid damage from overloading.
Environmental Requirements: Avoid using these pneumatic fittings in high-temperature, high-humidity, or corrosive environments.
Installation Direction: Install the support according to the air cylinder's operating direction to achieve optimal performance.
Frequently Asked Questions (FAQ):
1. Is the MY-S25A compatible with other series of cylinders?
The MY-S25A is specifically designed for the MY1B series and is not recommended for other series of cylinders.
2. Does the support require lubrication?
The MY-S25A typically does not require lubrication. However, for the best working efficiency of your linear actuators, in high-load or high-frequency applications, applying a small amount of rust-preventive oil is recommended.
3. How to choose the right length for the support?
Select the support length based on the air cylinder's stroke and load requirements. For long-stroke cylinders, a longer support is recommended.
4. Can the MY-S25A support be customized in length?
The standard length of the MY-S25A is 50mm, designed to meet common application needs. If a different length is required, contact SMC or an authorized dealer to inquire about customization options. Customization may involve additional lead time and costs.
5. Will the installation of the MY-S25A affect the cylinder's stroke?
Proper installation of the MY-S25A will not affect the cylinder's normal stroke. However, ensure precise alignment during installation to avoid obstructing linear actuators movement. If abnormal stroke is detected, recheck the installation position and tightness.
6. Is this support compatible with cylinders from other brands?
While the MY-S25A is designed for SMC's MY1B series cylinders, it may theoretically fit other brands with similar dimensions. However, compatibility cannot be guaranteed. For optimal performance and reliability, it is recommended to use SMC cylinders and matching pneumatic fittings.
7. What is the service life of this support?
Made from high-strength aluminum alloy, the MY-S25A has excellent corrosion resistance and mechanical properties, ensuring a long service life. Under normal use, its lifespan is comparable to that of the cylinder itself. However, factors such as operating environment, load conditions, and maintenance frequency can affect its longevity. Regular inspection and maintenance can effectively extend its service life.
8. When should it be replaced?
Replace the support if any of the following conditions occur: severe wear or deformation on the surface, inability to maintain tightness of the screws, or looseness and abnormal vibration between the support and the cylinder. Regular inspection of the support's appearance and tightness is an essential part of preventive maintenance.
9. Are specialized tools required for the installation of the MY-S25A?
Installation of the MY-S25A typically requires no specialized tools; standard wrenches or screwdrivers are sufficient. However, ensure proper alignment and torque during installation to avoid issues. If unfamiliar with the process, refer to SMC's installation manual or consult a technical expert.
10. Is bulk purchase available for the MY-S25A?
SMC offers various purchasing options, including single-piece and bulk purchases. Bulk orders often come with more favorable pricing and flexible delivery schedules. Contact SMC's sales representatives or authorized dealers for specific purchasing policies and quotes.
