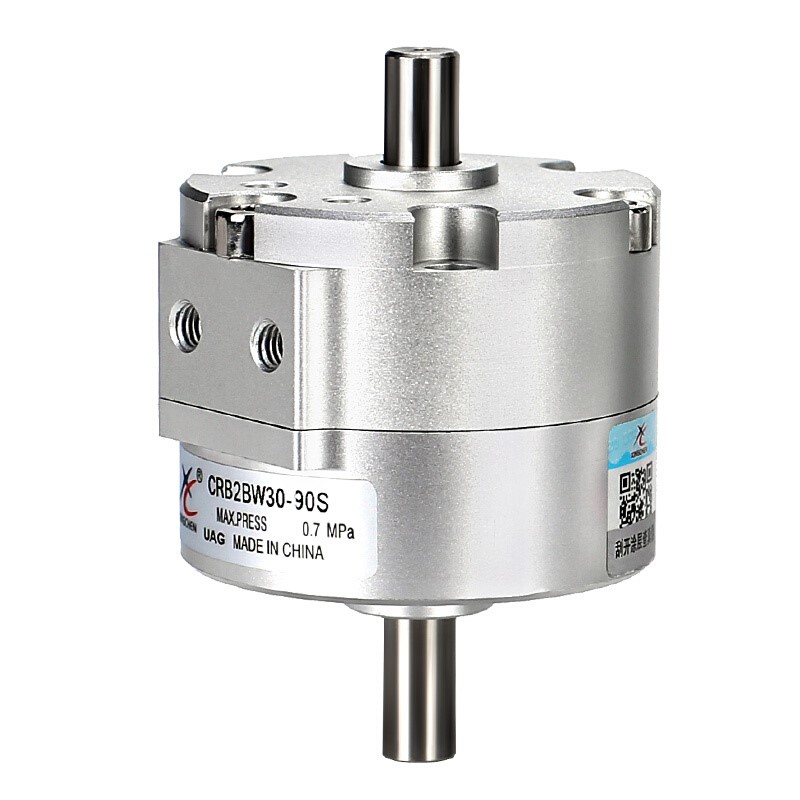

The SMC CRB2BW30-90SZ is a small air cylinders with smc magnetic sensor and smc switch from the CRB2 series.
This cylinder features a smc magnetic sensor that can be installed at any position, direct mounting capability, and the option to choose between side and axial port positions (for models with a smc magnetic sensor and angle adjustment, the piping direction can only be chosen on the side of the cylinder). The minimum operating pressure is 0.15 MPa (for cylinder diameters 15–40 mm), and it can be adjusted to any angle.
Product Specifications:
Size: 30 mm
Oscillation Angle: 90°
Vane Type: Single Vane
Shaft Type: Double shaft with one side milled flat
Port Position: Side of the cylinder
Magnetic smc switch: No built-in magnet ring, no magnetic smc switch
Installation Type: Basic type
Minimum Operating Pressure: 0.15 MPa
Maximum Operating Pressure: 1.0 MPa
Guaranteed Pressure Resistance: 1.5 MPa
Ambient Temperature: 5–60°C
Lubrication: Non-lubricated
Permissible Radial Load: 30 N
Permissible Axial Load: 25 N • Cylinder Material: Aluminum alloy
Vane Shaft Material: Carbon steel
End Cap Material: Aluminum alloy
Cushion Material: Rubber cushion
Limiter Material: Resin
Product Features:
The smc magnetic sensor installation position can be moved freely, allowing users to adjust the position of the smc magnetic sensor according to actual needs.
Direct mounting simplifies the installation process and improves installation efficiency.
Flexible port positions offer two choices for piping direction, increasing installation flexibility.
Low-pressure operation with a minimum operating pressure of 0.15 MPa, suitable for low-pressure environments.
Angle adjustment allows for adjustment to any angle, meeting the needs of different application scenarios.
Application Scenarios:
Chemical: Used for oscillating control in various chemical equipment, such as mixers and valves.
Petroleum: Used to control rotating parts in oil extraction and processing equipment.
Energy: Used to control rotating parts in power generation equipment, such as wind turbine blade adjustments.
Electronics: Used for precise oscillating control in electronic manufacturing equipment.
Electrical: Used to control rotating parts in electrical equipment, such as smc switch gear.
Usage Instructions:
Installation: - Installation Environment: Choose a well-ventilated, dust-free, and non-corrosive gas environment, avoiding high temperatures, high humidity, or strong electromagnetic interference. - Installation Method: Ensure the cylinder is installed vertically for proper heat dissipation. Use appropriate fixing methods to prevent vibration from affecting the equipment. - Air Source Connection: When connecting the air source, ensure the specifications meet the requirements and pay attention to the cleanliness and dryness of the air source.
Parameter Settings: - Basic Parameter Settings: Including oscillation angle, pressure range, etc., set according to actual application needs. - Advanced Function Configuration: Such as angle adjustment, smc magnetic sensorposition, etc., configure according to specific application scenarios to achieve more complex control functions.
Maintenance and Inspection: - Regular Inspection: Check the appearance of the cylinder for damage, dust on the heat sink, and wear of the cushion. Regularly clean the dust on the heat sink and cushion to ensure the smooth operation of the heat dissipation system. - Parameter Verification: Regularly verify the parameter settings of the cylinder to ensure they remain consistent with actual application needs. - Fault Diagnosis: When the equipment fails, promptly check the fault code and troubleshoot according to the fault diagnosis guide in the manual.
Precautions:
Environmental Conditions: Avoid using the product in environments with high temperatures, high humidity, or strong electromagnetic interference, as it may affect its performance and lifespan.
Air Source Requirements: Ensure the air source pressure is stable to prevent damage to the cylinder from pressure fluctuations. After the equipment is disconnected from the air source, wait for a certain period before reconnecting to avoid damage to the equipment.
Safe Operation: Avoid contact with live parts during equipment operation to ensure the safety of operating personnel. When performing maintenance and inspection, the air source must be disconnected, and the cushion must be fully depressurized.
Frequently Asked Questions (FAQ):
How to adjust the angle of the small air cylinders?
The Importance of Angle Adjustment: Angle adjustment is an important step to ensure the cylinder stops at a specific position, improving control accuracy and system stability. When adjusting the angle, first ensure the cylinder is in a stationary state.
Precautions During Adjustment: During the adjustment process, use the angle adjustment screw for fine-tuning. Ensure the shaft type and installation position of the cylinder are correct to avoid damage to the cylinder during adjustment.
Effects After Adjustment: After completing the angle adjustment, the cylinder will stop according to the set angle, meeting the application requirements for high-precision control.
How to configure the interface of the small air cylinders?
Interface Type: The CRB2BW30-90SZ small air cylinders supports two interface positions: side of the cylinder and axial. Users can choose the appropriate interface position according to actual needs for configuration.
Interface Connection: When configuring the interface, ensure the air hose is connected correctly. Use suitable air hoses and fittings for connection, and ensure the air hose's sealability.
Parameter Settings: Set the connection parameters of the cylinder according to the interface position requirements. At the same time, ensure the connection parameters are consistent with the air source to achieve a reliable connection.
How to select the operating pressure of the small air cylinders?
Selection Based on Load Demand: When selecting the operating pressure of the cylinder, determine it according to the actual load situation. If the load is light, a lower operating pressure can be chosen; if the load is heavy or there is a large starting torque demand, a higher operating pressure should be selected.
Consideration of Safety Factor: When selecting the operating pressure, also consider the safety factor of the system. It is usually recommended to choose a pressure slightly higher than the minimum operating pressure to cope with load fluctuations and emergencies.
Overload Capacity: The CRB2BW30-90SZ small air cylinders has a certain overload capacity and can withstand a load exceeding the rated pressure for a short time. However, long-term overload can affect the cylinder's lifespan and performance, so try to avoid long-term overload operation when selecting the operating pressure.
What is the cooling method of the small air cylinders?
Cooling Method: The CRB2BW30-90SZ small air cylinders uses natural cooling, dissipating heat through the heat sink on the cylinder body and end cap.
Installation Requirements: When installing the cylinder, ensure there is enough space around it for air circulation. Avoid installing the cylinder in a closed or poorly ventilated environment, as it may affect the cooling effect.
Maintenance and Care: Regularly clean the dust on the heat sink to effectively prevent equipment overheating due to poor cooling. At the same time, check the integrity of the heat sink to ensure its normal operation.
How to avoid electromagnetic interference with the small air cylinders?
Built-in Filter: The cylinder itself does not produce electromagnetic interference, but to reduce external electromagnetic interference, it is recommended to use filters in the air source and control circuits.
Wiring Precautions: When wiring, try to avoid placing signal wires close to air source wires to reduce electromagnetic interference. At the same time, use shielded cables for signal wire connections and ensure the shielding layer is properly grounded.
Grounding Measures: Good grounding is an important means to reduce electromagnetic interference. Ensure the equipment is properly grounded and complies with national and local electrical safety regulations.
What are the protection functions of the small air cylinders?
Overload Protection: When the cylinder load exceeds the rated value, the cylinder will automatically stop running to protect the cylinder and equipment.
Overheat Protection: The cylinder is equipped with a temperature sensor inside, which will automatically shut down when the temperature exceeds the set value to prevent damage caused by overheating.
Overpressure and Underpressure Protection: When the air source pressure is too high or too low, the cylinder will automatically shut down to protect the equipment. In addition, it also has short-circuit protection and phase loss protection functions to ensure the safe operation of the system.
How to perform regular maintenance on the small air cylinders?
Appearance Inspection: Regularly check the appearance of the cylinder for damage or abnormalities, such as cracks in the shell or loose screws.
Cooling System Maintenance: Clean the dust on the heat sink to ensure the normal operation of the cooling system. Check the integrity of the heat sink, and replace it in a timely manner if there are any abnormalities.
Electrical Connection Inspection: Check whether the air source and signal wire connections are firm to ensure good contact. At the same time, check the operating state of the cylinder and deal with any abnormalities in a timely manner.
What should be noted when installing the small air cylinders?
Installation Location: Choose an environment with good ventilation, free of dust, and non-corrosive gases for installation, avoiding installing the cylinder in environments with high temperatures, high humidity, or strong electromagnetic interference.
Installation Method: Ensure the cylinder is installed vertically for proper heat dissipation. Use appropriate fixing methods during installation to prevent vibration from affecting the equipment.
Air Source Connection: When connecting the air source, ensure the specifications meet the requirements and pay attention to the cleanliness and dryness of the air source. At the same time, ensure the equipment is properly grounded.
How to select the control mode of the small air cylinders?
Selection Based on Application Demand: For applications requiring high-precision angle control, models with a smc magnetic sensor can be chosen; for general constant-speed control applications, the basic type can be selected.
Characteristics of Control Modes: Models with a smc magnetic sensor can achieve high-precision angle control and are suitable for applications with high control accuracy requirements. The basic type is simple and easy to use, suitable for general constant-speed control.
Parameter Settings: After selecting the control mode, set the corresponding parameters according to specific application needs to achieve the best control effect.
How to set the frequency setting channel of the small air cylinders?
Frequency Setting Method: The frequency can be set through the cylinder panel, external analog signals, or digital signals. Users can choose the appropriate frequency setting method according to actual application needs.
Signal Source Requirements: When setting the frequency setting channel, ensure the stability and accuracy of the signal source. For example, when using external analog signals for frequency setting, ensure the stability and interference resistance of the signal.
Parameter Configuration: Configure the corresponding parameters according to the selected frequency setting method. For example, for external analog signal setting, set the input range of the signal and the corresponding frequency range.
