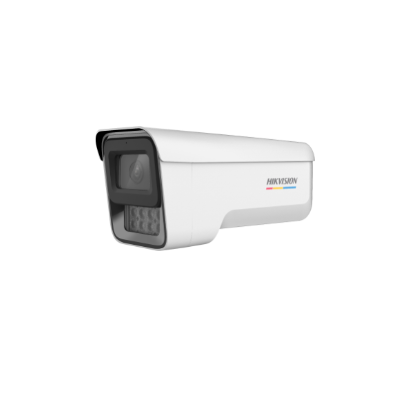

Product characteristics
Full color high sensitivity sensor, F1.0 large aperture lens, provides clearer video stream input
The maximum resolution is 1920 × 1080@25 fps, and real-time images can be output at this resolution
Support ROI area of interest enhancement coding, support Smart265/264 coding, can adapt to adjust the bit rate allocation according to the scenario, effectively save storage costs
Support backlight compensation, strong light suppression, 3D digital noise reduction, 120 dB wide dynamic
Support soft light filling, irradiation distance up to 50 m
Built-in 1 built-in microphone
Comply with IP66 dustproof and waterproof design, high reliability
Product parameter
camera
Sensor type
1/2.7" Progressive Scan CMOS
Minimum illumination
Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
shutter
From 1/3 s to 1/100,000 s
Wide dynamic
120 dB
Lens
Focal length & Field of view Angle
2.8mm, horizontal field of view: 106°, vertical field of view: 56°, diagonal field of view: 126°
4 mm, horizontal field of view Angle: 83°, vertical field of view Angle: 44°, diagonal field of view Angle: 99°
6 mm, horizontal field of view Angle: 54°, vertical field of view Angle: 29°, diagonal field of view Angle: 63°
Lens size interface
M12
Aperture type
Fixed aperture
Maximum number of stops
F1.0
Depth range
2.8 mm: 1.4 m~∞
4 mm: 2.1 m~∞
6 mm: 4.5 m~∞
Fill-in light
Prevent overexposure of fill light
support
Fill light type
Soft light lamp
Fill distance
Up to 50 m
video
Maximum image size
1920 x 1080
Main stream frame rate resolution
50 Hz: 25 fps (1920 × 1080,1280 × 720)
Substream frame rate resolution
50 Hz: 25 fps (640 × 480,640 × 360)
Video compression standard
Primary stream: H.265/H.264
Substream: H.265/H.264/MJPEG
Video compression bit rate
32 Kbps~8 Mbps
H.264 encoding type
BaseLine Profile/Main Profile/High Profile
H.265 Code type
Main Profile
Smart264 coding
Main stream support
Smart265 Code
Main stream support
Rate control
Fixed bit rate, variable bit rate
ROI
Supports one fixed area for the main stream
Audio frequency
Audio compression standard
G. 711 ulaw/g. 711 alaw/g. 722.1 G / 726 / MP2L2 / PCM/AAC - LC
Audio compression bit rate
64 Kbps (G.711 ulaw/G.711 alaw) /16 Kbps (G.722.1) /16 Kbps (G.726) /32~160 Kbps (MP2L2) /16~64 Kbps (AAC-LC)
Audio sampling rate
8 kHz/16 kHz
Audio ambient noise filtering
support
network
Network protocol
TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, SMTP, IGMP, QoS, UDP, Bonjour, SSL/TLS, HTTPS, DDNS, UPnP, 802.1x, IPv6
Preview the number of routes at the same time
Up to 6 channels
Interface Protocol (API)
Open Network Video Interface, ISAPI, SDK, GB28181 (2016)
User management
Up to 32 users can be divided into three levels of user rights management: administrator, operator, and common user
Network storage
Supports NAS (NFS, SMB, and CIFS)
client
iVMS-4200
Browser
Use plug-in preview: IE10, IE11;
Preview using native services: Chrome 57.0+, Firefox 52.0+
Graphics
Image setting
Image, rotation, video mask, saturation, brightness, contrast, sharpness, AGC, white balance can be adjusted through the client or browser
Day-night switching mode
Day, night, automatic, timed switch
Image enhancement
Backlight compensation, strong light suppression, 3D digital noise reduction
port
network
1 RJ45 10 M/100 M adaptive Ethernet port
Audio frequency
1 built-in microphone
Smart function
Alarm trigger
Motion detection, occlusion alarm, anomaly
Smart event
Area intrusion detection, breach detection
General norm
Linkage mode
Upload FTP/NAS, Upload center, mail, video, capture
Product size
95.4 x 102.1 x 215.3 mm
Package size
260 × 125 × 125 mm
Equipment weight
WD Model: 650 g
DWD model: 630g
Packing weight
WD Model: 820g
DWD Model: 800 g
Start-up and working temperature and humidity
-30 °C~60 °C, humidity less than 95% (no condensation)
General function
Heartbeat, password protection, watermarking, IP address filtering, pixel calculator
factory data reset
Support client or browser recovery
Current and power consumption
DC: 12V, 0.54A, maximum power consumption: 6.5W
PoE: 802.3af, 36V ~ 57V, 0.20A ~ 0.13A, maximum power consumption: 7.5W
*DWD models do not support PoE
Power supply mode
DC: 12 V ± 25%, support anti-reverse protection
PoE: 802.3af, Class 3
*DWD models do not support PoE
Power interface type
Ø 5.5mm round mouth
authentication
Defense
IP66
