peculiarity

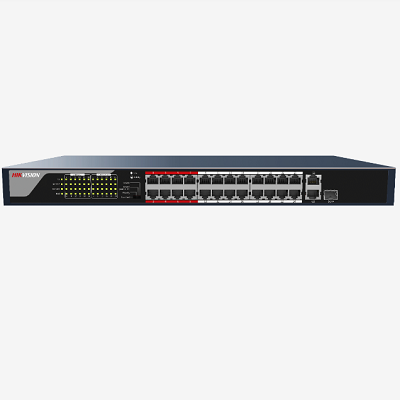

It provides 24 100 gigabit PoE electrical ports, 1 gigabit electrical port, and 1 gigabit photoelectric multiplexing port
The maximum transmission distance can reach 200-300 meters. The type and quality of the network cable and the performance of the terminal network port will affect the transmission distance
Gigabit uplink bandwidth Solves the cascading bandwidth bottleneck
Large cache design, high-definition video transmission without delay;
Support plug and play, no configuration required;
Store-and-forward switching mode;
Supports automatic learning and aging of MAC addresses.
4kV lightning protection improves the robustness of the system;
Supports wall mounting, desktop mounting, and rack mounting.
argument
Functional characteristics
Port specification
24 100 gigabit PoE electrical ports, 1 gigabit electrical port, 1 gigabit photoelectric multiplexing port
Switching mode
store-and-forward
PoE function
PoE standard
IEEE 802.3af,IEEE 802.3at
PoE port
24 100 Mbit PoE electrical ports
Maximum power supply for a port
30W
PoE remote
Port 17——24
Performance parameter
Exchange capacity
8.8Gbps
Packet forwarding rate
6.55 Mpps
MAC address capacity
16 K
cache
4 Mbits
Universal parameter
Dimensions (width × height × depth)
440mm(L)×284mm(W)×44mm(H)
weight
4.035 kg
Operating temperature
0 ℃ to 40 ℃
Working humidity
(10 -- 90) %RH, no condensation
Storage temperature
–40 °C——85 °C
Storage humidity
(5 -- 95) %RH, no condensation
Installation mode
Desktop mount, wall mount, rack mount
Power supply mode
AC220V input
Red mouth
Port 1——8
fan
Have a fan
Overall power consumption
410W
Surge protection
4KV
