Product introduction
It covers switch devices for security network access layer, aggregation layer and core layer. Including support for 250m remote PoE power supply security private access switch, support for Hikang cloud management of cloud management switch, intelligent topology, convenient operation and maintenance.
Product characteristics

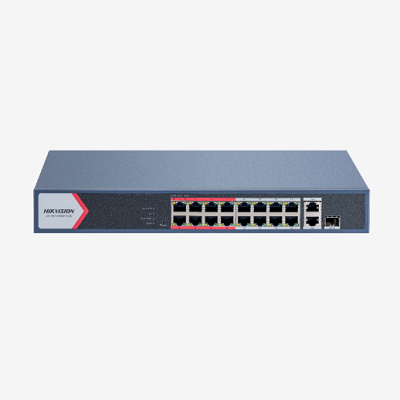

It provides 16 100 gigabit PoE electrical ports, 1 gigabit photoelectric multiplexing port and 1 gigabit electrical port.
Support IEEE 802.3at/af standard.
Supports IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standards.
Supports iVMS-4200 client and Hikang Internet APP management.
Supports security network topology management, port management, and remote upgrade.
The maximum transmission distance can reach 200-300 meters. The type and quality of the network cable and the performance of the terminal network port will affect the transmission distance
Support red mouth guarantee.
Support 6 KV surge prevention (PoE port).
Supports PoE output power management. The maximum PoE output power is 130 W.
Rugged, high-strength metal housing.
Product parameter
Functional characteristics
VLAN
VLAN support
Link aggregation
Supports static link aggregation
DHCP CLIENT
Support DHCP clients
Terminal security protection
Supports terminal security protection
Storm control
Support storm control
Flow control
Support flow control
Switching mode
store-and-forward
Network standard
IEEE802.3; The IEEE802.3 u; IEEE802.3 x; IEEE802.3 ab. IEEE802.3 z
Port speed limiting
Rate limiting for incoming and outgoing directions of all ports is supported
Port isolation
Support port isolation
Port mirroring
Port mirroring
LLDP
Supports LLDP
SSH
Support SSH
Web management
Support web management
PoE guard dog
Supports PoE watchdog
Obtain the MAC address table
Obtain MAC address table
Management and maintenance
Supports iVMS-4200 client management and Hikang Internet APP management
PoE function
Maximum power supply of the whole machine
130 W
PoE standard
Support IEEE 802.3at/af device power supply
PoE port
Ports 1 to 16
Maximum power supply for a port
30 W
Power supply core
Supports 8-core power supply. 1/2/3/6 and 4/5/7/8 of the network cable supply power at the same time
PoE remote
Ports 1 to 16
Performance parameter
Exchange capacity
9.2 Gbps
MAC address capacity
16 k
cache
4 Mbits
Packet forwarding rate
6.84 Mpps
Universal parameter
port
16 100 gigabit PoE ports + 1 gigabit photoelectric multiplexing port + 1 Gigabit electrical port
Dimensions (width × height × depth)
335.00 mm x 44.50 mm x 226.00 mm
weight
1.83kg
Operating temperature
0 °C——45 °C
Working humidity
5% - 95% (no condensation)
Storage temperature
–40 °C——85 °C
Storage humidity
5% - 95% (no condensation)
Overall power consumption
150W
Installation mode
Rack mount (1U high, 13 inches wide)
Power supply mode
AC220V
Red mouth
Ports 1 to 8
fan
Have a fan
Surge protection
Support 6 KV surge protection (PoE port)
Equipment operation and maintenance
Topological presentation
Supports topology page display
Device status alarm
Port connection alarm, PoE_MAX alarm, PoE connection alarm
Port configuration
Supports port rate, flow control, and port enablement configurations
Port statistics
Supports real-time statistics on port transceiver rates and 7-day peak transceiver rates
Haikang Internet APP
Support Haikang Internet APP
SADP
Support SADP
4200 Client
Supports 4200 clients
Equipment maintenance
Supports remote upgrade, default parameter restoration, log viewing, and basic network parameter configuration
