Product introduction

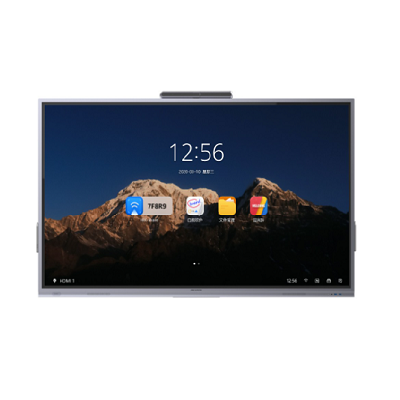

LCD conference panel is a set of computer, projector, electronic whiteboard, speaker, ultra high-definition TV, advertising machine and other equipment functions in one intelligent interactive equipment. It integrates a number of technologies and applications required for ultra-clear display, touch writing, wireless screen projection, multi-screen interaction, and remote collaboration, providing smart office systematic solutions for government units, financial organizations, science and technology industries, and real estate enterprises. Size covers 55-98 inches, to meet the needs of large, small and medium conference room installation.
Product characteristics
4K display, tiny: 4K resolution, picture details can be seen; Anti-glare anti-fingerprint, not afraid of strong light;
High-speed writing, "front" Manbiou: 1mm touch accuracy, writing natural and smooth; Intelligent pen optimization, make the writing back to nature;
Conference content, one-click sharing: The written content can be shared by scanning code and email, focusing on the conference content and improving efficiency;
Free annotation, writing without boundaries: any interface to annotate, one click of inspiration record; The white board supports 20 people to write at the same time, and the convergence of thinking blooms infinitely wonderful;
Wireless projection screen, showing no "line" system: notebook/desktop/mobile phone /pad wireless projection screen, wiring troubles are no longer; Support two-screen/four-screen, the solution comparison is more intuitive;
Collaborative office, communication zero distance: support software and hardware video conferencing, remote collaboration zero distance; Large scene multi-screen interaction, touch and write large screen synchronous display.
Product parameter
Product model
Product model
DS-D5D75RB/B
Display parameter
Display size
75-inch LED backlight
Backlight type
DLED
Physical resolution
3840 × 2160 @60 Hz
Color depth
10 bit
Contrast
5000:1 (Typ.)
Response time
6 ms
Colour gamut
90% NTSC (CIE1931) (Typ.)
Refresh rate
60 Hz
Angle of visibility
178°(H)/178°(V)
System parameter
Operating system
Android 9.0
Internal memory
8 GB
Built-in storage
64 GB
Network card
Built-in Gigabit network adapter, supports routing function
Touch parameter
Touch mode
Infrared touch control
glass
AG smooth glass
Contact point
twenty
Touch response speed
< 10 ms
Touch accuracy
More than 90% of the touch area is ±1 mm
Touch process
Zero lamination
Functional parameter
Internal horn
2.1 Channel, 2×10W+20W
Bluetooth
Built-in BLE Bluetooth Low power module, supporting Bluetooth version 5.2 and later
Interface parameter
Audio and video input interface
HDMI IN 2 channels, Max. 4K@60 Hz; LINE IN 1;
Audio and video output interface
LINE OUT 1 route; HDMI OUT 1 channel, Max. 4K@60 Hz;
Control interface
RS-232 one
Network interface
RJ45(Gigabit network ports) Two
Data transmission interface
USB port front USB 3.0 x 2, onboard USB 3.0 x 1+USB 2.0 x 1+Touch USB 2.0 x 1,
Type-C has one full-function interface, supporting USB 2.0, DP and charging functions, and supporting NFC.
Operating environment
Operating temperature
0 ℃ -- 40 ℃
Working humidity
10% —— 90% RH
Universal parameter
Power source
AC 100 V -- 240 V, 50/60 Hz
Camera parameter
pixel
support
Field Angle
support
Microphone parameter
specification
support
Microphone function
support
Pickup distance
support
Sampling rate
support
Microphone sampling bit
support
