peculiarity

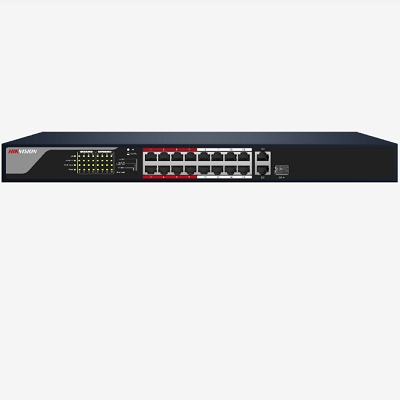

It provides 16 100 gigabit PoE electrical ports, 1 gigabit electrical port, and 1 gigabit photoelectric multiplexing port
9-16 ports support the maximum transmission distance of up to 200-300 meters, the type and quality of the network cable, the performance of the terminal network port will affect the transmission distance
Gigabit uplink bandwidth Solves the cascading bandwidth bottleneck
Large cache design, high-definition video transmission without delay
Supports plug and play and does not require configuration
Store-and-forward switching mode
Supports automatic MAC address learning and aging
4kV lightning protection improves the robustness of the system
Supports wall mounting, desktop mounting, and rack mounting
argument
Functional characteristics
Port specification
16 100 gigabit PoE electrical ports,1 gigabit electrical port,1 gigabit photoelectric multiplexing port
Switching mode
store-and-forward
PoE function
PoE standard
IEEE 802.3at/af
PoE port
Ports 1 to 16
Maximum power supply for a port
30 W
Maximum power supply of the whole machine
230 W
PoE remote
Ports 9 -- 16
Performance parameter
Exchange capacity
7.2 Gbps
Packet forwarding rate
5.36 Mpps
cache
2.75 M
Universal parameter
Dimensions (width × height × depth)
440mm × 44mm × 178mm
weight
2.235 kg
Operating temperature
0 °C - 40 °C
Working humidity
10%-90% (non-condensing)
Storage temperature
-40°C-85°C
Storage humidity
(5 -- 95) %RH, no condensation
Installation mode
Rack mount (1U high, 19 inches wide)
Power supply mode
220V -- 50Hz 2.5A Max
Red mouth
Ports 1 to 8
fan
Have a fan
Overall power consumption
250W
Surge protection
4 KV
FAQ
1.Who are We?
Beijing Zhongping Technology Co., LTD., is a one-stop integrated service provider of intelligent manufacturing, belongs to the Gong Doctor Group, is a scientific research, design, marketing, technical services, industrial Internet, international import and export services as one of the science and technology companies.
2.What can you buy from us?
PLC, inverter, human-machine interface, hydraulic products, low-voltage power distribution, industrial robots and core components
3.Is the item in stock or need to be purchased from another supplier?
We have a large inventory of goods and have our own warehouse.
4.What advantages do we have over other suppliers?
Our company has a large amount of inventory and a number of warehouses, but also in the country's important industrial provinces and cities with offices and a number of overseas service points. To provide you with intelligent manufacturing one-stop comprehensive services, save efforts, labor and cost.
5.Can you provide 100% new original authentic products?
We only sell new original genuine, no renovation, no fake, only for the original factory original!
6.How long is the delivery time?
If there is a stock, it will take 2-3 working days to ship, if the quantity is large, it will take 5-7 working days after receiving the payment, if it is not a conventional model, it will take some time, we will inform you of the specific delivery time.
7.Is there technical support available?
Of course, we have a professional technical team that can help you solve technical problems.
8.How do we guarantee quality?
We have three processes to control the quality of goods.
1). Our engineers will inspect the production and quality control in the factory regularly.
2) Incoming materials shall be inspected by experienced purchasing engineers before they can be stored.
3). At least 2 people in the logistics department cross-check the goods to be sent before delivery.
9.Can you guarantee the safe and reliable delivery of your products?
Yes, we strictly adopt the international standard packing. We also use special packaging for dangerous goods, and refrigerated shipping for items with temperature requirements. Special item packaging and general cargo standard packaging requirements may incur additional costs.
10.How about the freight?
The cost depends on how you choose to get the goods. Express is usually the fastest but also the most expensive way. Sea freight is the best solution for large quantities of goods. The exact shipping cost depends on the purchase amount、quantity and weight of your order. Please feel free to contact us for more information.
