Product characteristics

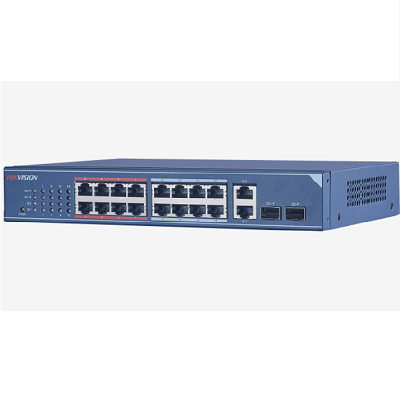

Support 16 100 megabit electrical ports, 2 gigabit photoelectric multiplexing ports
Supports IEEE802.3, IEEE802.3U, and IEEE802.3x
Supports store-and-forward switching
Supports video red port protection technology
More than 100,000 hours of average trouble-free time
Rugged, high-strength metal housing
Fanless design, high reliability
Product parameter
Functional characteristics
Port specification
16 100 megabit electrical ports, 2 gigabit photoelectric multiplexing ports
Switching mode
store-and-forward
Performance parameter
Exchange capacity
7.2Gbps
Packet forwarding rate
5.36 Mpps
MAC address capacity
4 K
cache
2.75 Mbits
Universal parameter
Dimensions (width × height × depth)
257 mm * 44.5 mm * 176 mm
weight
1300 g
Operating temperature
-10 °C - 60 °C
Working humidity
5%-95% (non-condensing)
Storage temperature
-40 °C - 85 °C
Storage humidity
5%-95% (non-condensing)
Installation mode
Rack mount (1U high, 13 inches wide)
Power supply mode
Supports 220 V AC
Red mouth
Ports 1 to 8 support red ports
fan
fanless
Overall power consumption
≤10 W
Surge protection
4 KV
