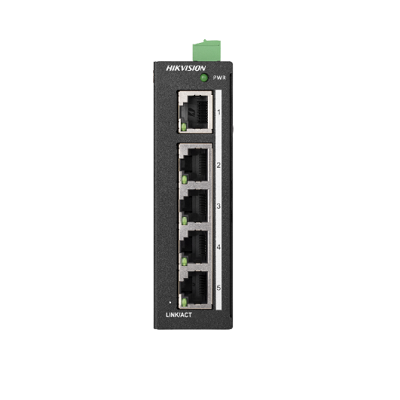

Product introduction
The product is designed according to industrial standard, strong structure and easy to use. Wide operating temperature range, good reliability, suitable for parks, roads, factories, mines, buildings and other scenarios.
Product characteristics
• Support IEEE 802.3, IEEE 802.3U, IEEE 802.3x.
• Support 6 KV surge protection.
• Line speed forwarding.
• Store-and-forward switching mode.
• Rugged, high-strength metal housing.
• Industrial rail installation
• Fanless design, high reliability.
• Outdoor wide temperature design (-40 -- 75 degrees)
Product parameter
Functional characteristics
Port specification
1, DS-3T0105:5 100 megabit electrical ports
Flow control
support
Switching mode
store-and-forward
Operating temperature
-40 -- 75 degrees
port
Network interface type
RJ45 electrical port, full duplex, MDI/MDI-X adaptive
Performance parameter
Exchange capacity
1, DS-3T0105:1 Gbps
Packet forwarding rate
1. DS-3T0105:0.744Mpps
MAC address capacity
1. DS-3E0105:2K
cache
1, DS-3E0105:768kbits
Be common
Overall dimensions (width × depth × height) (Mm)
DS-3T0105:103X30.2X69.2mm
weight
DS-3T0105:0.19 kg
Working humidity
5-95%
Storage temperature
-40 -- 85 degrees
Storage humidity
5-95%
