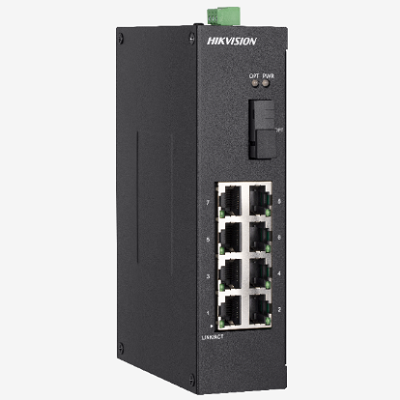

Product introduction
The product transmission distance is long, the farthest support fiber transmission 80km; Strong anti-interference ability, can be used in pairs, can also be used with the switch 100 Mbit network electrical port or optical port. Flexibly respond to a variety of network access and networking requirements, covering both managed and unmanaged products.
Product characteristics
8 10/100/1000BaseT (X) adaptive RJ45 interfaces;
One 1000BaseFX Ethernet fiber port
Single mode single fiber, transmission distance up to 20, 80 kilometers
Supports IEEE 802.3, IEEE 802.3U, and IEEE 802.3x networking standards
Store-and-forward switching mode;
The average time without failure MTBF > 100,000 hours;
All metal closed structure, the working temperature range can reach -30-70 °C;
Industrial grade design, easy to install, plug and play
Product parameter
Be common
Network parameter
Standard
IEEE 1000Base-X/IEEE 1000Base-FX
Exchange capacity
18 Gbps
Packet forwarding rate
13.392 Mpps
Be common
Dimensions (length × height × depth)
158 mm x 97.2 mm x 42.2 mm
weight
0.395 kg
Operating temperature
-30-70 ℃
Working humidity
5%-95%
Storage temperature
-40-85 ℃
Storage humidity
5%-95%
shell
Sheet metal without fan
Maximum power consumption
12 W
Power supply specification
12 VDC, 1 A
Fiber parameter
Fiber type
Single mode single fiber,9/125 um
Transmission distance
DS-3D208T-A(SC) : 20KM
DS-3D208T-A(FC) : 20KM
DS-3D208T-C(SC) : 80KM
DS-3D208T-C(FC) : 80KM; DS-3D208T-A(FC) : 20KM; DS-3D208T-A(SC) : 20KM
Receiving sensitivity
DS-3D208T-A(SC) : -21dB
DS-3D208T-A(FC) : -21dB
DS-3D208T-C(SC) : -26dB
DS-3D208T-C(FC) : -26dB; DS-3D208T-A(FC) : -21dB; DS-3D208T-A(SC) : -21dB
