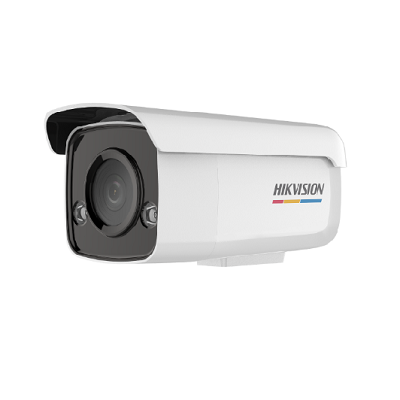

Product characteristics
Full-color high sensitivity sensor, F1.0 large aperture lens, provides clearer video stream input for intelligent applications, and comprehensively improves the accuracy of intelligent business processing
Using deep learning hardware and algorithms, it supports boundary detection, area intrusion detection, entry area detection and exit area detection
The highest resolution is 3840 × 2160 @ 20 fps
Support backlight compensation, strong light suppression, 3D digital noise reduction, 120 dB wide dynamic, adapt to different environments
Support four microphone array, effectively reduce ambient noise, greatly improve audio quality, audio perception range up to 10 m
1 audio output, 1 audio input, 1 alarm output, 1 alarm input
WDA3-LS model: Supports DC12 V, 100 mA power output for pickup power supply
Comply with IP66 dustproof and waterproof design, high reliability
Support soft light filling, irradiation distance up to 30 m
Product parameter
Sensor type
1/1.2" Progressive Scan CMOS
Minimum illumination
Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
shutter
1/3 s -- 1/100,000 s
Wide dynamic
120 dB
Depth range
2.8mm: 4.5m -- infinity
4mm: 7m -- infinity
6mm: 13m -- infinity
Lens
Focal length & Field of view Angle
2.8mm, horizontal field of view: 101.6°, vertical field of view: 52.4°, diagonal field of view: 124°
4 mm, horizontal field of view Angle: 88.2°, vertical field of view Angle: 48.7°, diagonal field of view Angle: 101.8°
6 mm, horizontal field of view Angle: 54°, vertical field of view Angle: 30.2°, diagonal field of view Angle: 62.2°
Maximum number of stops
F1.0
Aperture type
Fixed aperture
Fill-in light
Fill distance
Up to 30 m
Prevent overexposure of fill light
support
Fill light type
Soft light lamp
video
Maximum image size
3840 × 2160
Main stream frame rate resolution
50 Hz: 20 fps (3840 × 2160,3200 × 1800,2688 × 1520,1920 × 1080,1280 × 720)
Substream frame rate resolution
50 Hz: 20 fps (1280 × 720,640 × 480,640 × 360)
* The frame rate of the substream cannot exceed the maximum frame rate of the current main stream
Video compression standard
Primary stream: H.265/H.264
Substream: H.265/H.264/MJPEG
Video compression bit rate
32 Kbps——16 Mbps
H.264 encoding type
BaseLine Profile/Main Profile/High Profile
H.265 Code type
Main Profile
Smart264 coding
Main stream support
Smart265 Code
Main stream support
Rate control
Fixed bit rate, variable bit rate
SVC
support
ROI
Supports one fixed area for the main stream
Audio frequency
Audio ambient noise filtering
support
Audio sampling rate
8 kHz/16 kHz/32 kHz/ 44.1kHz /48 kHz
Audio compression standard
G. 711 ulaw/g. 711 alaw/g. 722.1 G / 726 / MP2L2 / PCM/MP3
Audio compression bit rate
64 Kbps (G.711 ulaw/G.711 alaw) /16 Kbps (G.722.1) /16 Kbps (G.726) /32 -- 192 Kbps (MP2L2) /8 -- 320Kbps (MP3)
network
Preview the number of routes at the same time
Up to 6 channels
Interface Protocol (API)
Open Network Video Interface, ISAPI, SDK, GB28181 (2011/2016)
Network protocol
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
User management
Up to 32 users can be divided into three levels of user rights management: administrator, operator, and common user
Network storage
NAS (Supported by NFS, SMB, and CIFS)
client
iVMS-4200
Browser
Use plug-in preview: IE10, IE11
Preview using native services: Chrome 57.0+, Firefox 52.0+
Graphics
Day-night switching mode
Day, night, automatic, timed switch
Area clipping
nonsupport
Image enhancement
Backlight compensation, strong light suppression, 3D digital noise reduction
Image setting
Saturation, brightness, contrast, sharpness, AGC, white balance can be adjusted by client or browser
port
Give an alarm
1 input, 1 output (alarm output supports DC24V, 1A or AC24V, 1A)
Audio frequency
1 built-in microphone, 1 built-in speaker
1 input (Line in) : 2-core terminal, maximum input amplitude: 3.3 Vpp, input impedance: 4.7 kΩ, interface type: unbalanced
1 Line out: 2-core terminal, maximum output amplitude: 3.3Vpp, output impedance: 100Ω, interface type: unbalanced
network
1 RJ45 10 M/100 M adaptive Ethernet port
Power output
-WDA3-LS model support: DC12 V, 100 mA, only for pickup power use
Professional Intelligence (Deep Learning Algorithm)
Intelligent alert
Support area intrusion, boundary detection, enter area, leave area functions
General norm
Linkage mode
Upload FTP/NAS, upload center, mail, video, capture picture, sound alarm
General function
Mirroring, video masking, heartbeat, password protection, watermarking, IP address filtering, Pixel calculator
factory data reset
Support client or browser recovery
Start-up and working temperature and humidity
-30 ℃ - 60 ℃, humidity less than 95% (no condensation)
Power supply mode
DC: 12 V ± 25%, support anti-reverse protection
PoE: 802.3af, Class 3
Current and power consumption
DC: 12 V, 0.888 A, maximum power consumption: 10.5W
PoE: 802.3af, 36V-57V, 0.35A-0.22A, maximum power consumption: 12.5W
- The WD model supports POE power supply
Power interface type
Ø 5.5mm round mouth
Product size
93.5 × 93.3 × 181.3 mm
Package size
235 × 120 × 125 mm
Equipment weight
770 g
Packing weight
970 g
authentication
Radiation level
Class A
Domestic routine certification
Type test, GB28181
Defense
IP66
