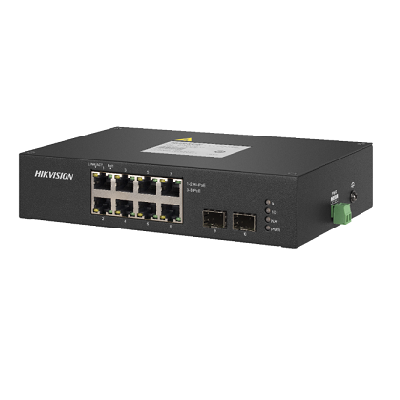

Product introduction
The product is designed according to industrial standard, strong structure and easy to use. Wide operating temperature range, good reliability, suitable for parks, roads, factories, mines, buildings and other scenarios.
Product characteristics
Hi-PoE port support IEEE 802.3at/af/bt (maximum 60 W output)
The PoE port supports IEEE 802.3at/af
Supports IEEE 802.3, IEEE 802.3U, and IEEE 802.3x
Support 6 KV surge protection (PoE port)
Dual uplink network design
Line speed forwarding, non-blocking design
Store-and-forward switching mode
Rugged, high-strength metal housing
No fan, -40 ° C to 75 ° C operating temperature
Product parameter
Functional characteristics
Switching mode
store-and-forward
Network standard
IEEE802.3; The IEEE802.3 u; IEEE802.3 x
PoE function
Hi-PoE port
1 -- 2; 1
PoE standard
Ports 1 -- 2: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Ports 3 -- 8: IEEE 802.3af, IEEE 802.3at; Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Ports 2 -- 4: IEEE 802.3af, IEEE 802.3at
Power supply core
Ports 1,2,7,8: Power on 1/2/3/6 and 4/5/7/8 of the network cable simultaneously
Ports 3 to 6: Power supply for 1/2/3/6 of the network cable. Ports 1 to 4: Power on 1/2/3/6 and 4/5/7/8 of the network cable simultaneously
PoE port
2 -- 4; 3 -- 8
Maximum power supply for a port
Ports 1 -- 2: 90 W
Port 3 -- 8:30 W; Port 1: 60 W
Ports 2 -- 4:30 W
Performance parameter
Exchange capacity
20 Gbps; 12 Gbps
Packet forwarding rate
14.88 Mpps; 8.928 Mpps
MAC address capacity
2 K; 4 K
Universal parameter
port
1 gigabit Hi-PoE electrical port, 3 gigabit PoE electrical ports, 2 gigabit optical ports; Two gigabit Hi-PoE ports, six gigabit PoE ports, and two gigabit optical ports
weight
0.38 kg; 0.585 kg
Dimensions (length × height × depth)
197 mm × 114.2 mm × 42.2mm; 158 mm x 101.2 mm x 31.6mm
Operating temperature
- 40-75 ℃
Working humidity
5% - 95% (no condensation)
Storage temperature
- 40-85 ℃
Storage humidity
5% - 95% (no condensation)
Power supply mode
Terminal (48-57 VDC)
Installation mode
Rail type
Surge protection
6 KV
