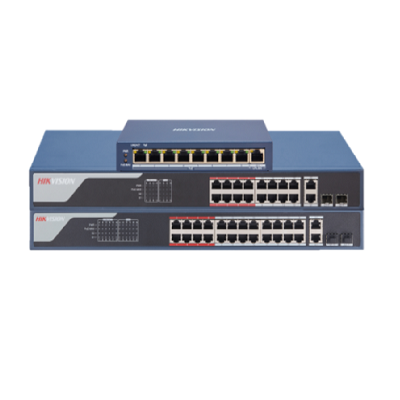

Product introduction
Covers switches for security network access, aggregation and core layers. It can provide 250m long distance POE power supply security dedicated access switch and high-end multi-service routing switch that integrates MPLS VPN, IPv6 and other network services, and can provide networking capabilities and solutions for 10,000 1080P(H.265) video devices.
Product characteristics
Support IEEE 802.3at/af standard.
Supports IEEE 802.3, IEEE 802.3U, IEEE 802.3x and IEEE 802.3AB standards.
Support iVMS-4200 client management, cloud management APP management.
Supports security network topology management and port management.
Supports remote upgrade.
Support 8-core power supply.
Supports transmission up to 250 m.
Support red mouth guarantee.
Support 6 KV surge prevention (PoE port).
Supports PoE output power management.
Line speed forwarding.
100 megabit network access design.
Store-and-forward switching mode.
Rugged, high-strength metal housing.
Product parameter
Functional characteristics
Switching mode
store-and-forward
Operation and maintenance management
Equipment maintenance
Supports remote upgrade, default parameter restoration, log viewing, and basic network parameter configuration
Topological presentation
Supports topology page display
Port configuration
Supports port rate, flow control, and port enablement configurations
Port statistics
Supports real-time statistics on port transceiver rates and 7-day peak transceiver rates
PoE function
PoE standard
IEEE 802.3af, IEEE 802.3at
Power supply core
Supports 8-core power supply. 1/2/3/6 and 4/5/7/8 of the network cable supply power at the same time
PoE port
Ports 1 to 16
Maximum power supply for a port
30 W
Maximum power supply of the whole machine
230 W
PoE remote
Ports 1 to 16
Universal parameter
weight
2.59kg
Working humidity
5% - 95% (no condensation)
Storage humidity
5% - 95% (no condensation)
Remote transmission port
Ports 1 to 16
Overall power consumption
250 W
