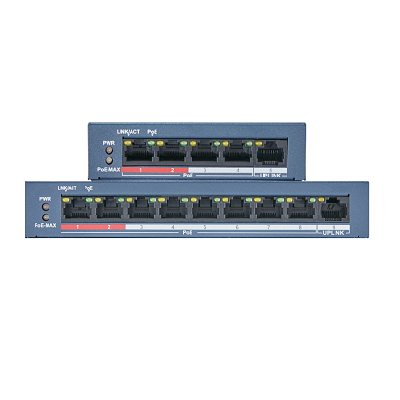

Product introduction: Cover for security network access layer, aggregation layer and core layer switch equipment. Including support for 250m remote PoE power supply security private access switch, support for Hikang cloud management of cloud management switch, intelligent topology, convenient operation and maintenance.
peculiarity
Support red mouth guarantee
Support 8-core power supply
Supports transmission up to 250 m
Supports PoE output power management
Line speed forwarding, non-blocking design
Store-and-forward switching mode
Rugged, high-strength metal housing
Fanless design, high reliability
argument
Functional characteristics
Switching mode
store-and-forward
Network standard
The IEEE802.3, IEEE802.3 u, IEEE802.3 x
PoE function
Hi-PoE port
There is no
PoE standard
IEEE802.3 af/IEEE802.3 ats
Power supply core
8-core power supply
PoE port
Port 1——8
Maximum power supply for a port
30 W
Maximum power supply of the whole machine
60 W
PoE remote
Port 1——8
Performance parameter
Exchange capacity
1.8Gbps
Packet forwarding rate
1.339 Mpps
MAC address capacity
2 K
Universal parameter
port
Eight 100 Mbit PoE ports, one 100 Mbit POE port
Remote transmission port
Port 1——8
High priority port
Port 1——2
weight
0.35kg
fan
There is no
Dimensions (length × height × depth)
170 mm x 27.6 mm x 93.1 mm
Operating temperature
0 °C——40 °C
Working humidity
5% - 95% (no condensation)
Storage temperature
-40 °C——85 °C
Storage humidity
5% - 95% (no condensation)
Power supply mode
DC 48 V
Installation mode
desktop
Overall power consumption
65 W
Surge protection
6 kV
