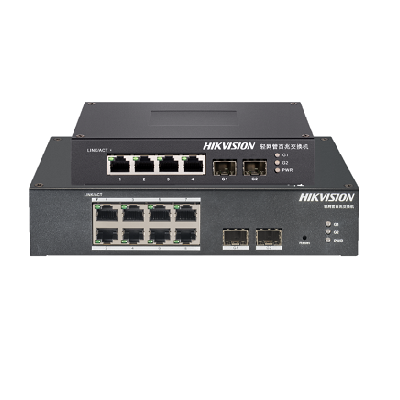

Product introduction
The product is designed according to industrial standard, strong structure and easy to use. Wide operating temperature range, good reliability, suitable for parks, roads, factories, mines, buildings and other scenarios.
Product characteristics
Support IEEE 802.3, IEEE 802.3U, IEEE 802.3x standards
Store-and-forward switching mode
Supports iVMS-4200 client management
Support Haikang Internet APP management
Supports WEB management and security network topology management
None Fan -40 ° C to 75 ° C Operating temperature
Rugged, high-strength metal housing
Support remote upgrade
Supports VLAN configuration based on IEEE802.1Q and traffic control
Supports ERPS ring network protocol
Product parameter
Functional characteristics
VLAN
support
Port mirroring
support
Port speed limiting
support
Port isolation
support
Storm control
support
ACL
support
SNMP
V1/V2c/V3
Switching mode
store-and-forward
Network standard
IEEE802.3; The IEEE802.3 u; IEEE802.3 x; IEEE802.3 ab. IEEE802.3 z
STP
Supports STP/RSTP
ERPS
support
SSH
support
Port statistics
support
Link aggregation
support
Management and maintenance
Supports iVMS-4200, WEB, Hikang Internet APP, and unified network management platform management
LLDP
support
QoS
support
Operation and maintenance management
Device reset
One-click reset
Equipment maintenance
Supports remote upgrade, default parameter restoration, log viewing, and basic network parameter configuration
Topological presentation
Supports topology page display
Port configuration
Supports port rate, flow control, and port enablement configurations
Device status alarm
Supports port connectivity alarms
Performance parameter
Exchange capacity
4.8 Gbps
Packet forwarding rate
3.58 Mpps
MAC address capacity
2 K
cache
1 Mbits
Universal parameter
Dimensions (length × height × depth)
158 mm x 101.2 mm x 31.6mm
weight
0.583 kg
Operating temperature
-40 °C——75 °C
Working humidity
5% - 95%
Storage temperature
-40 °C——85 °C
Storage humidity
5% - 95%
Installation mode
Rail type
Power supply mode
Dc power supply
Supply voltage
DC 12-36 V
Supply current
1 A
Whether the adapter comes with the factory
no
Class of protection
IP40
Mean time to failure (MTBF)
100,000 hours
port
Four hundred gigabit electrical ports, two gigabit optical ports
Remote transmission port
1-4 bites
High priority port
There is no
fan
There is no
Overall power consumption
< 12 W
Surge protection
Network port: common-mode 6 KV
