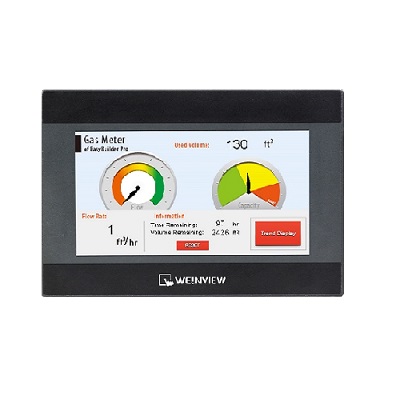

WEINVIEW man-machine interface MT8071iP2 display color :16.7M, processor: 32-bit RISC 528MHz, touch accuracy: action area length (X) 2%, width (Y) 2%.
peculiarity
Wide input voltage range 10.5-28VDC
7' 800x480 TFT LCD, LED backlight
Fanless cooling system
Built-in flash storage and perpetual calendar
COM2 RS-485 2W supports MPI 187.5K
NEMA4 / IP65 Panel protection class
Built-in power isolation protection
argument
Display :7"TFTLCD
Resolution :800 x 480
Brightness (cd/m2):300
Contrast ratio :500:1
Backlight type ED
Backlight life :>30,000 /JvBj
Display color :16.7M
LCD viewing Angle (T/B/L/R):70/50/70/70
Point distance (mm):0.1926(H) x 0.179(V)
Touch panel
Type: four-wire resistive
Touch accuracy: action area length (X) soil 2%, width (Y) soil 2%
memorizer
Flash Memory :128 MB
Memory (RAM):128 MB
Processor: 32-bit RISC 528MHz
I/O port
USB Host:2.0x 1
USB Client: None
Ethernet :10/100 Base-Tx 1
Serial interface :COM1: RS-232 4W, COM2:RS-485 2W/4W, do not support Mark/Space check mode
RS 485 Dual isolation protection: None
Perpetual calendar: Built-in
Power source
Input power supply :10.5 -- 28VDC
Power consumption :1A@12VDC; 450mA@24VDC
Power isolation: Built-in
Withstand voltage :500VAC (1 min)
Insulation impedance: over 50M at 500VDC
Anti-vibration :10 to 25Hz(X,Y,Z axis 2G 30 minutes)
specification
PCB coating: None
Case material: engineering plastic
Overall dimensions :200.4 x 146.5x 34 mm
Opening size :192 X 138 mm
Weight: About 0.52 kg
Installation mode: Panel installation
Operating environment
Protection level :NEMA4 / IP65 Compliant Front Panel
Storage temperature :-20° - 60°C (-4° - 140°F)
Operating temperature :0° -- 50°C (32° -- 122*F)
Relative ambient humidity :10% -- 90% (non-condensing)
authentication
CE:CE CE marked
Software: Software limited to simplified Chinese version EasyBuilderProV6.06.01 or later use EasyAccess2.0 (optional)
FAQ
1.Who are We?
Beijing Zhongping Technology Co., LTD., is a one-stop integrated service provider of intelligent manufacturing, belongs to the Gong Doctor Group, is a scientific research, design, marketing, technical services, industrial Internet, international import and export services as one of the science and technology companies.
2.What can you buy from us?
PLC, inverter, human-machine interface, hydraulic products, low-voltage power distribution, industrial robots and core components
3.Is the item in stock or need to be purchased from another supplier?
We have a large inventory of goods and have our own warehouse.
4.What advantages do we have over other suppliers?
Our company has a large amount of inventory and a number of warehouses, but also in the country's important industrial provinces and cities with offices and a number of overseas service points. To provide you with intelligent manufacturing one-stop comprehensive services, save efforts, labor and cost.
5.Can you provide 100% new original authentic products?
We only sell new original genuine, no renovation, no fake, only for the original factory original!
6.How long is the delivery time?
If there is a stock, it will take 2-3 working days to ship, if the quantity is large, it will take 5-7 working days after receiving the payment, if it is not a conventional model, it will take some time, we will inform you of the specific delivery time.
7.Is there technical support available?
Of course, we have a professional technical team that can help you solve technical problems.
8.How do we guarantee quality?
We have three processes to control the quality of goods.
1). Our engineers will inspect the production and quality control in the factory regularly.
2) Incoming materials shall be inspected by experienced purchasing engineers before they can be stored.
3). At least 2 people in the logistics department cross-check the goods to be sent before delivery.
9.Can you guarantee the safe and reliable delivery of your products?
Yes, we strictly adopt the international standard packing. We also use special packaging for dangerous goods, and refrigerated shipping for items with temperature requirements. Special item packaging and general cargo standard packaging requirements may incur additional costs.
10.How about the freight?
The cost depends on how you choose to get the goods. Express is usually the fastest but also the most expensive way. Sea freight is the best solution for large quantities of goods. The exact shipping cost depends on the purchase amount、quantity and weight of your order. Please feel free to contact us for more information.
