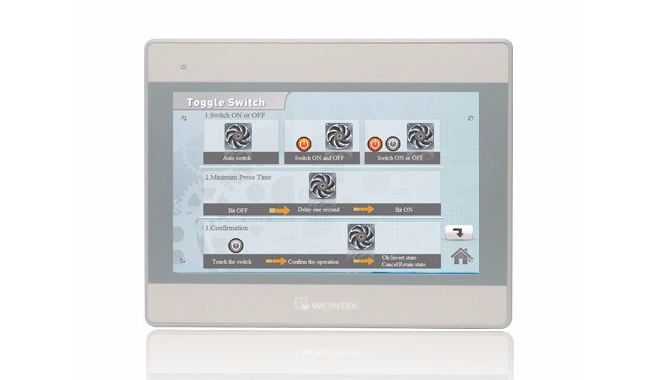

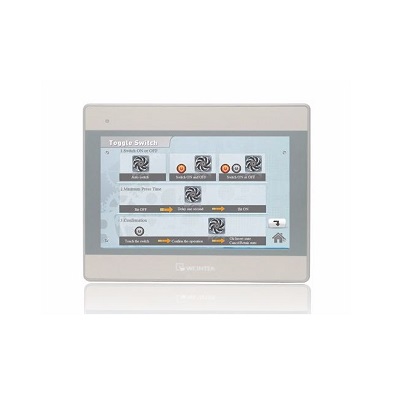

WEINVIEW efficient man-machine interface MT8071iE three sets of independent serial port, support with three different protocol controller communication at the same time, one screen multiple machines; Equipped with the Cortex A8 600MHz CPU and 128MB memory, it runs fast. The industry's highest 16 million color high chroma display, perfect presentation; New white and white two-color appearance and thin lightweight body, can not put down; Engineering documents, installation holes, communication connections can be fully compatible with old models, upgrade worry-free; Built-in power isolation, ** suppress power surge and abnormal ground current, enhance HMI field operation stability; EasyBuilder Pro configuration software, with flow block, installment, operation record, formula database and other new functions, easy to use.
Product parameter
Monitor: 7 "TFT
Resolution: 800*480
Brightness (cd/m²) : 400
Flash memory: 128MB
Memory: 128MB
Input power: 24±20%VDC
Power consumption: 450mA@24VDC
Resistance voltage: 500VAC (1min)
Overall dimensions (W×H×D) : 200.3×146.3×34mm
Hole size: 192×138mm
Weight: about 0.6kg
Installation mode: Panel installation
Operating environment temperature: 0° -- 50 ° C (32° -- 122°F)
Relative ambient humidity: 10% -- 90% (no condensation)
