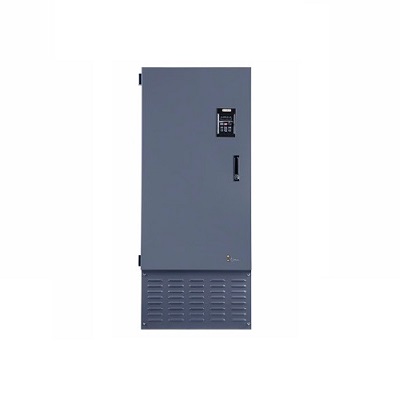

WEINVIEW inverter AR200iL-S digital input: 6 channels, input voltage range: 380V±15%, starting torque: G type machine: 0.5Hz/150%(SVC)P type machine: 0.5Hz/100%, control mode: V/F control; Open loop vector control (SVC); Torque control.
Application field
Lifting machinery, tension machinery, cutting and forging machinery, large inertia braking, metal processing, wood processing, rubber and plastic machinery, textile machinery, etc.
parameter
Control characteristic
Control mode: V/F control; Open loop vector control (SVC); Torque control
Starting torque: G-type machine: 0.5Hz/150%(SVC) P-type machine: 0.5Hz/100%
Speed range: 1:100(SVC)
Stability accuracy: ±0.5%(SVC)
Overload capacity: G model: 150% rated current 60s; 180% rated current 1s, P-type machine: 120% rated current 60s; 150% rated current 1s
Input/output
Input voltage range: 380V±15%
Input frequency range: 50/60Hz, fluctuation range: ±5%
Output voltage range: 0 -- rated input voltage
SVC:0——320Hz,V/F:0——1000Hz
Input/output terminal
Analog input: 2 channels,1 channel 0-10V,1 channel 0-10V/0-20mA
Digit input: 6 channels
Analog output: 1 channel (less than 7.5kW); 2 way (over 11kW)
Digital output: 1 channel
Relay output: 1 way (below 7.5kW); 2 way (over 11kW)
RS485 communication terminal: 1
Power supply: 2,1 10V,1 24V
Use environment
Altitude: less than 1000m, more than 1000ml when using 100m, 1% derating
Ambient temperature: -10℃ -- +40℃ If the ambient temperature is 40℃ -- 50℃, please reduce the amount of use)
Humidity: less than 95%RH, no condensation
Vibration: less than 5.9m/s2(0.6g)
Storage temperature: -40℃ -- +60℃
FAQ
1.Who are We?
Beijing Zhongping Technology Co., LTD., is a one-stop integrated service provider of intelligent manufacturing, belongs to the Gong Doctor Group, is a scientific research, design, marketing, technical services, industrial Internet, international import and export services as one of the science and technology companies.
2.What can you buy from us?
PLC, inverter, human-machine interface, hydraulic products, low-voltage power distribution, industrial robots and core components
3.Is the item in stock or need to be purchased from another supplier?
We have a large inventory of goods and have our own warehouse.
4.What advantages do we have over other suppliers?
Our company has a large amount of inventory and a number of warehouses, but also in the country's important industrial provinces and cities with offices and a number of overseas service points. To provide you with intelligent manufacturing one-stop comprehensive services, save efforts, labor and cost.
5.Can you provide 100% new original authentic products?
We only sell new original genuine, no renovation, no fake, only for the original factory original!
6.How long is the delivery time?
If there is a stock, it will take 2-3 working days to ship, if the quantity is large, it will take 5-7 working days after receiving the payment, if it is not a conventional model, it will take some time, we will inform you of the specific delivery time.
7.Is there technical support available?
Of course, we have a professional technical team that can help you solve technical problems.
8.How do we guarantee quality?
We have three processes to control the quality of goods.
1). Our engineers will inspect the production and quality control in the factory regularly.
2) Incoming materials shall be inspected by experienced purchasing engineers before they can be stored.
3). At least 2 people in the logistics department cross-check the goods to be sent before delivery.
9.Can you guarantee the safe and reliable delivery of your products?
Yes, we strictly adopt the international standard packing. We also use special packaging for dangerous goods, and refrigerated shipping for items with temperature requirements. Special item packaging and general cargo standard packaging requirements may incur additional costs.
10.How about the freight?
The cost depends on how you choose to get the goods. Express is usually the fastest but also the most expensive way. Sea freight is the best solution for large quantities of goods. The exact shipping cost depends on the purchase amount、quantity and weight of your order. Please feel free to contact us for more information.
