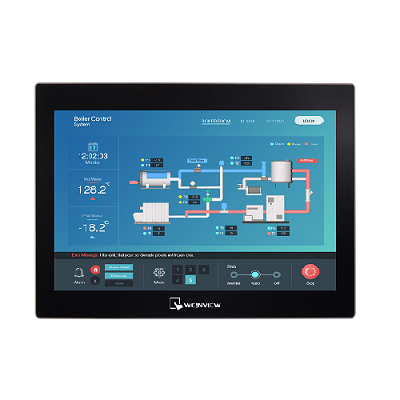

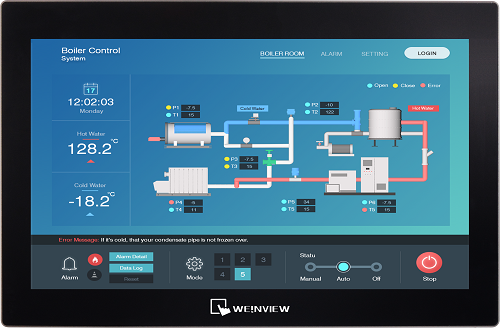

WEINVIEW human-machine interface cMT3169X contrast: 800:1, Flash memory (Flash) : 4 GB, COM1 and COM3 RS-485 2W support MPI 187.5K at the same time please choose one.
characteristic
oTP integrated touch panel solutions offer full graphic design, high resolution and high penetration optical performance
15.6' 1920 x 1080 FHD IPS LCD
Quad-core CPU with high-performance 3D processor
No fan cooling system
Built-in 4 GB flash storage and perpetual calendar
COM1 and COM3 RS-485 2W support MPI 187.5K at the same time
Built-in power isolation
NEMA4 / IP66 Front Panel protection level
parameter
display
Display: 15.6 "IPS
Resolution: 1920x1080
Brightness (cd/m2) : 300
Contrast ratio: 800:1
Backlight type: LED
Backlight life: >30,000 hours
Color: 16.2M
LCD can view Angle T/B/LIR) : 89/89/89/89
Point distance (mm) : 0.17925(H)×0.17925(VW)
Touch panel
Type: Reinforced glass capacitive touch panel
Hardness: 7H
memory
Flash memory: 4 GB
Memory (RAM) : 1 GB
Processor: Four-core RISC CPU
I/O port
SD card slot: None
USB Host: USB 2.0 x 1
USB Client: None
Ethernet interface: LAN 1:10/100/1000 Base-T x 1 LAN 2:10/100 Base-T x 1
Serial interface: Con.A:COM1 RS-485 2W/4W,COM3 RS-485 2W,CAN Bus* Con.B:COM1 RS-232 4W.COM3 RS-232 2W*
RS-485 Dual isolation protection: None
CAN Bus: Yes
HDMI: None
Sound output: Built-in mono speaker
Perpetual calendar: Built-in
Power supply
Input power :24±20%VDC
Power isolation: Built-in
Power consumption :1.3A@24VDC
Resistance voltage :500VAC(1min)
Insulation impedance: over 50MΩ at 500VDC
specification
PCB coating: Yes
Shell material: Front panel: engineering plastic, back cover: aluminum
Dimensions: 400×263x27.6mm
Opening size: 384X247mm
Weight: About 1.6kg
Installation method: Panel installation, VESA wall hanger 100×100mm
Operating environment
Protection level: NEMA4 /IP66 Compliant Front Panel
Storage environment temperature: -20° -- 60° C (-4° -- 140°F)
Operating environment temperature: 0° -- 50°C(32° -- 122F)
Relative ambient humidity: 10% -- 90%(non-condensing)
Vibration resistance: 10to25Hz(X,Y,Z axial 2G30 minutes)
certification
CE: CE marked
software
EasyBuilder Pro: Limited to simplified Chinese version of EasyBuilder Pro V6.06.02 or later
Weincloud: EasyAccess2.0(Optional), Dashboard*(Optional)
CODESYS® : Optional
