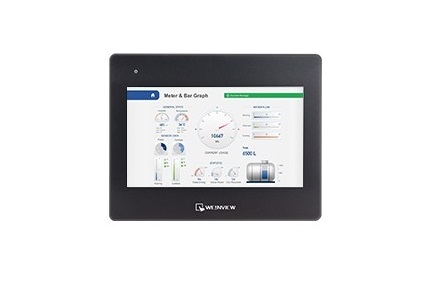

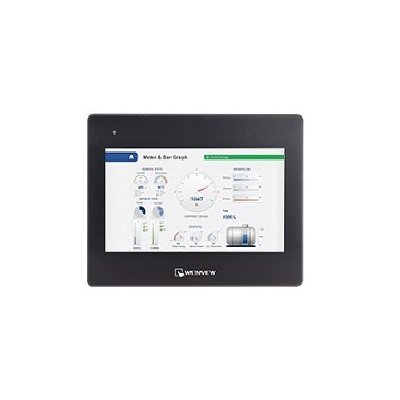

WEINVIEW interface cMT3105X Color: 16.7M, insulation impedance: over 50MΩ at 500VDC. Built-in 4GB flash memory and perpetual calendar, motherboard coating protection processing, can resist corrosion in harsh environment.
characteristic
10.1' 1024 x 600 TFT LCD, LED backlight
Built-in 4 GB flash memory and perpetual calendar
COM2 and COM3 RS-485 2W support MPI 187.5K, please choose the same time
CAN Bus supports CANopen, CAN Bus 2.0A/2.0B, SAE J1939
No fan cooling system
Motherboard coating protection treatment, can resist corrosion problems in harsh environment
Built-in power isolation
NEMA4 / IP66 Front Panel protection level
It can be paired with M02 WiFi expansion module to support wireless transmission
parameter
display
Monitor: 10.1 "TFT
Resolution: 1024X600
Brightness (cdm2) : 350
Contrast ratio: 500:1
Backlight type: LED
Backlight life: >50,000 hours
Color: 16.7M
LCD viewing Angle (T/B/LIR) : 70/70/80/80
Point distance (mm) : 0.2175(H)x0.2088V)
Touch panel
Type: four wire resistance type
Touch accuracy: length of action area (X)±2%, width (Y)±2%
memory
Flash memory: 4GB
Memory (RAM) : 1 GB
Processor: Four-core RISC CPU
I/O port
SD card slot: None
USB Host: USB 2.0x 1
USB Client: None
Ethernet interface: LAN 1:10/100/1000 Base-Tx 1 LAN 2:10/100 Base-Tx 1
Wireless transmission: M02WiFi expansion module (optional)
Serial interface: Con.A:COM2 RS-485 2W/4W,COM3 RS-485 2W,CAN Bus, Con.B:COM1 RS-232 4W.COM3 RS-232 2W*
RS-485 Dual isolation protection: None
CAN Bus: Yes
Voice output: None
Perpetual calendar: Built-in
Power supply
Input power: 24±20%VDC
Power isolation: Built-in
Power consumption: 1A@24VDC
Resistance voltage: 500VAC(1min)
Insulation impedance: over 50MΩ at 500VDC
specification
PCB coating: Yes
Shell material: engineering plastic
Overall size: 271×213×38mm
Hole size: 260x202mm
Weight: About 1.2kg
Installation method: Panel installation, VESA wall hanger 75x75mm
Protection class: UL Type 4X(indoor use only)/NEMA4/IP66 Compliant Front Panel
Operating environment
Storage environment temperature: -20° -- 60°C(-4° -- 140°F)
Operating environment temperature: 0° -- 50°C(32° -- 122F)
Relative ambient humidity: 10% -- 90%(non-condensing)
Vibration resistance: 10to25Hz(X,Y,Z axial 2G30 minutes)
certification
CE: CE marked
UL: cULus Listed
software
EasyBuilder Pro: Limited to simplified Chinese version of EasyBuilder Pro V6.06.01 or later
Weincloud: EasyAccess2.0(Optional), Dashboard*(Optional)
CODESYS® : Optional
