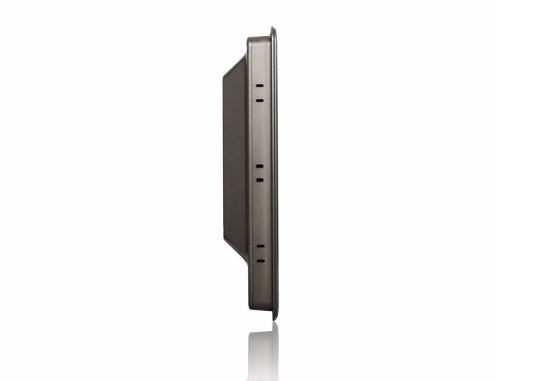

WEINVIEW human machine interface eMT3120A aluminum alloy case with new colors and fashion design; Video Input Ports support NTSC and PAL formats. 12.1' 1024x768 TFT Industrial grade LCD; Fanless cooling system; Built-in 256MB storage memory and calendar; NEMA4/IP66 panel protection level; Ceramic package high life LED backlight; SD card slots support SD/SDHC; Built-in power isolation guard; Com1 or Com3 RS485 2W supports MPI 187.5K. CAN bus device supports CANopen communication protocol; Com1 / Com3 RS485 and CAN bus isolator built in.
Product data
Monitor: 12.1 "TFT
Resolution: 1024 x 768
Brightness (cd/m²) : 500
Flash memory: 256MB
Memory: 256MB
Input power: 24±20%VDC
Power consumption: 850mA@24VDC
Resistance voltage: 500VAC (1min)
Overall dimension (W×H×D) : 317 × 244 × 46mm
Hole size: 305 × 231mm
Weight: About 2.1kg
Installation mode: Panel installation, VESA wall hanger 75*75mm
Operating environment temperature: 0° -- 50 ° C (32° -- 122°F)
Relative ambient humidity: 10% -- 90% (no condensation)
