advantage
12.1' 1024 x 768 wide viewing Angle LCD, LED backlight
No fan cooling system
Built-in 4 GB flash memory and perpetual calendar
MicroSD cards are used to expand storage capacity
Motherboard coating protection treatment in harsh environment, can prevent corrosion
COM2 and COM3 RS-485 2W support MPI 187.5K, please choose the same time
Built-in power isolation
NEMA4 / IP66 Front Panel protection level

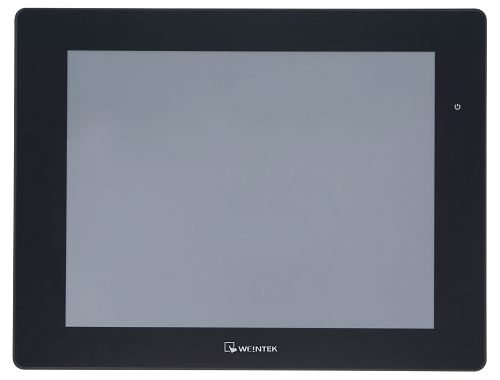

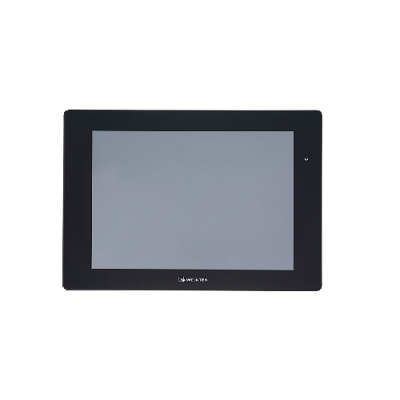

Product introduction
Monitor: 12.1 "Wide Viewing Angle (WVA)
Resolution :1024x768
Brightness (cd/m):500
Contrast ratio :1000:1
Backlight type ED
Backlight life :>30,000 hours
Color :16.7M
LCD viewing Angle (T/B/L/R):89/89/89/89
Point distance (mm):0.240(H)x0.240(V)
Type: four wire resistance type
Touch accuracy: length (X) 2%, width (Y) 2% of the action area
Flash memory :4 GB
Memory (RAM):1 GB
Processor: Four-core RISC CPU
SD card slot :Micro SD x1
USB Host:USB 2.0 x 1
USB Client: None
Ethernet interface AN 1:10/100/1000 Base-Tx 1,LAN 2: 10/100 Base-Tx 1
Serial interface :Con.A: COM2 RS-485 2W/4W,COM3 RS-485 2W,Con.B:COM1 RS-232 4W,COM3 RS-232 2W*
RS-485 Dual isolation protection: Yes
CAN Bus: None
Voice output: None
Perpetual calendar: Built-in
Input power: 24%20%VDC
Power isolation: Built-in
Power consumption: 1.2A@24VDC
Resistance voltage: 500VAC(1min)
Insulation impedance: over 50MQat 500VDC
PCB coating: Yes
Shell material: engineering plastic
Overall dimensions WxHxD: 317x 243 x41mm
Hole size: 305 x231 mm
Weight: About 1.7kg
Installation method: Panel mounting VESA wall mount 75x75mm
Protection level: NEMA4/IP66 Compliant Front Panel
Storage environment temperature: -20° -- 60°C(-4° -- 140°F)
Operating environment temperature: 0° -- 55°C(32° -- 131F)
Relative ambient humidity: 10% -- 90%(non-condensing)
Vibration resistance: 10 to 25Hz(X,YZ axial 2G 30 minutes)
CE: CE marked
EasyBuilder Pro: Limited to simplified Chinese version of EasyBuilder Pro V6.08.01 or later
Weincloud: EasyAccess 2.0(Optional),Dashboard(Optional)
CODESYS® : Optional
FAQ
1.Who are We?
Beijing Zhongping Technology Co., LTD., is a one-stop integrated service provider of intelligent manufacturing, belongs to the Gong Doctor Group, is a scientific research, design, marketing, technical services, industrial Internet, international import and export services as one of the science and technology companies.
2.What can you buy from us?
PLC, inverter, human-machine interface, hydraulic products, low-voltage power distribution, industrial robots and core components
3.Is the item in stock or need to be purchased from another supplier?
We have a large inventory of goods and have our own warehouse.
4.What advantages do we have over other suppliers?
Our company has a large amount of inventory and a number of warehouses, but also in the country's important industrial provinces and cities with offices and a number of overseas service points. To provide you with intelligent manufacturing one-stop comprehensive services, save efforts, labor and cost.
5.Can you provide 100% new original authentic products?
We only sell new original genuine, no renovation, no fake, only for the original factory original!
6.How long is the delivery time?
If there is a stock, it will take 2-3 working days to ship, if the quantity is large, it will take 5-7 working days after receiving the payment, if it is not a conventional model, it will take some time, we will inform you of the specific delivery time.
7.Is there technical support available?
Of course, we have a professional technical team that can help you solve technical problems.
8.How do we guarantee quality?
We have three processes to control the quality of goods.
1). Our engineers will inspect the production and quality control in the factory regularly.
2) Incoming materials shall be inspected by experienced purchasing engineers before they can be stored.
3). At least 2 people in the logistics department cross-check the goods to be sent before delivery.
9.Can you guarantee the safe and reliable delivery of your products?
Yes, we strictly adopt the international standard packing. We also use special packaging for dangerous goods, and refrigerated shipping for items with temperature requirements. Special item packaging and general cargo standard packaging requirements may incur additional costs.
10.How about the freight?
The cost depends on how you choose to get the goods. Express is usually the fastest but also the most expensive way. Sea freight is the best solution for large quantities of goods. The exact shipping cost depends on the purchase amount、quantity and weight of your order. Please feel free to contact us for more information.
