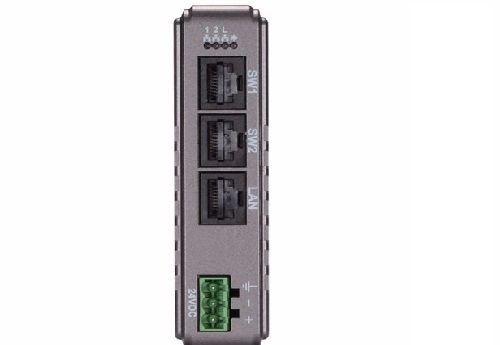

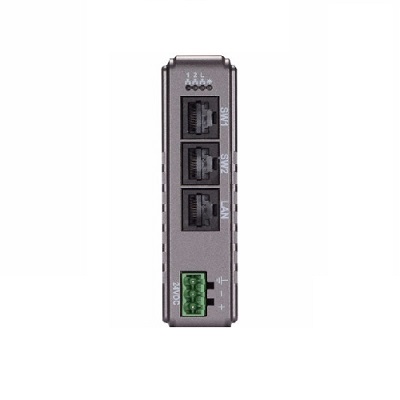

WEINVIEW man-machine interface cMT-G04 Protection grade: IP20, withstand voltage: 500VAC(1 minute), built-in 256MB storage memory, wide input voltage 10.5 -- 28VDC.
characteristic
Built-in Ethernet switch, can save wiring cost, SW1 and SW2 easy to connect existing HMI and PLC, no additional Ethernet switch is required. A LAN connects to an office or factory network
OPC UA and MQTT are supported
The MODBUS TCP/IP Gateway is supported
Thin lightweight design and can be fixed using aluminum rails
No fan cooling system
Built-in 256MB storage memory
Built-in power isolation
Wide input voltage 10.5 -- 28VDC
parameter
memory
Flash memory: 256MB
Memory (RAM) : 256MB
Processor: 32-bit RISC 528MHz
I/O port
SD card slot: None
USB Host: None
USB Client: None
Ethernet interfaces: LAN:10/100 Base-T x1, SW1,SW2:10/100 Base-T x1(2 port Ethernet switch)
Perpetual calendar: Built-in
Power supply
Input power supply: 10.5 -- 28VDC
Power isolation: Built-in
Power consumption: 270mA@12VDC; 150mA@24VDC
Resistance voltage: 500VAC(1min)
Insulation impedance: over 50MΩ at 500VDC
Anti-vibration: 10to25Hz(X,Y,Z axial 2G30 minutes)
specification
PCB coating: Yes
Shell material: engineering plastic
Dimensions WxHxD: 27x109x81mm
Weight: about 0.14kg
Installation: 35 mm DIN rail fixed with aluminum rail
Operating environment
Protection level: IP20
Storage environment temperature: -20° C -- 60° C (←4° C -- 140°F)
Operating environment temperature: 0° -- 50C(32° -- 122F)
Relative ambient humidity: 10% -- 90%(non-condensing)
certification
CE: CE marked
UL: cULus Listed
software
EasyBuilder Pro V6.01.02 or later
EasyAccess2.0(optional)
