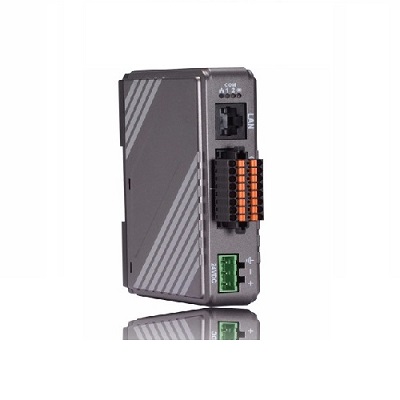

cMT-G03 Power isolation: built-in, input power: 10.5 -- 28VDC, support MODBUS TCP/IP Gateway, thin lightweight design and can be fixed by aluminum rail.
characteristic
Support serial interface bridge, no need to modify the existing PLC and HMI program, that is, can upgrade the existing serial interface controller or touch screen
You can upgrade an existing serial interface controller or touch screen
There is a penetrating communication between COM1 and COM2
OPC UA and MQTT are supported
The MODBUS TCP/IP Gateway is supported
Thin lightweight design and can be fixed using aluminum rails
No fan cooling system
Built-in 256 MB storage memory
Built-in power isolation
Wide input voltage range 10.5 -- 28VDC
parameter
memory
Flash memory: 256MB
Memory (RAM) : 256MB
Processor: 32-bit RISC 528MHz
I/O port
SD card slot: None
USB Host: None
USB Client: None
Ethernet interface: 10/100 Base-T x 1
Serial interface: C0M1:RS-2322W,RS-4852W/4W, COM2:RS-2322W,RS-4852W/4W
Perpetual calendar: Built-in
Power supply
Input power supply: 10.5 -- 28VDC
Power isolation: Built-in
Power consumption: 300mA@12VDC; 150mA@24VDC
Resistance voltage: 500VAC(1min)
Insulation impedance: over 50MΩat500VDC
Anti-vibration: 10to25Hz(X,Y,Z axial 2G30 minutes)
specification
PCB coating: Yes
Shell material: engineering plastic
Dimensions WxHxD: 27x109x81mm
Weight: about 0.14kg
Installation: 35 mm DIN rail fixed with aluminum rail
Operating environment
Protection level: IP20
Storage environment temperature: -20° -- 60° C (-4° -- 140°F)
Operating environment temperature: 0° -- 50°C(32° -- 122°F)
Relative ambient humidity: 10% -- 90%(non-condensing)
certification
CE: complies with the CE certification standard
UL: cULus Listed
software
EasyBuilder Pro V6.01.02 or later
EasyAccess2.0(optional)
