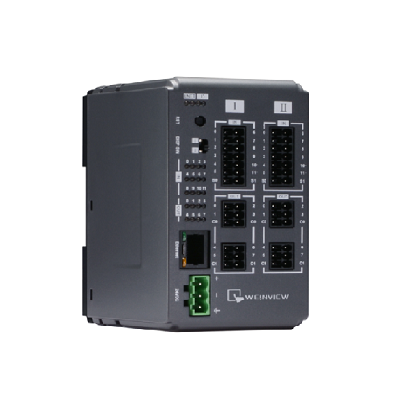

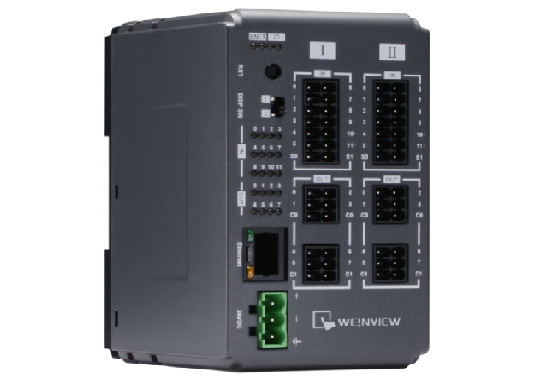

WEINVIEW IO module iR-ETN40R Protection grade: IP20, consumption current: 520mA 5VDC, data transmission rate :10/100Mbps, output voltage: 250VAC/30VDC, output voltage: 250VAC/30VDC.
parameter
Communication interface specification
Port number: 1
Data transfer rate :10/100Mbps
Data transmission media :4x2 twisted-pair copper wire; category3(10Mbps),category5(100Mbps)
Distance between stations :100m(the longest distance between the exchanger and the coupler, or between the coupler and the coupler)
Communication protocol :Modbus TCP Server,EtherNet/IP adapter
TCP/IP** Maximum number of connections :8 connections
Network isolation: Yes
Digital output
Total points: 16
Output logic: Relay
Output voltage: 250VAC/30VDC
Output current: 2A/ channel (Max8A)
Reaction speed: 10ms
Isolation: Yes, relay isolation
Digital input
Total points: 24
Isolation: Yes, optical coupling isolation
General input point
Count: 20 points
Input logic: Sink or Source
Logic 1 Voltage level: 15 -- 28VDC
Logical 0 voltage level: 0 -- 5 VDC
Reaction: OFF->ON: 5ms
Speed: ON->OFF: 1ms
Input impedance: 5.6KΩ
High speed input point
Count: 4 points
Input logic: drain (Sink)
Logic 1 Voltage level: 15 -- 28VDC
Logical 0 voltage level: 0 -- 5 VDC
Maximum input frequency: 20KHz
Input impedance: 3ω
Expansion module
Number of connections: Based on internal bus power consumption (see Power consumption)
Digital input point: MaX.224(including built-in 24 points, 248 points can be input)
Digital output point: Max.112(including built-in 16 points, ** Max can support 128 points output)
Analog input channel: Max.64
Analog output channel: Max.64
Indicator light
ENET
Green: indicates the device status
Red light: indicates an incorrect device indicator
IO
Green: indicates the extended status
Red light: Extended error indication
Model specification
Power supply
Input power: 24VDC(-15%/+20%)
Nominal consumption current: Nominal 255mA 24VDC
Internal bus provides current: Max 2A 5VDC
Consumption current: 520mA 5VDC
Power isolation: Yes
Spare fuse: ≤1.6A self-restoring fuse
specification
PCB coating: Yes
Case material: industrial plastic
Appearance NxHxD: 64x109x81mm
Weight: about 0.27kg
Installation: 35mm aluminum rail fixed
Operating environment
Protection level: IP20
Storage environment temperature: -20° -- 70° C (-4° -- 158°F)
Operating environment temperature: -10°C to 60°C
Relative ambient humidity: 10% -- 90%(non-condensing)
certification
Electromagnetic interference tolerance
Conform to
EN55032:2012+AC:2013,Class A
EN61000-6-4:2007+A1:2011
EN55024:2010+A1:2015
EN61000-6-2:2005
