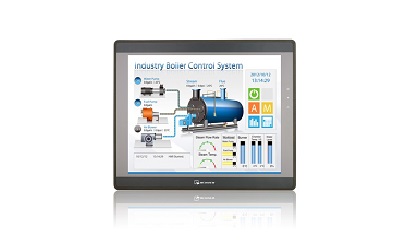

WEINVIEW interface MT8150iE2 Shell material: aluminum, insulation impedance: more than 50M Ω at500VDC, COM1 / COM3 RS485 built-in isolator, support USB Host and USB Client.
characteristic
15' 1024x768 VA LCD, LED backlight
No fan cooling system
Built-in 256MB flash memory
USB Host and USB Client are supported
SD card is supported to expand storage capacity
COM1 / COM3 RS485 Built-in isolator
COM1 and COM3 RS485 2W support MPI 187.5K at the same time
Built-in power isolator
NEMA4/IP65 Front Panel protection level
parameter
display
Monitor: 15 "wide Viewing Angle (WVA)
Resolution: 1024 x 768
Brightness (cd/m2) : 350
Contrast ratio: 2500:1
Backlight type: LED
Backlight life: >70,000 hours
Display color: 16.2M
LCD viewing Angle (T/B/LIR) : 88/88/88/88
Point distance (mm) : 0.297(H)x0.297(V)
Touch panel
Type: four wire resistance type
Touch accuracy: length of action area (X)±2%, width (Y)±2%
memory
Flash memory (MB) : 256
Memory (MB) : 256
Processor: 32-bit RISC 600MHz
I/O port
SD card slot: SD/SDHC
USB Host: USB2.0 x 1
USB Client: USB 2.0x 1
Ethernet: 10/100 Base-Tx 1
Serial interface: COM1:RS-232 4W RS-485 2W/4W COM3:RS-485 2W
RS-485 Dual isolation protection: Yes
Perpetual calendar: Built-in
Power supply
Input power supply: 24±20%VDC built-in power isolator
Power consumption: 1.2A@24VDC
Power isolation: Built-in
Resistance voltage: 500VAC(1min)
Insulation impedance: over 50M Ω at500VDC
specification
PCB coating: Yes
Case material: aluminum
Dimensions NxHxD: 366x293x57mm
Hole size: 352x279mm
Weight: about 2.82kg
Installation mode: Panel installation
Operating environment
Protection level: 1P65
Storage environment temperature: -20° -- 60°C(-4° -- 140°F)
Operating environment temperature: 0° -- 50°C(32° -- 122°F)
Relative ambient humidity: 10% -- 90%(non-condensing)
Anti-vibration: 10to25Hz(X,Y,Z axial 2G30 minutes)
certification
CE: CE marked
software
EasyBuilder Pro: V6.03.02 or later
Weincloud: EasyAccess2.0(Optional)
