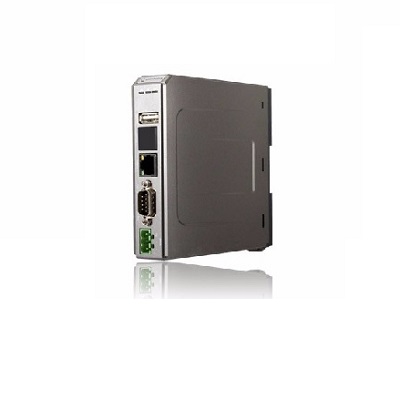

WEINVIEW man-machine interface cMT-SVR-100PCB coating: Yes, the external size: 27×130×115mm, users can use iPad or cMT-iV5 anytime and anywhere to monitor the operation of the machine on site.
characteristic
cMT-SVR focuses on communication and data computing; The iPad or the cMT-iV5 are all about graphics and collaboration
cMT-SVR box shape, rail mounted, reliable for a variety of applications
Users can use the iPad or cMT-iV5 to monitor the operation status of the on-site machine anytime and anywhere
One iPad can connect to ** 3 CMT-SVRs at the same time; ** Three more ipads can be connected to a cMT-SVR at the same time
Both iPad and cMT-iV5 can display high-resolution fine pictures and capacitance-sensing touch control for a pleasant experience
The cMT-SVR has a large capacity to store a variety of data sampling, alarm records and formulations
More than 250 communication drivers are available to connect most controllers
SD card is supported to expand storage capacity
Supports MPI 187.5K
Built-in power isolator
parameter
memory
Flash memory: 256MB
Memory (RAM) : 256MB
Processor: 32-bit RISC 600MHz
I/O port
SD card slot: SD/SDHC
USB Host: USB 2.0 x 1
USB Client: None
Serial interface: COM1:RS-232, COM2:RS-485 2W/4W, COM3:RS-485 2W
RS-485 Dual isolation protection: None
CAN Bus: None
HDMI: None
Voice output: None
Perpetual calendar: Built-in
Power supply
Input power: 24±20%VDC
Power isolation: Built-in
Power consumption: 230mA@24VDC
Resistance voltage: 500VAC(1min)
Insulation impedance: over 50M Ω at500VDC
Anti-vibration: 10to25Hz(X,Y,Z axial 2G30 minutes)
specification
PCB coating: Yes
Shell material: engineering plastic
Dimensions: 27×130×115mm
Weight: about 0.18kg
Installation: 35 mm DIN rail fixed with aluminum rail
Operating environment
Protection level: IP20
Storage environment temperature :-20° -- 70°C(-4° -- 158F)
Operating environment temperature: -20° -- 55°C(-4° -- 131F)
Relative ambient humidity :10% -- 90%(non-condensing)
certification
CE: CE marked
UL: CULus Listed
software
EasyBuilder Pro: Limited to simplified Chinese version of EasyBuilder Pro V4.00.01 or later
Weincloud: EasyAccess2.0(Optional)
