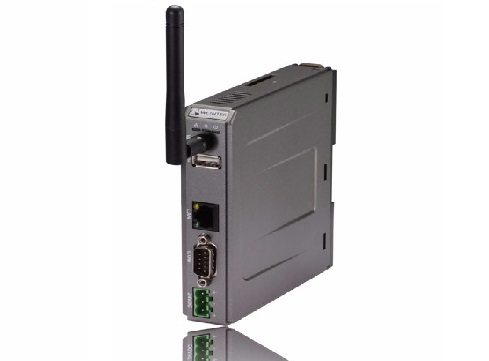

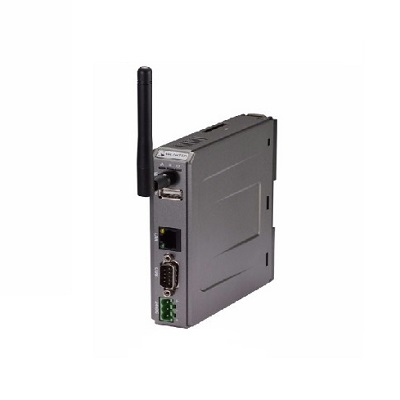

WEINVIEW interface cMT-SVR-200 Weight: about 0.18kg, installation :35 mm DIN rail aluminum rail, built-in storage memory 256 MB,Wi-Fi 802.11b /g/n wireless network, wide input voltage range 10.5 -- 28VDC.
characteristic
Supports display to cMT Viewer clients
Thin lightweight design and can be fixed using aluminum rails
No fan cooling system
No fan cooling system
Built-in 256 MB storage memory
SD card is supported to expand storage capacity
USB Host port is supported
Support for Gigabit Ethernet ports
E-mail is supported
Supports MPI 187.5K
Built-in power isolation
Wi-Fi 802.11b /g/n wireless network
Wide input voltage range 10.5 -- 28VDC
parameter
memory
Flash memory: 256MB
Memory (RAM) : 256MB
Processor: 32-bit RISC 600MHz
I/O interface
SD card slot: SD/SDHC
USB Host: USB 2.0x 1
USB Client: None
Ethernet :10/100/1000Base-Tx2
wifi: IEEE 802.11b /g/n, 802.11b:max18.01dBm, 802.11g:max11.02dBm, 802.11n:max12.20dBm
Perpetual calendar: Built-in
Power supply
Input power supply: 10.5 -- 28VDC
Power isolation: Built-in
Power consumption: 1000mA@12VDC; 450mA@24VDC
Resistance voltage: 500VAC(1min)
Insulation impedance: over 50MΩ at 500VDC
Vibration resistance: 10to25Hz(X,Y,Z axial 2G30 minutes)
specification
PCB coating: Yes
Shell material: engineering plastic
Dimensions :27×130×115mm
Weight: about 0.18kg
Installation :35 mm DIN rail fixed with aluminum rail
Operating environment
Protection level :IP20
Storage environment temperature :-20° -- 70°C(-4° -- 158F)
Operating environment temperature :-10° -- 55°C(14° -- 131F)
Relative ambient humidity :10% -- 90%(non-condensing)
certification
CE:CE marked
UL:CULus Listed
software
EasyBuilder Pro:V6.02.02 or later
Weincloud:cMT-SVR-200:EasyAccess2.0(Optional)cMT-SVR-202:EasyAccess2.0(Built-in)
