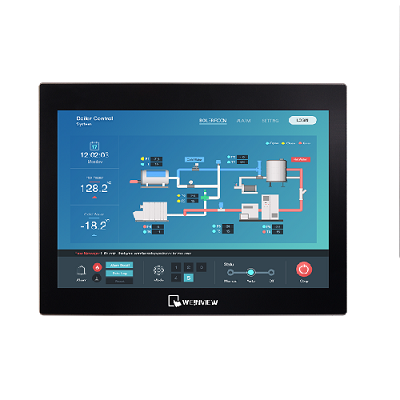

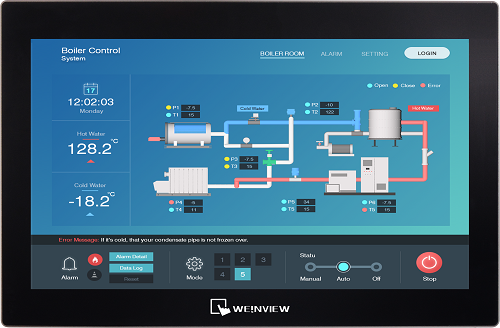

WEINVIEW human-machine interface cMT2167X (cMT3160X) Hardness: 7H, display: 15.6 "wide viewing Angle (WVA), oTP integrated touch panel solution with full planar design, high resolution and high penetration optical performance.
characteristic
oTP integrated touch panel solutions offer full graphic design, high resolution and high penetration optical performance
15.6' 1920 x 1080 FHD IPS LCD
Four-core Cortex-A17 CPU paired with a high-performance 3D processor
No fan cooling system
Built-in 4 GB storage memory and perpetual calendar
Built-in power isolation
NEMA4 / IP66 Front Panel protection level
parameter
display
Monitor: 15.6 "Wide Viewing Angle (WVA)
Resolution: 1920*1080
Brightness (cd/m2) : 300
Contrast ratio: 800:1
Backlight type: LED
Backlight life: >30,000 hours
Color: 16.2M
LCD viewing Angle (T/B/L/R) : 89/89/89/89
Point distance (mm) : 0.17925(H)x 0.17925(V)
Touch panel
Type: Reinforced glass capacitive touch panel
Hardness: 7H
memory
Flash memory: 4 GB
Memory (RAM) : 1GB
Processor: Four-core RISC CPU
I/O interface
SD card slot: None
USB Host: USB2.0 x 1
USB client: None
Ethernet interface: 10/100 Base-T x 1
Serial interface: Con.A:COM1 RS-485 2W/4W,COM3 RS-485 2W, Con.B:COM1 RS-232 4W,COM3 RS-232 2W*, MPI not supported
RS-485 Dual isolation protection: None
CAN Bus: None
HDMI: None
Sound output: Built-in mono speaker
Perpetual calendar: Built-in
Power supply
Input power: 24%20%VDC
Power isolation: Built-in
Power consumption: 0.9A@24VDC
Resistance voltage: 500VAC(1min)
Insulation impedance: over 50MQat500VDC
specification
PCB coating: Yes
Shell material: Front panel: engineering plastic, back cover: aluminum
Dimensions: 400x263x27.6mm
Opening size: 384X247mm
Weight: About 1.6kg
Installation mode: Panel installation, VESA wall hanger 100x100mm
Operating environment
Protection level: NEMA4 /IP66 Compliant Front Panel
Storage environment temperature: -20° -- 60C(-4° -- 140°F)
Operating environment temperature: 0° -- 50C(32° -- 122F)
Relative ambient humidity: 10% -- 90%(non-condensing)
Vibration resistance: 10to25Hz(X,Y,Z axial 2G30 minutes)
certification
CE: CE marked
software
EasyBuilder Pro: Limited to simplified Chinese version of EasyBuilder Pro V6.06.02 or later
Weincloud: EasyAccess2.0(Optional), Dashboard*(Optional)
