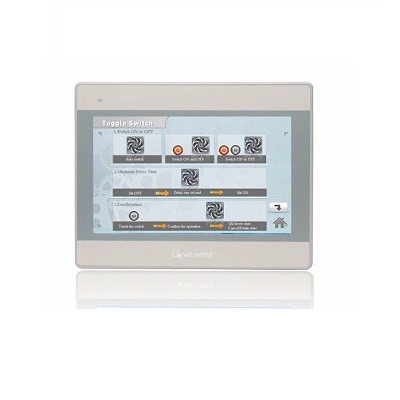

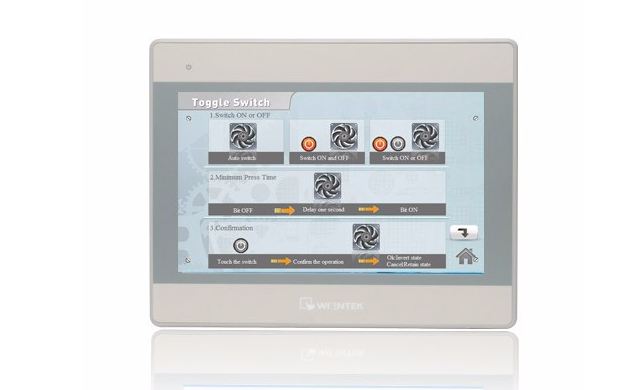

WEINVIEW interface MT8121iE2 thin lightweight design body; 12.1' 1024x768 TFT LCD, LED backlight; Motherboard coating protection treatment in harsh environment, can prevent corrosion; Com1 / Com3 RS485 built-in isolator, double isolation protection design in complex grounding environment, can ensure stable operation; Fanless cooling system; COM1 and COM3 [RS485]2W support MPI 187.5K at the same time please choose one; NEMA4/IP65 Front Panel protection level.
Product data
Monitor: 12.1 "TFT
Resolution: 1024 x 768
Brightness (cd/m²) : 500
Flash memory: 256MB
Memory: 256MB
Input power: 24±20%VDC
Power consumption: 1.5A@24VDC
Resistance voltage: 500VAC (1min)
Overall dimension (W×H×D) : 317 × 243 × 41mm
Hole size: 305 × 231mm
Weight: About 1.7kg
Installation mode: Panel installation, VESA wall hanger 75*75mm
Operating environment temperature: 0° -- 50 ° C (32° -- 122°F)
Relative ambient humidity: 10% -- 90% (non-condensing)
