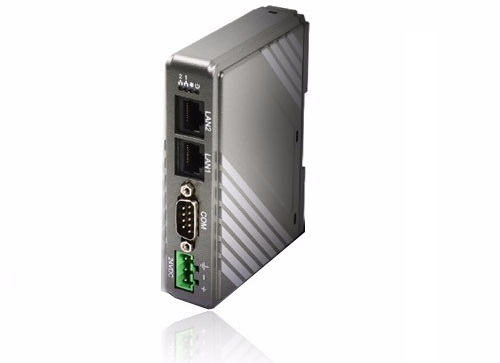

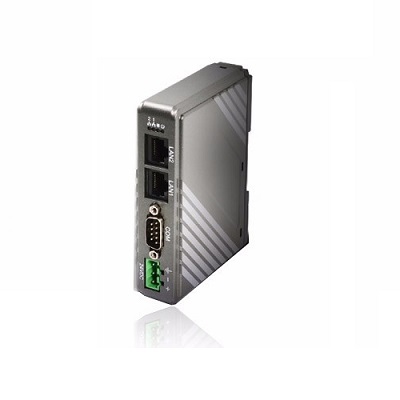

WEINVIEW man-machine interface cMT-G01 Weight: about 0.14kg, input power: 24±20%VDC, support MODBUS TCP/IP gate function, thin lightweight design and can be fixed by aluminum rail.
characteristic
OPC UA is supported
MQTT support
Supports the MODBUS TCP/IP gateway function
Thin lightweight design and can be fixed using aluminum rails
No fan cooling system
Built-in 256 MB flash memory
Supports MPI 187.5K
Built-in power isolation
parameter
memory
Flash memory: 256MB
Memory (RAM) : 256MB
Processor: 32-bit RISC 600MHz
I/O port
SD card slot: None
USB Host: None
USB Client: None
Ethernet interface (LAN1) : 10/100/1000Base-Tx1
Ethernet interface (LAN2) : 10/100 Base-Tx 1
Serial interface: COM1:RS-232 2W, COM2:RS-485 2W/4W, C0M3:RS-4852W
RS-485 Dual isolation protection: None
CAN Bus: None
HDMI: None
Voice output: None
Image input: None
Perpetual calendar: Built-in
Power supply
Input power: 24±20%VDC
Power isolation: Built-in
Power consumption: 230mA@24VDC
Resistance voltage: 500VAC(1min)
Insulation impedance: over 50MΩat500VDC
Anti-vibration: 10to25Hz(instrument, Y,Z axis 2G30 minutes)
specification
PCB coating: Yes
Shell material: engineering plastic
Dimensions NxHxD: 27 x 109x81mm
Weight: about 0.14kg
Installation: 35 mm DIN rail fixed with aluminum rail
Operating environment
Protection level: 1P20
Storage environment temperature: -20° -- 60° C (-4° -- 140°F)
Operating environment temperature: 0° -- 50 ° C (32° -- 122F)
Relative ambient humidity: 10% -- 90%(non-condensing)
certification
CE: complies with the CE certification standard
UL: cULus Listed
software
EasyBuilder Pro V5.06.01 or later
EasyAccess2.0(optional)
