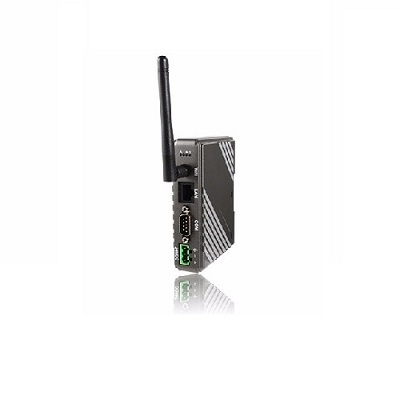

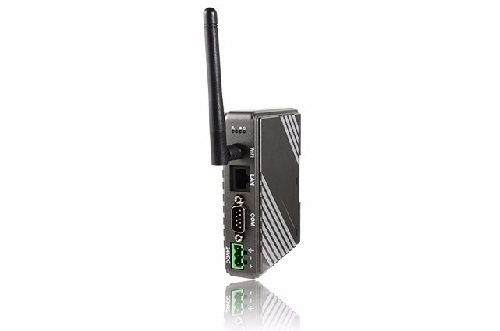

cMT-G02 Power isolation: Built-in, input power: 10.5 -- 28VDC, built-in 256 MB flash memory, WiFi 802.11b /g/n wireless network.
characteristic
OPC UA is supported
MQTT support
Supports the MODBUS TCP/IP gateway function
Thin lightweight design and can be fixed using aluminum rails
No fan cooling system
Built-in 256 MB flash memory
Supports MPI 187.5K
WiFi 802.11b /g/n wireless network
Built-in power isolation
Wide input voltage range 10.5 -- 28VDC
parameter
memory
Flash memory: 256MB
Memory (RAM) : 256MB
Processor: 32-bit RISC 600MHz
I/O port
SD card slot: None
USB Host: None
USB Client: None
Ethernet interface: 10/100 Base-T x 1
WIFI: IEEE 802.11 b/g/n, 802.11 b: max15.88 dBm, 802.11 g: max11.92 dBm, 802.11 n: max11.28 dBm
Serial interface: COM1:RS-232 2W, C0M2:RS-4852W/4W, C0M3:RS-4852W
RS-485 Dual isolation protection: None
CAN Bus: None
HDMI: None
Voice output: None
Image input: None
Perpetual calendar: Built-in
Power supply
Input power supply: 10.5 -- 28VDC
Power isolation: Built-in
Power consumption: 230mA@12VDC; 115mA@24VDC
Resistance voltage: 500VAC(1min)
Insulation impedance: over 50MΩat500VDC
Anti-vibration: 10to25Hz(instrument, Y,Z axis 2G30 minutes)
specification
PCB coating: Yes
Shell material: engineering plastic
Dimensions NxHxD: 27x10981mm
Weight: about 0.14kg
Installation: 35 mm DIN rail fixed with aluminum rail
Operating environment
Protection level: IP20
Storage environment temperature: -20° -- 60 ° C (-4° -- 140°F)
Operating environment temperature: 0° -- 50°C(32° -- 122F)
Relative ambient humidity: 10% -- 90%(non-condensing)
certification
CE: complies with the CE certification standard
UL: cULus Listed
software
EasyBuilder Pro V6.00.01 or later
EasyAccess2.0(optional)
